FLEXNET BARB CONNECTOR ASSEMBLY INSTRUCTIONS
2

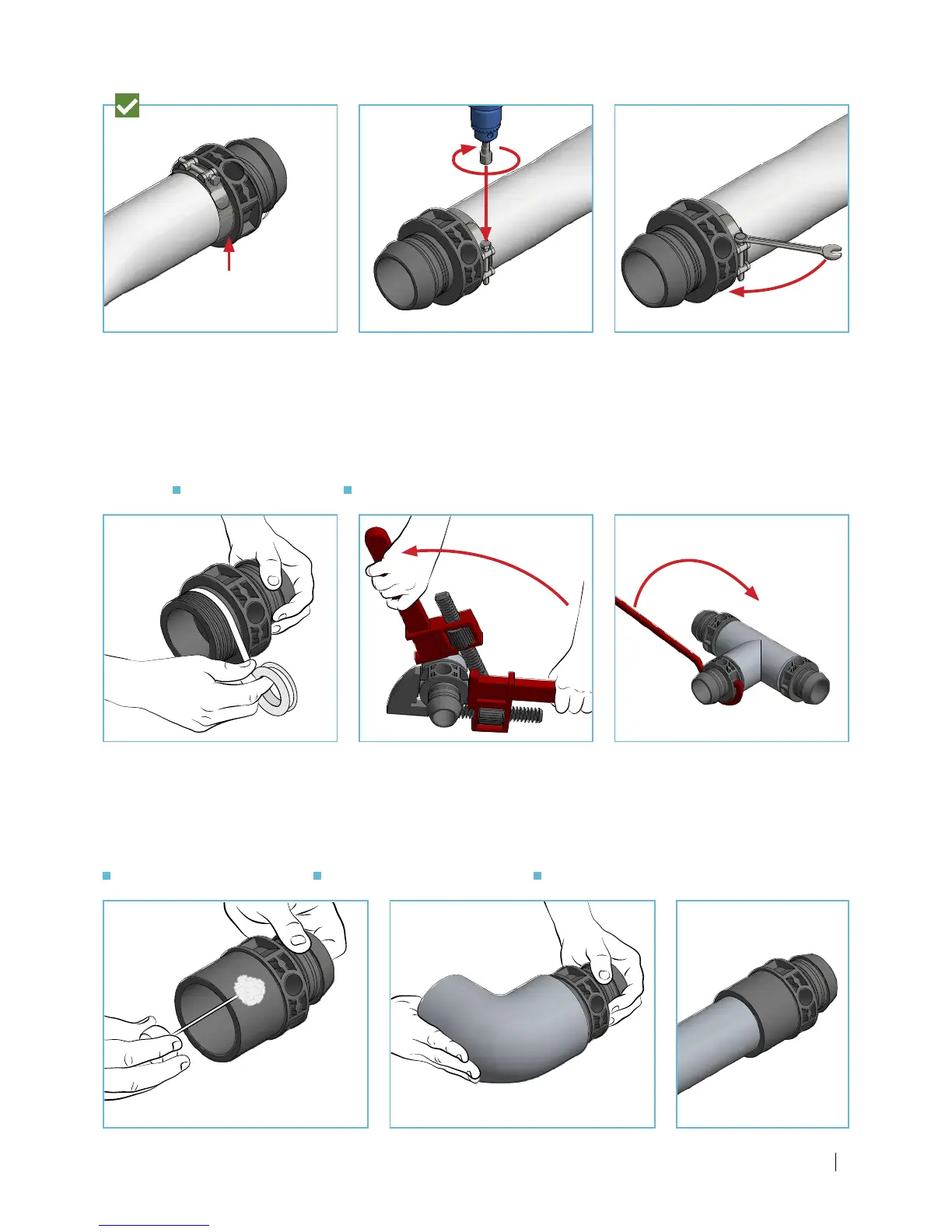

Connecting to fittings
Connecting a threaded adaptor
Apply teflon tape on the threads for sealing (
Fig. 7
).
Use a suitable key/wrench to tighten the thread (
Fig. 8 and 9
).
Key sizes
2“
Key size: 16-40 mm
3“
and
4”
Key size: 40-75 mm
6. Tighten forcefully
(
Fig. 6
).
Connecting a PVC cement adaptor
Glue the adaptor according to the PVC cement manufacturer's instructions. Netafim™ recommends using a
cleaning primer to ensure proper welding.
Sizes of PVC adaptors:
2“
ISO 63/50, ASTM 2”/1.5”
3“
- ISO 90/75, ASTM 3”/2.5”
4“
- Male ISO 110, ASTM Spigot 4”
Fig. 7 Fig. 8 Fig. 9
No gap
Fig. 4 Fig. 5 Fig. 6
Fig. 10 Fig. 11 Fig. 12
