FLEXNET BARB CONNECTOR ASSEMBLY INSTRUCTIONS
6
3.
Wet the connector and insert it into the pipe.
4.
Make sure that the pipe is
inserted all the way
to the connector’s shoulder.
5.
Make sure that one metal clamp is exactly above the rubber seal and the other exactly above the ribbed rim
(
Fig. 4
).
Fig. 1 Fig. 2
Connecting a high pressure barb connector
Size 6"; 8"

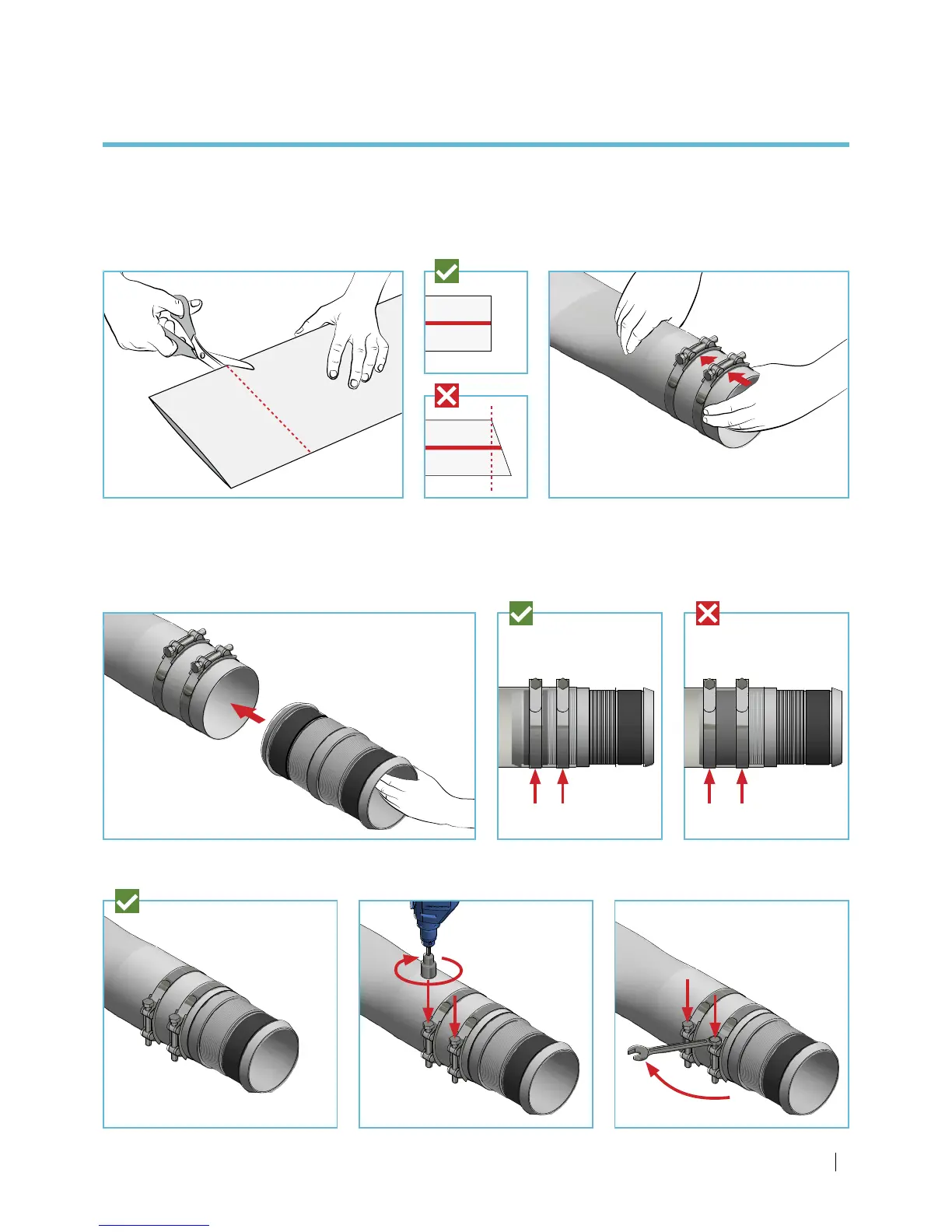

1.
Strictly ensure the pipe is
cut perfectly straight
during the cutting operation
(
Fig. 1
).
When reconnecting a pipe to the connector, cut at least 5.0 cm (2") off the pipe end.
2.
Insert the 2 metal clamps onto the pipe
(
Fig. 2
).
6. Tighten
both metal clamps
forcefully
(
Fig. 7 and 8
).
Fig. 6 Fig. 7
Fig. 4 Fig. 5
Fig. 8
Fig. 3
