FLEXNET BARB CONNECTOR ASSEMBLY INSTRUCTIONS
5
Connecting to PVC fittings
Sizes of PVC adaptors:
ASTM D-2466: 6"; 8"; 10"; 12" ISO 1452: 160 mm; 200 mm; 250 mm; 315 mm.
Connecting a PVC cement adaptor
Glue the adaptor according to the PVC cement manufacturer's instructions (

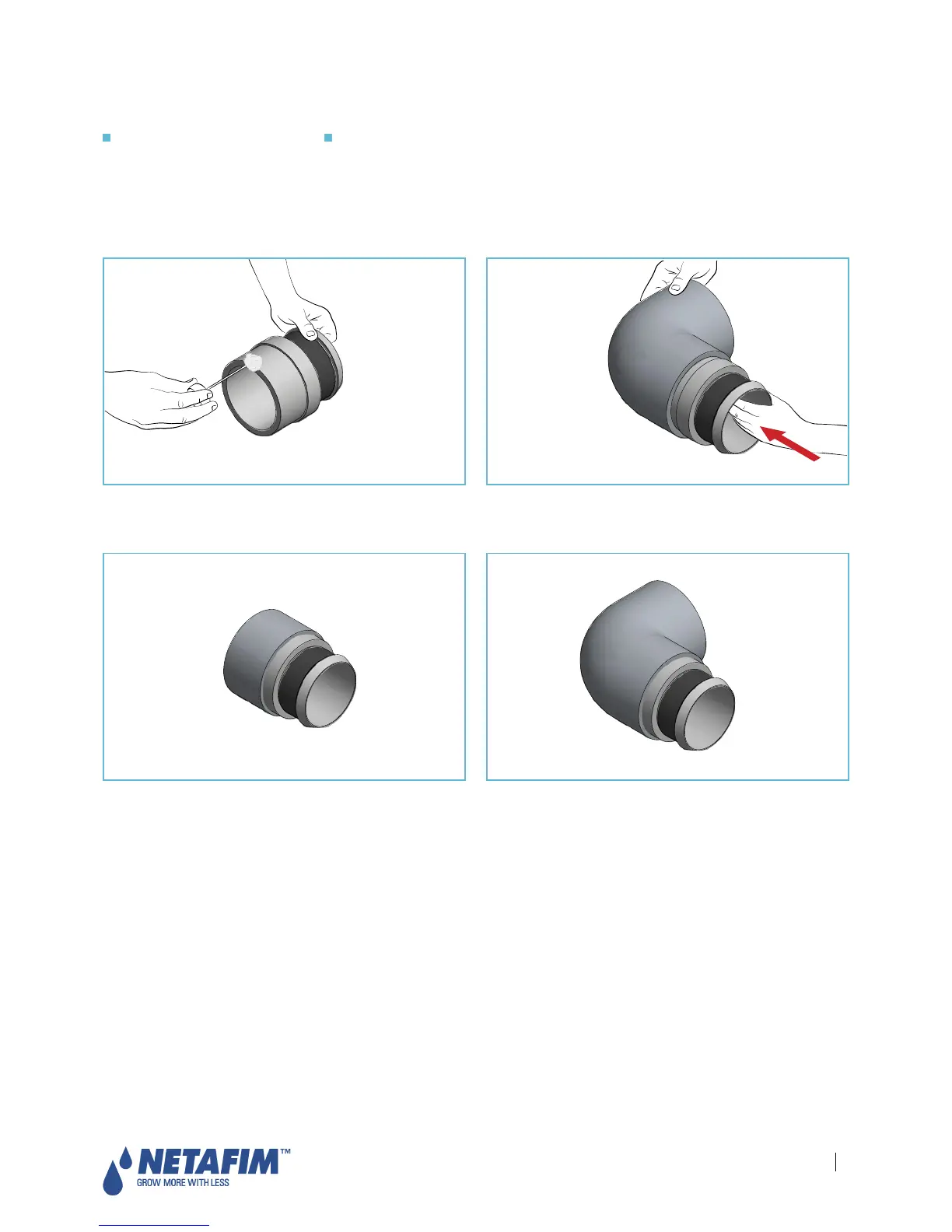

Fig. 9 and 10
).
Netafim™ recommends using a cleaning primer to ensure proper welding.
Coupling options
End cap Elbow
Fig. 11 Fig. 12
Fig. 9 Fig. 10
