Netafim FLEXNET User Manual

FLEXNET BARB CONNECTOR ASSEMBLY INSTRUCTIONS 4
3. Wet the connector and insert it into the pipe.
4. Make sure that the pipe is inserted all the way to the connector’s shoulder.
5. Make sure that the metal clamp is exactly above the rubber seal ( Fig. 4 ).
6. Tighten forcefully ( Fig. 8 ).
No gap
Connecting a barb connector. Size 6"; 8"; 10"; 12"
1. Strictly ensure the pipe is cut perfectly straight during the cutting operation.
When reconnecting a pipe to the connector, cut at least 1.5 cm (5/8") off the pipe end.
2. Insert the metal clamp onto the pipe.

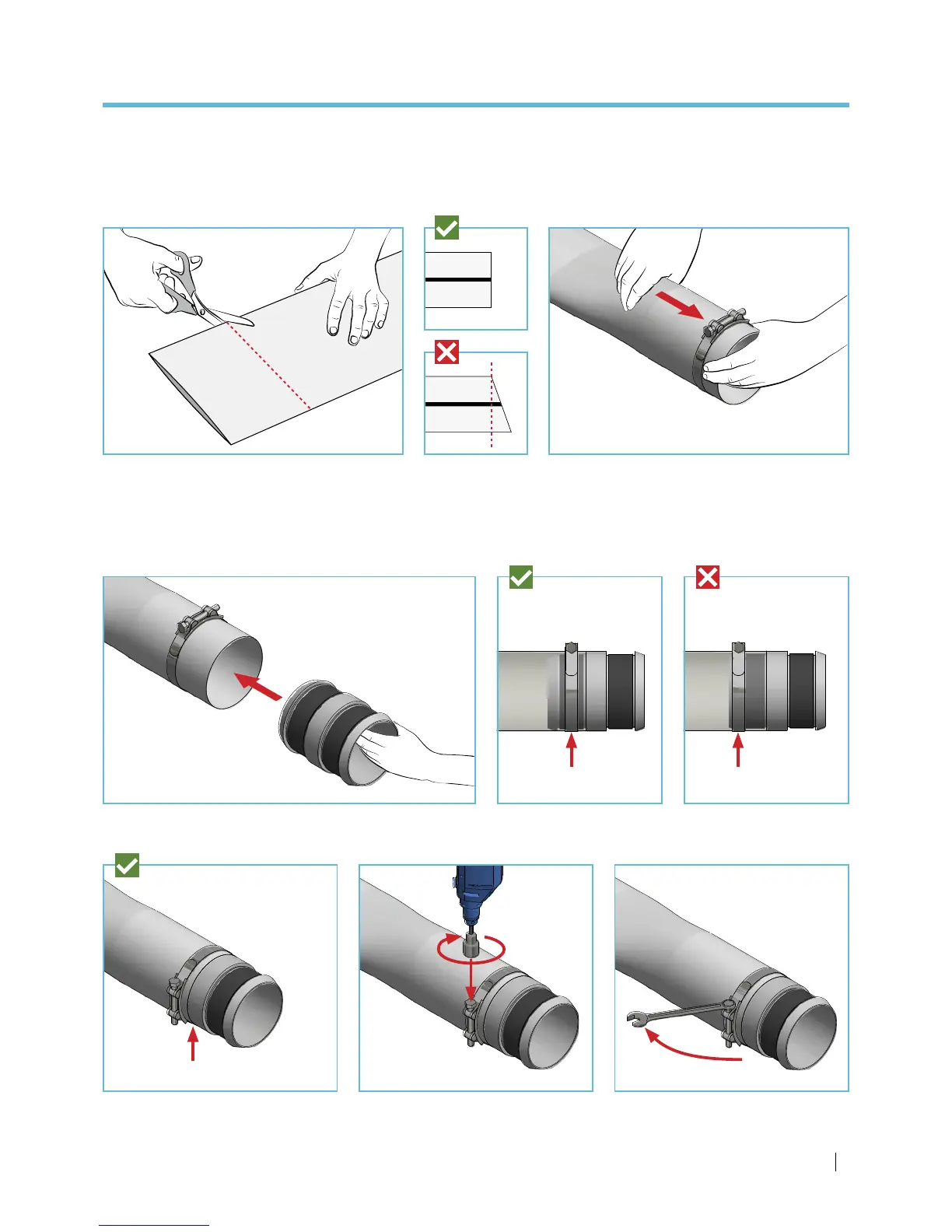

Fig. 1 Fig. 2
Fig. 6 Fig. 7 Fig. 8
Fig. 3 Fig. 4 Fig. 5
