Netafim orbia GrowSphere ONE User Manual

4 5

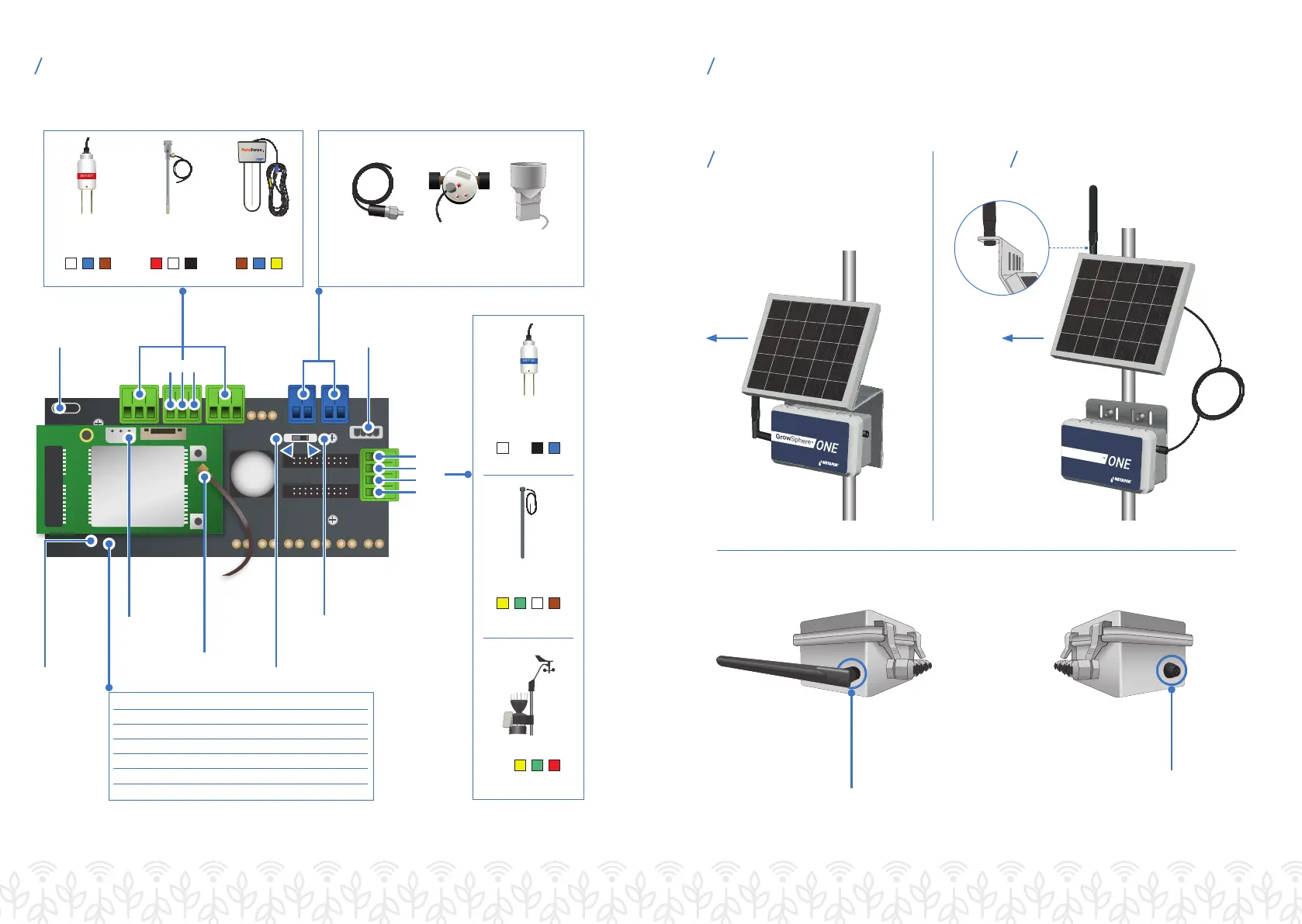

Sensor Wiring Diagram
Analog
Inputs
Port 1 Port 1 Port 2Port 3
SIM
Card**
* Stay updated with your Netam representative for sensor compatibly.
** The unit is provided with a SIM card
Technician
Cable
Digital
Inputs
(+)
(RX)
(TX)
(-)
(+) (AI) (-)
Solar Panel
Input / Charging
Cable Input
Serial Sensor Selector
NetaCap & Davis
(Take to the Left)
Magnet
Reed
Switch
LED Indicator
Cellular
Antenna
Serial Sensor
Selector WET150
(Take to the Center)
Water
Meter
Rain
Collector
Pressure
Switch
Soil Water
Tension
(+) (AI) (-) (+) (AI) (-)
Soil Moisture
NetaSense
(+) (RX) (TX) (-)
Soil Sensor
WET150
WET150
V.2
(+) (RX) (TX) (-)
Soil Sensor
NetaCap
(+) (RX) (TX) (-)
Weather Station
Number of ashes Meaning
1 Modem not responding
2 SIM error
3 Network error
4 IP error
5 Certicate error
6 DPS code error
Soil Moisture
SM150T
(+) (AI) (-)
SM150T
Initial Setup
Integrated solar panel
South South
Separated solar panel, 5m cable
Cellular
antenna
connector
Solar panel
connector
GrowSphere
*
*
GrowSphere
