Step 2: Replace the boot media

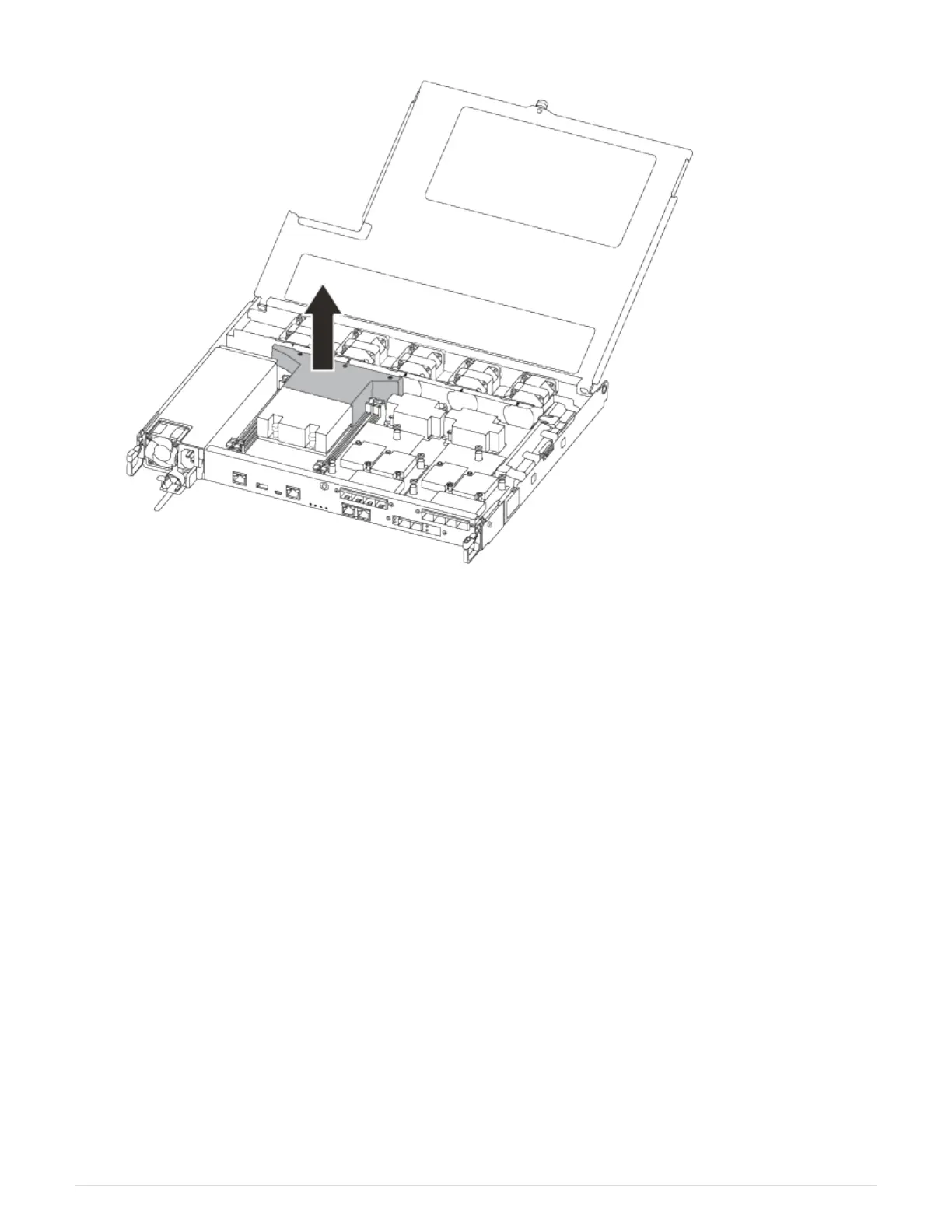

You locate the failed boot media in the controller module by removing the air duct on the controller module
before you can replace the boot media.
You need a #1 magnetic Phillips head screwdriver to remove the screw that holds the boot media in place. Due
to the space constraints within the controller module, you should also have a magnet to transfer the screw on
to so that you do not lose it.
You can use the following video or the tabulated steps to replace the boot media:
Animation - Replace the boot media
1. Locate and replace the impaired boot media from the controller module.
246
