2. Go to Step 5: Complete system setup and configuration to complete system setup and configuration.
Option 3: Cable the controllers to two NS224 drive shelves in AFF A700 and ASA AFF A700 systems
running ONTAP 9.8 and later only

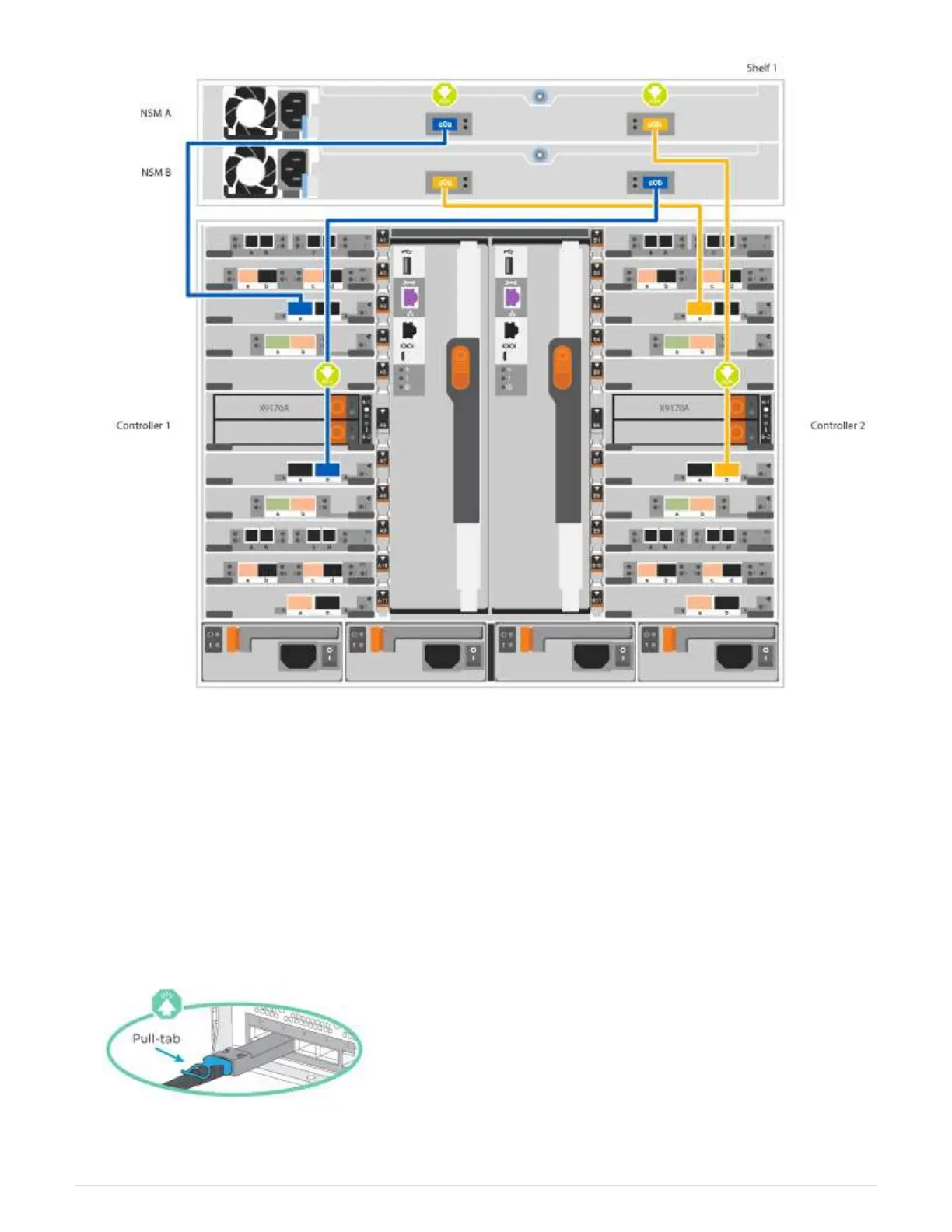

You must cable each controller to the NSM modules on the NS224 drive shelves on an AFF A700 or ASA AFF
A700 running system ONTAP 9.8 or later.
• This task applies to AFF A700 and ASA AFF A700 running ONTAP 9.8 or later only.
• The systems must have two X91148A modules, per controller, installed in slots 3 and 7.
• Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable pull-tab
for the storage modules are up, while the pull tabs on the shelves are down.
442
