Step Perform on each controller
• Connect controller A port e2a to port e0a on
NSM A on the shelf.
• Connect controller A port e10b to port e0b on
NSM B on the shelf.
100 GbE cable
• Connect controller B port e2a to port e0a on
NSM B on the shelf.
• Connect controller B port e10b to port e0b on
NSM A on the shelf.
100 GbE cable
Option 2: Cable the controllers to two NS224 drive shelves
You must cable each controller to the NSM modules on the NS224 drive shelves.
Before you begin

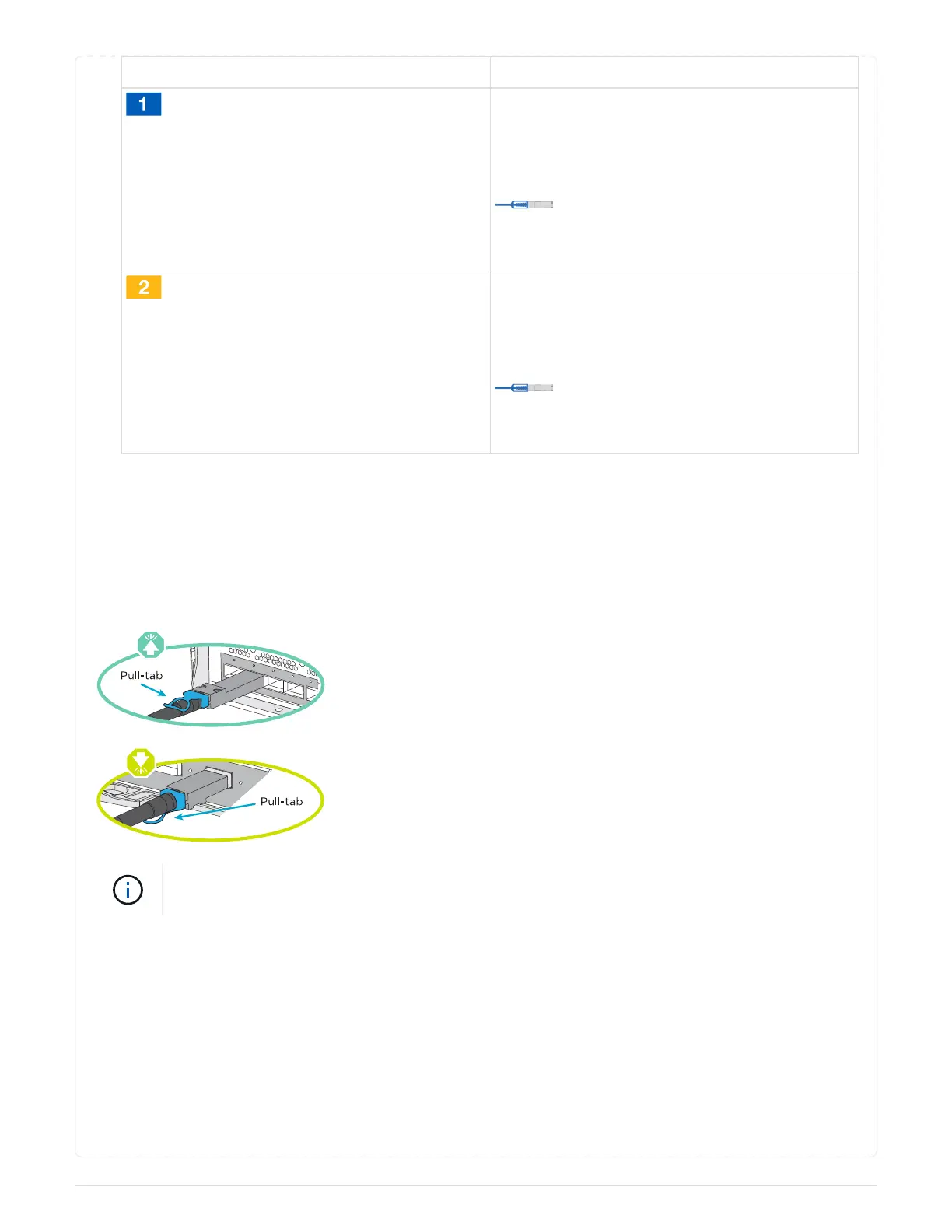

• Be sure to check the illustration arrow for the proper cable connector pull-tab orientation. The cable
pull-tab for the storage modules are up, while the pull tabs on the shelves are down.
As you insert the connector, you should feel it click into place; if you do not feel it click,
remove it, turn it around and try again.
1. Use the following animation or diagram to cable your controllers to two NS224 drive shelves.
Animation - Cable two NS224 shelves
