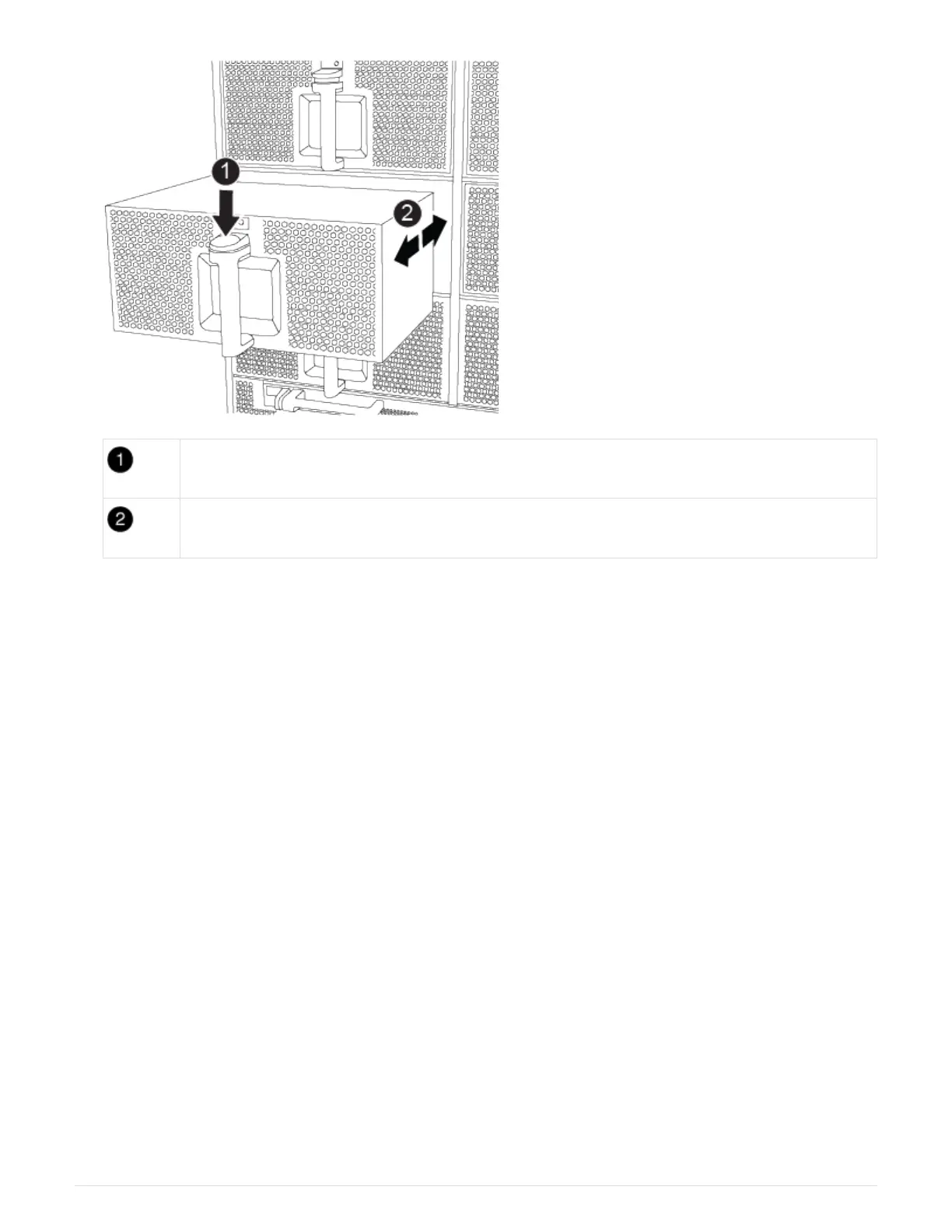

Terra cotta locking button
Slide fan in/out of chassis
4. Set the fan module aside.
5. Repeat the preceding steps for any remaining fan modules.
Step 3: Remove the controller module
To replace the chassis, you must remove the controller module or modules from the impaired chassis.
1. If you are not already grounded, properly ground yourself.
2. Unplug the cables from the impaired controller module, and keep track of where the cables were
connected.
3. Slide the terra cotta locking button on the cam handle downward until it unlocks.
Animation - Remove the controller
