As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.

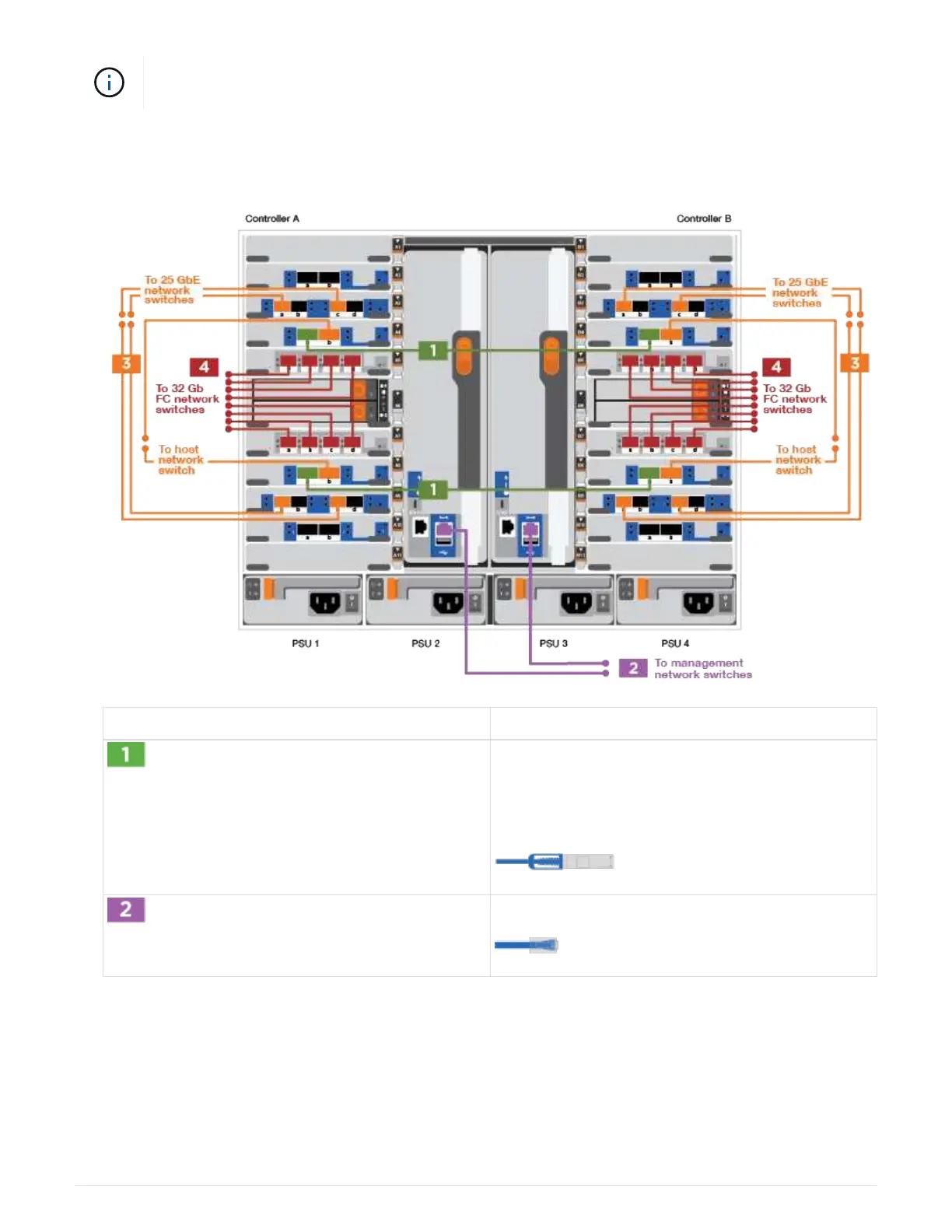

1. Use the animation or illustration to complete the cabling between the controllers and to the switches:
Animation — Cabling a two-node switchless cluster
Step Perform on each controller
Cable cluster interconnect ports:
• Slot A4 and B4 (e4a)
• Slot A8 and B8 (e8a)
Cable controller management (wrench) ports.
5
