Steps

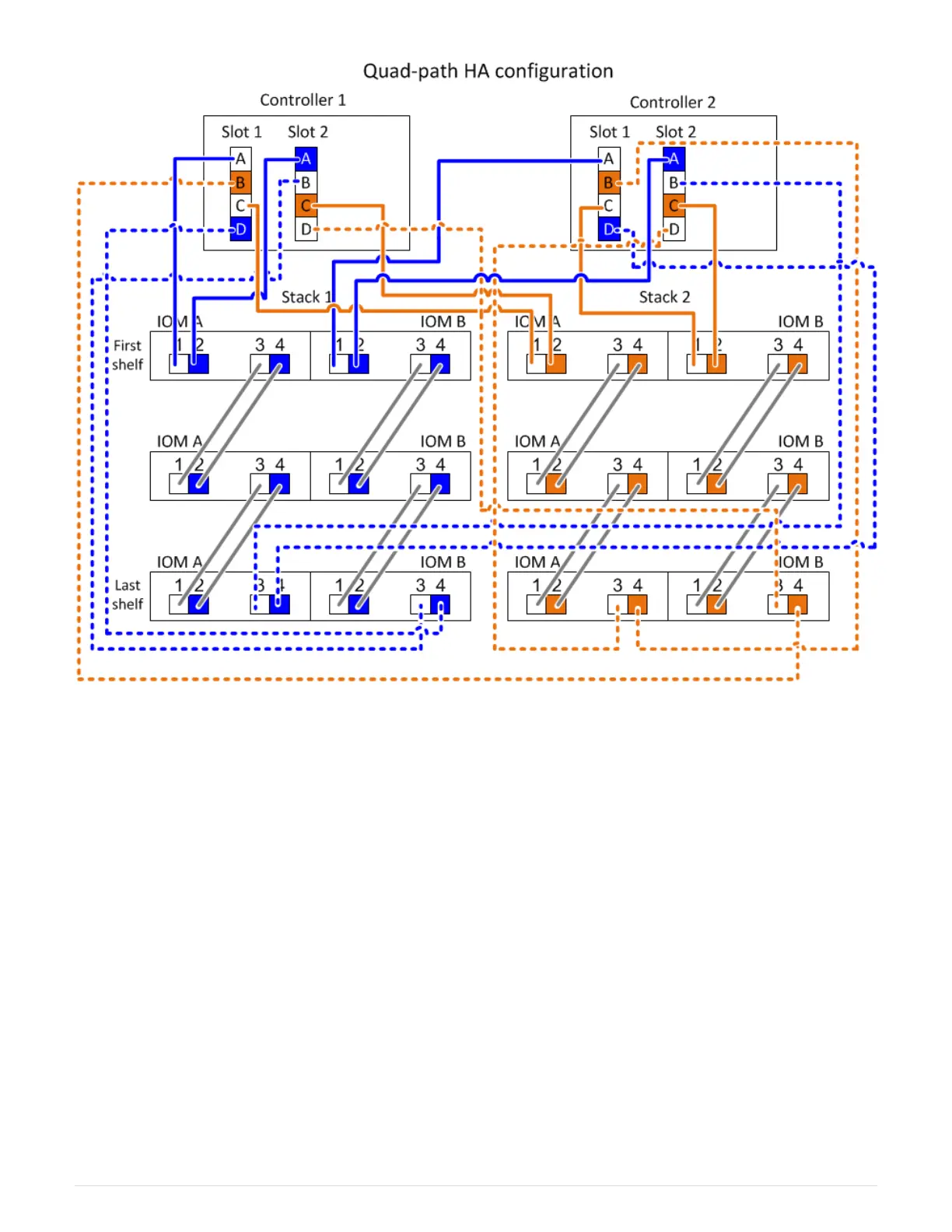

1. Cable port pair 1a/2b on each controller to stack 1:
This is the multipathed cabling for stack 1.
a. Cable controller 1 port 1a to stack 1, first shelf IOM A port 1.
b. Cable controller 2 port 1a to stack 1, first shelf IOM B port 1.
c. Cable controller 1 port 2b to stack 1, last shelf IOM B port 3.
d. Cable controller 2 port 2b to stack 1, last shelf IOM A port 3.
2. Cable port pair 2a/1d on each controller to stack 1:
This is the quad-pathed cabling for stack 1. Once completed, stack 1 has quad-pathed connectivity to each
controller.
a. Cable controller 1 port 2a to stack 1, first shelf IOM A port 2.
b. Cable controller 2 port 2a to stack 1, first shelf IOM B port 2.
c. Cable controller 1 port 1d to stack 1, last shelf IOM B port 4.
d. Cable controller 2 port 1d to stack 1, last shelf IOM A port 4.
