You need to be aware of the safety concerns associated with the weight of the system.

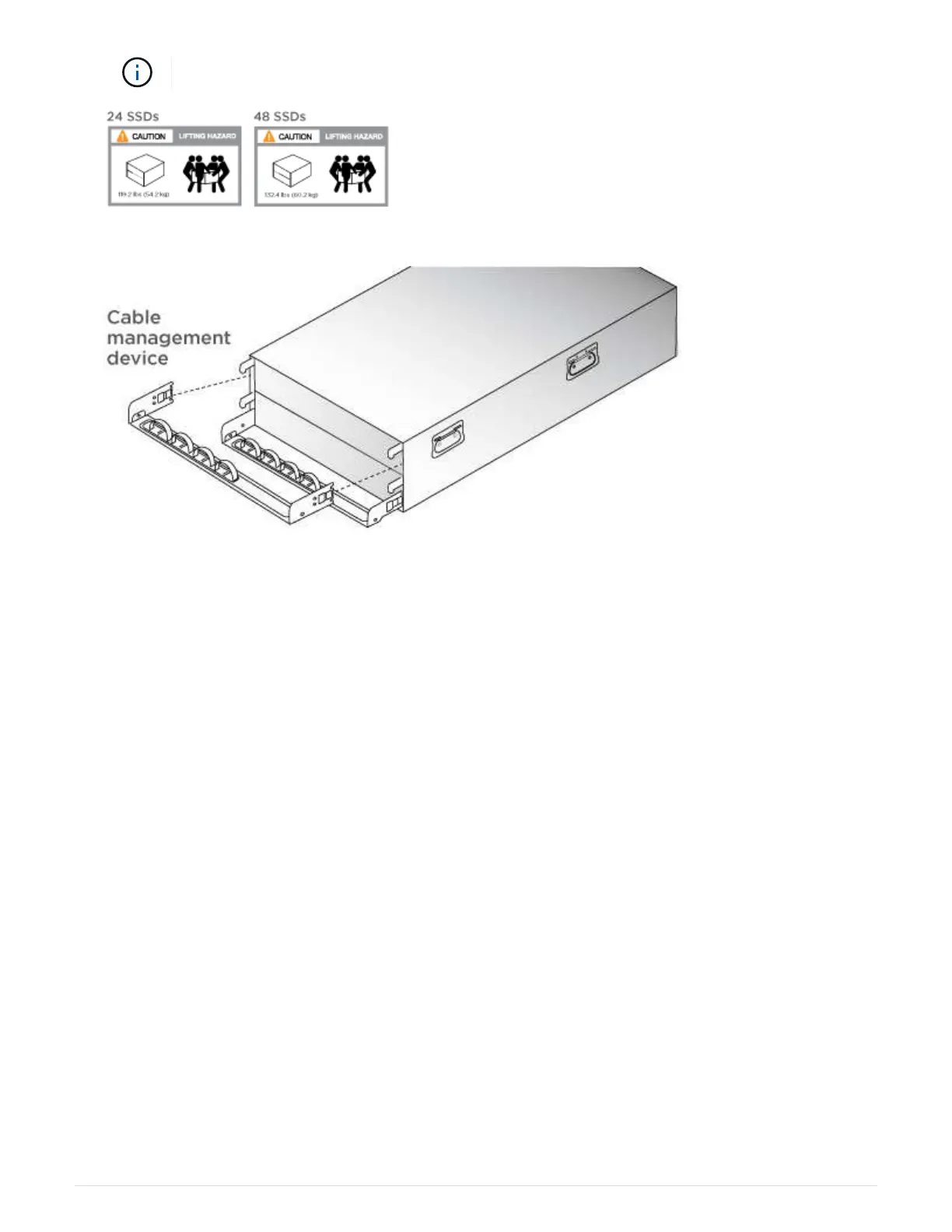

3. Attach cable management devices (as shown).
4. Place the bezel on the front of the system.
Step 3: Cable controllers
There is required cabling for your platform’s cluster using the two-node switchless cluster
method or the cluster interconnect network method. There is optional cabling to the Fibre
Channel or iSCSI host networks or direct-attached storage. This cabling is not exclusive;
you can have cable to a host network and storage.
Required cabling: Cable controllers to a cluster
Cable the controllers to a cluster by using the two-node switchless cluster method or by
using the cluster interconnect network.
Option 1: Cable a two-node switchless cluster
Management network ports on the controllers are connected to switches. The HA
interconnect and cluster interconnect ports are cabled on both controllers.
Contact your network administrator for information about connecting the system to the switches.
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
