4. Place the bezel on the front of the system.
Step 3: Cable controllers to your network
You can cable the controllers to your network by using the two-node switchless cluster
method or by using the cluster interconnect network.
Option 1: Two-node switchless cluster
Management network, data network, and management ports on the controllers are
connected to switches. The cluster interconnect ports are cabled on both controllers.
Before you begin
You must have contacted your network administrator for information about connecting the system to the
switches.

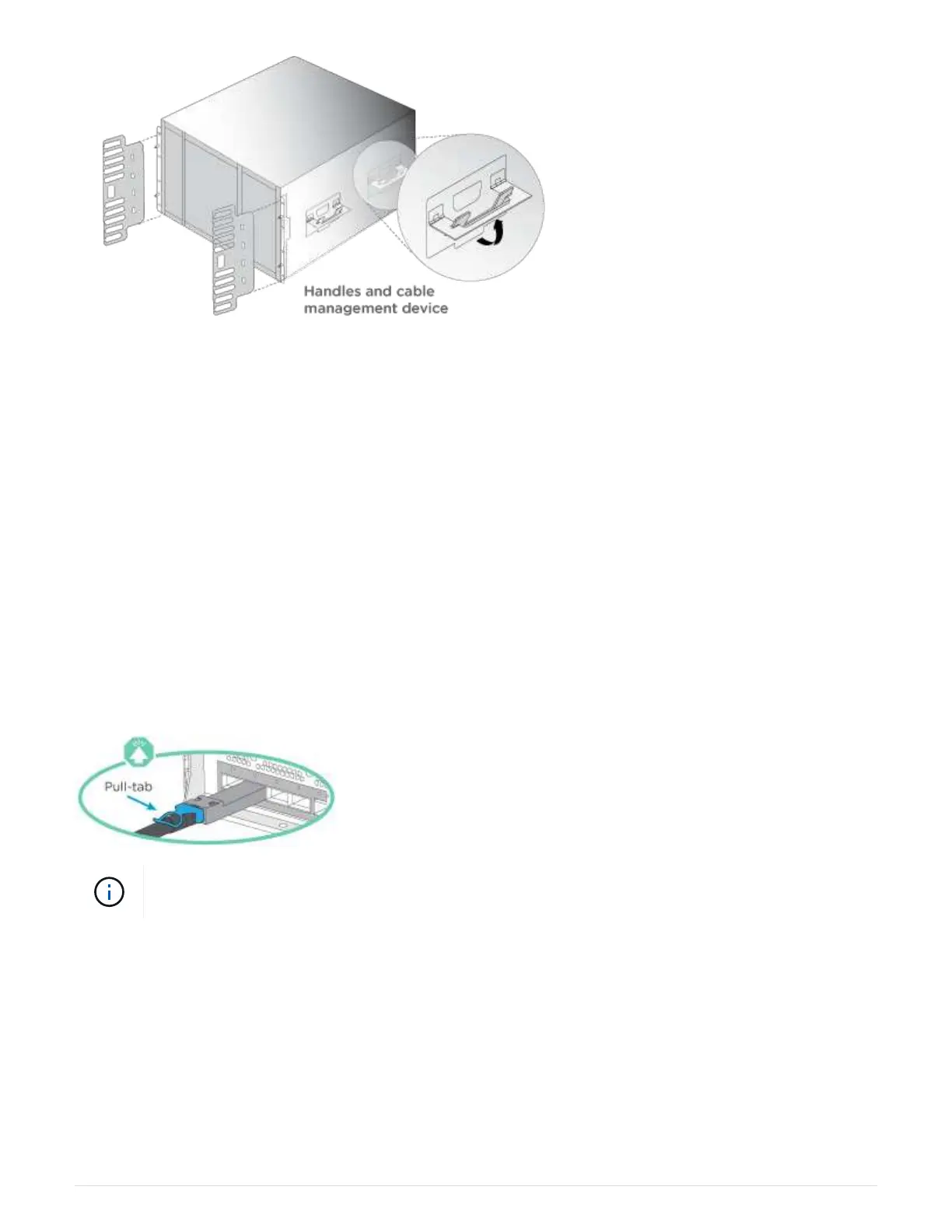

Be sure to check the direction of the cable pull-tabs when inserting the cables in the ports. Cable pull-tabs are
up for all networking module ports.
As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
1. Use the animation or illustration to complete the cabling between the controllers and to the switches:
Animation — Cabling a two-node switchless cluster
1041
