4. Rotate the cam handle so that it completely disengages the controller module from the chassis, and then
slide the controller module out of the chassis.
Make sure that you support the bottom of the controller module as you slide it out of the chassis.
5. Place the controller module lid-side up on a stable, flat surface, press the blue button on the cover, slide
the cover to the back of the controller module, and then swing the cover up and lift it off of the controller
module.

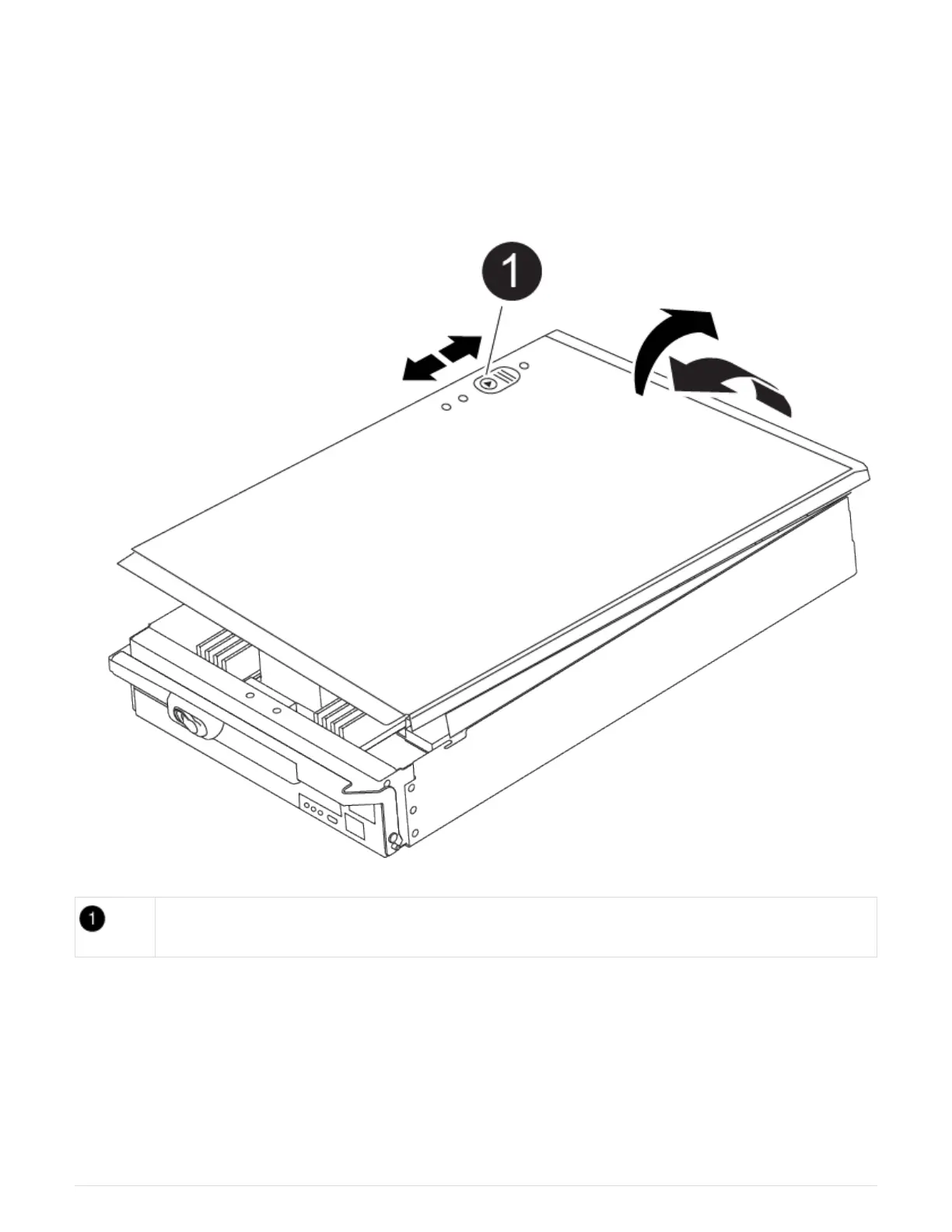

Controller module cover locking button
Step 2: Move the boot media
You must locate the boot media and follow the directions to remove it from the old
controller and insert it in the new controller.
1. Locate the boot media using the following illustration or the FRU map on the controller module:
