As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps
1. Use the animation (
Cabling a switched cluster) or the step-by-step instructions to complete the cabling
between the controllers and to the switches:

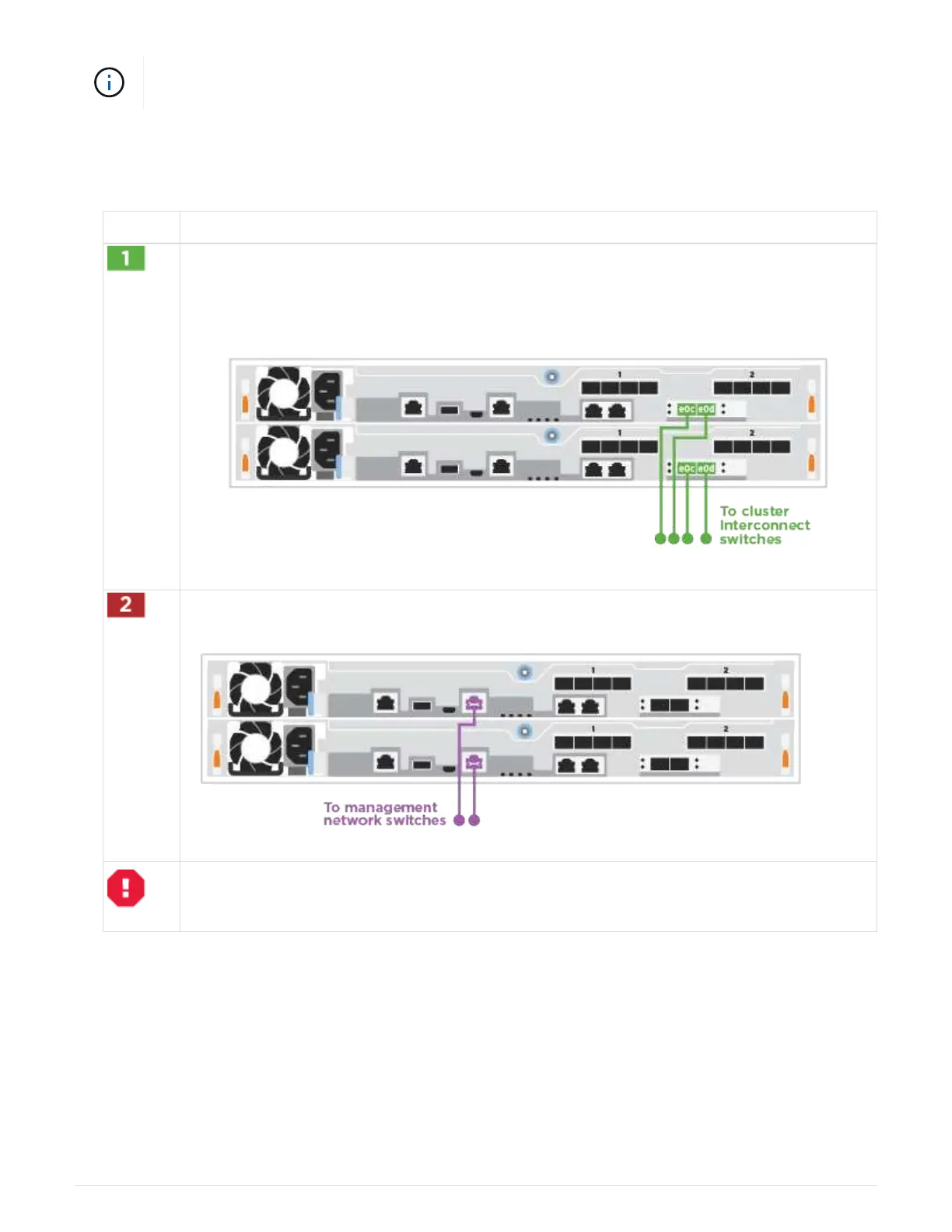

Step Perform on each controller
Cable the cluster interconnect ports to the 25 GbE cluster interconnect switches.
• e0c
•
e0d
Cable the wrench ports to the management network switches with the RJ45 cables.
DO NOT plug in the power cords at this point.
2. To complete setting up your system, see
Step 4: Complete system setup and configuration.
Optional cabling: Cable configuration-dependent options
You have configuration-dependent optional cabling to the Fibre Channel or iSCSI host networks or direct-
attached storage. This cabling is not exclusive; you can have cabling to a host network and storage.
