Step 3: Replace system DIMMs
Replacing a system DIMM involves identifying the target DIMM through the associated
error message, locating the target DIMM using the FRU map on the air duct or the lit LED
on the motherboard, and then replacing the DIMM.
You can use the following animation, illustration, or the written steps to replace a system DIMM.
The animation and illustration show empty slots for sockets without DIMMs. These empty
sockets are populated with blanks.

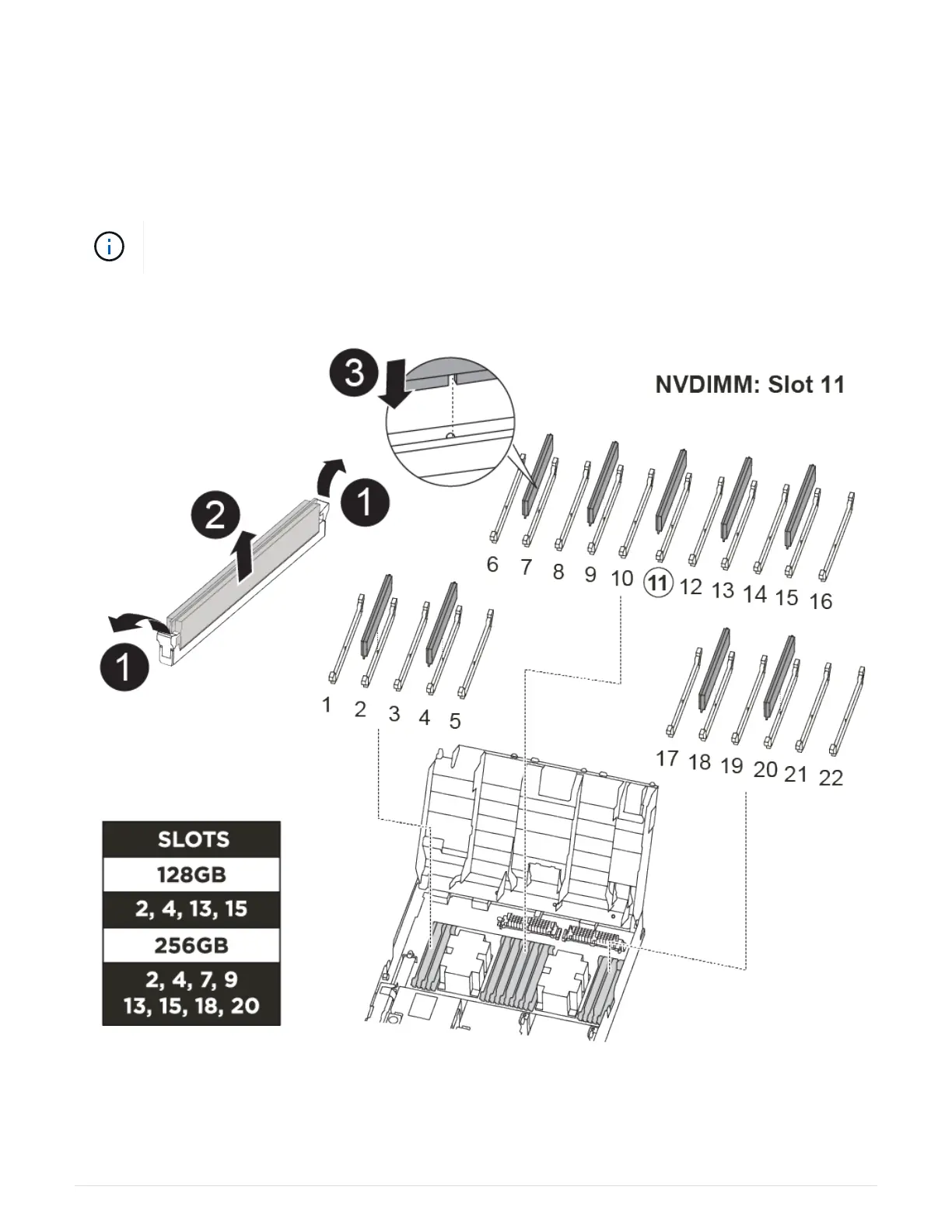

Replacing a system DIMM
The DIMMs are located in sockets 2, 4, 13, and 15. The NVDIMM is located in slot 11.
1. Open the air duct:
641
