Locking latch
Locking pin
6. Slide the controller module out of the chassis.
Make sure that you support the bottom of the controller module as you slide it out of the chassis.
7. Place the controller module on a stable, flat surface, and then open the air duct:

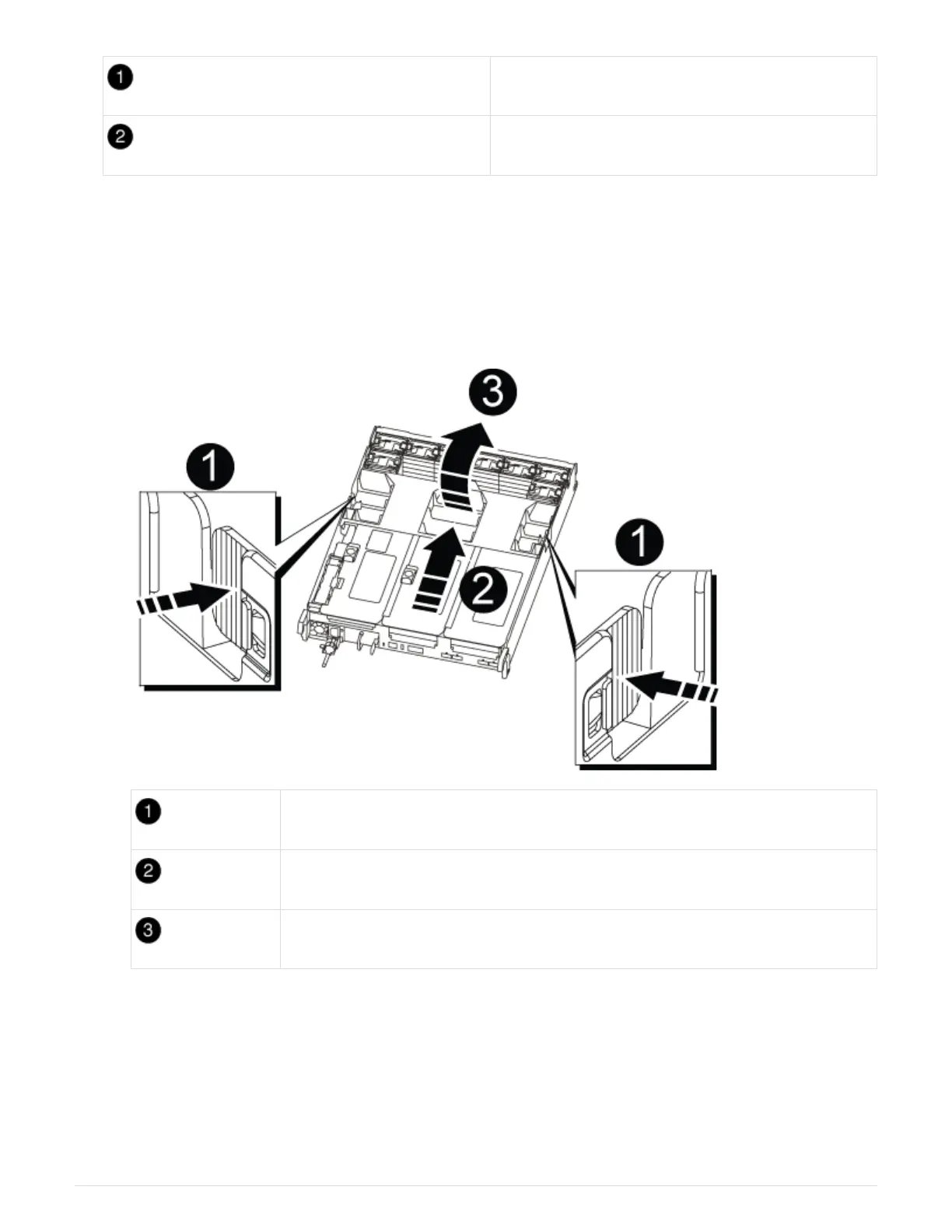

a. Press in the locking tabs on the sides of the air duct toward the middle of the controller module.
b. Slide the air duct toward the fan modules, and then rotate it upward to its completely open position.
Air duct locking tabs
Risers
Air duct
Replace a DIMM
To replace a DIMM, you must locate it in the controller module using the DIMM map on
the inside of the controller module or locating it using the LED next to the DIMM, and then
replace it following the specific sequence of steps.
1. If you are not already grounded, properly ground yourself.
