Option 4: Cable the controllers to two drive shelves
You must cable each controller to the NSM modules on both NS224 drive shelves.
Before you begin
Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.
As you insert the connector, you should feel it click into place; if you do not feel it click, remove
it, turn it around and try again.
Steps
1. Use the following animation (
Cabling the controllers to two drive shelves) or the written steps to cable your
controllers to two drive shelves.
Step Perform on each controller module

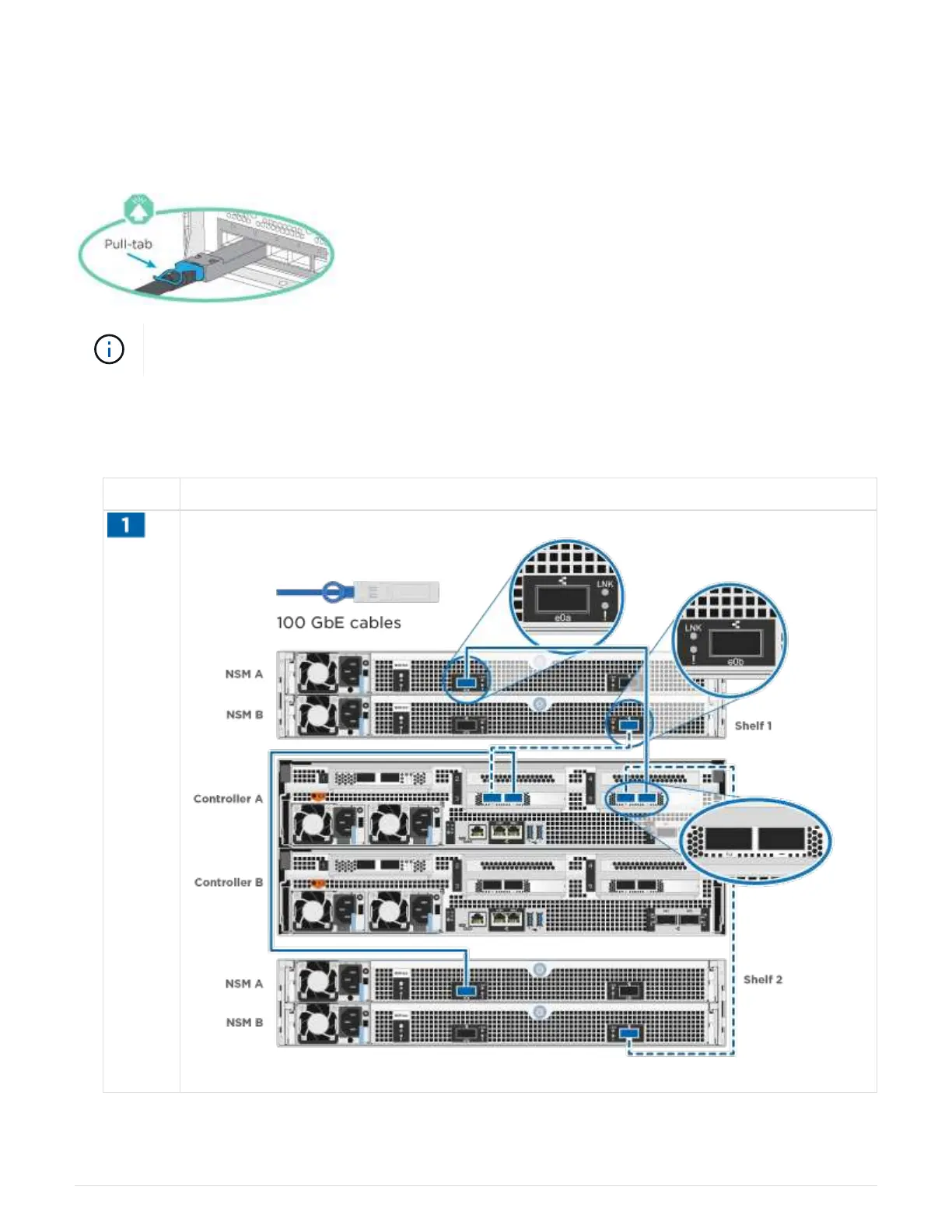

Cable controller A to the shelves:
941
