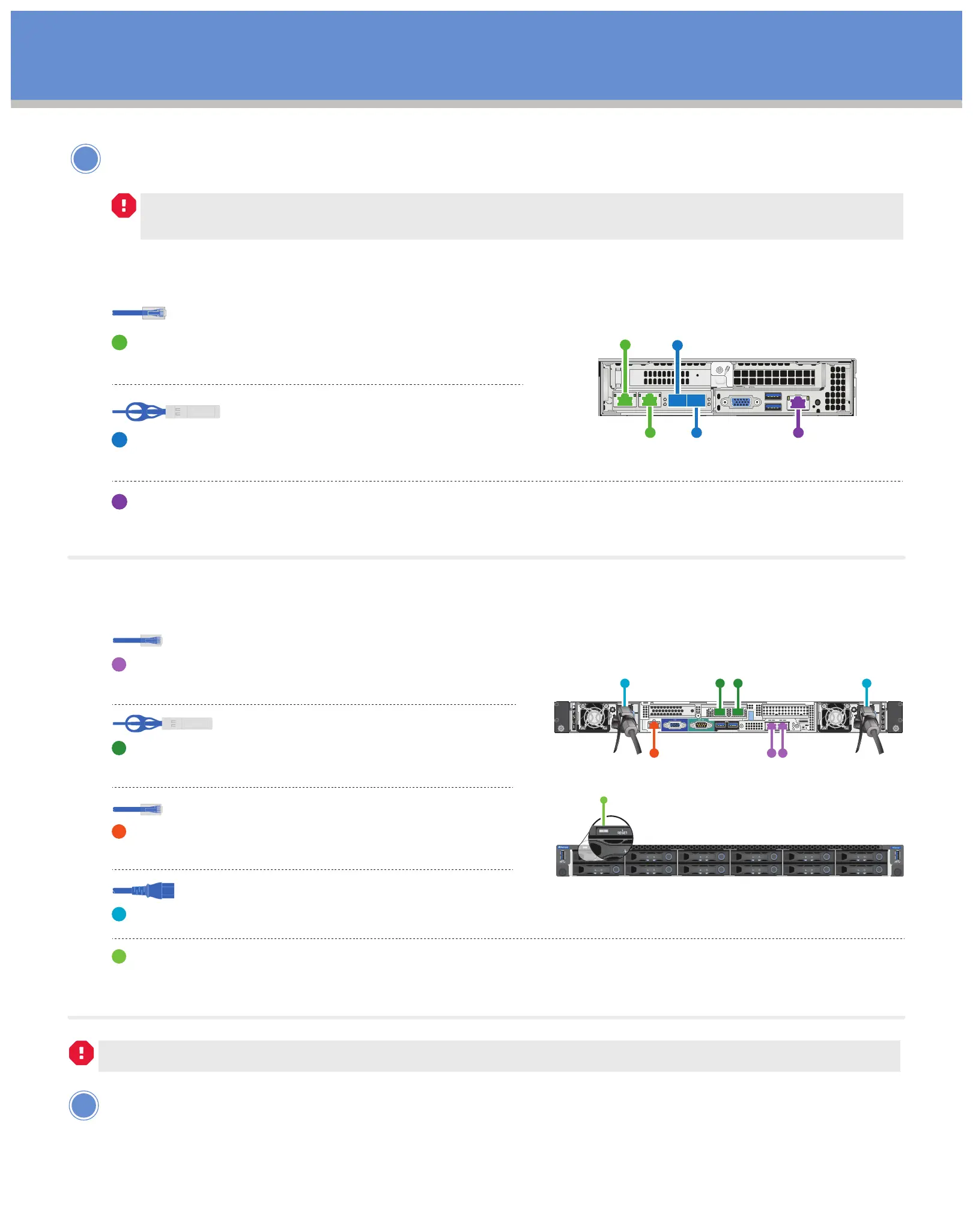

Cable the node | Stage 3 cont.
Connect the node to a 1GbE network using
two RJ45 connectors.
Connect the node to a 10/25GbE network using
two SFP28 or SFP+ cables.
Connect the node to a 1GbE network using
an RJ45 connector in the IPMI port.
Connect both power cables to the node.
Plug the power cables to a suitable power outlet. Press the power button at the front of the chassis.
Note: It takes approximately five minutes and 30 seconds for the node to boot.
10/25GbE cables
1GbE cables
1GbE cable
Power cables
FRONT
VIEW
REAR
VIEW
10/25GbE SFP+
or SFP28 cables
for iSCSI
1GbE RJ45 cable
for out-of-band
management
1GbE RJ45 cables
for management
H610S storage node
3
Connect the power cords to the two power supply units
per chassis and plug them into 240V PDU or power outlet.
This step does not apply if you are adding a new node to an existing chassis.
Steps 3 and 4 apply only if you are installing H410C and H410S nodes in a chassis.
Cable the storage node.
If the airflow vents at the rear of the chassis are blocked by cables or labels, it can lead to premature
component failures due to overheating.
Connect two CAT5e or higher cables in ports
A and B for management connectivity.
Connect two SFP28/SFP+ cables or transceivers
in ports C and D for storage connectivity.
(Optional, recommended)
Connect a CAT5e cable in the IPMI port for out-of-band management connectivity.
10/25GbE cables
1/10GbE cables
Port D IPMI
Port CPort A
Port B
H410S storage node
2
