Product ManualXG-7100

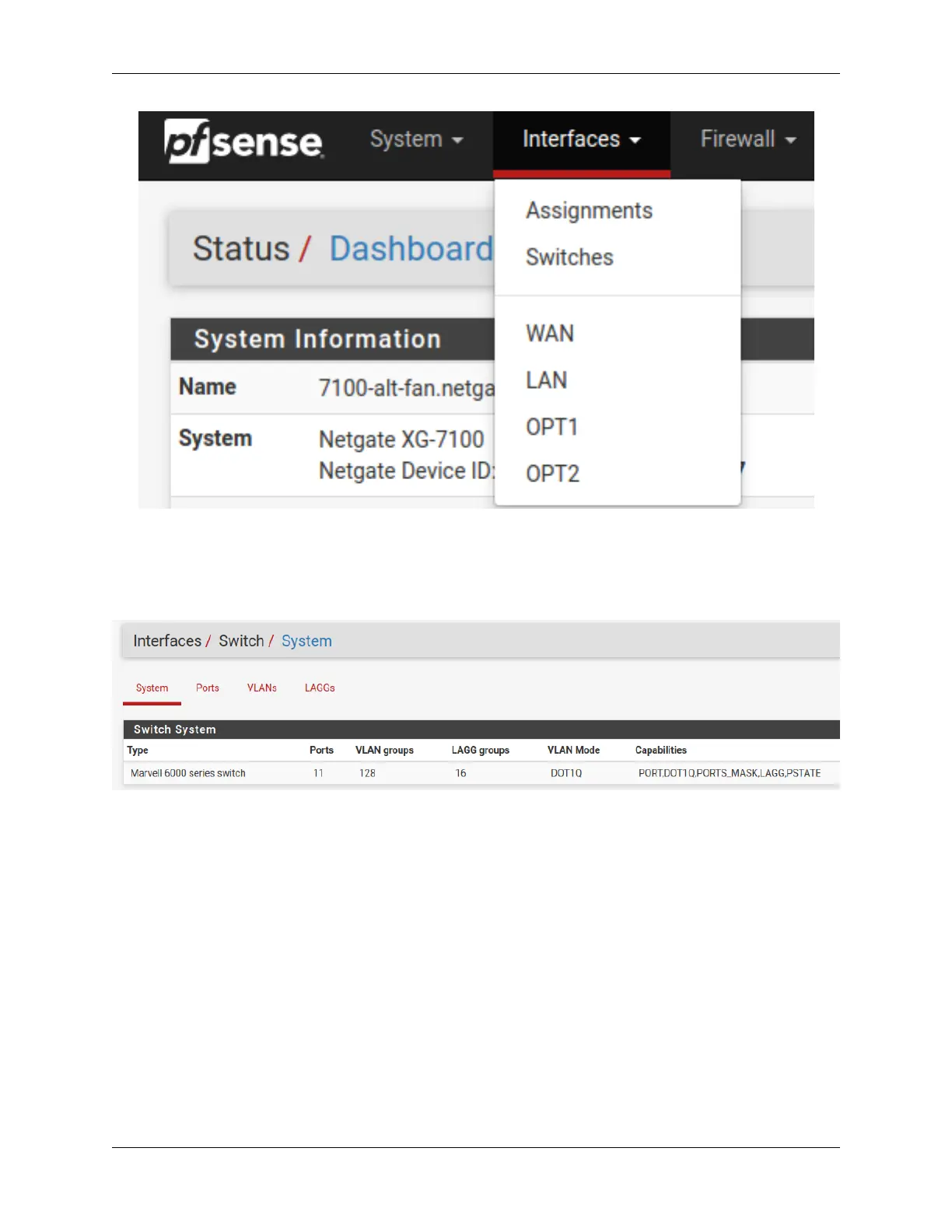

Selecting Switches from the drop-down will bring up the Switch page with four sections:
System
Fig. 1: Information on the Marvell 6000 switch
LAGGs
Ports
Information on switchport status and port names. If 802.1q is enabled, this section can also be used to specify the
native VLAN ID for each port. The Port VID defined will be used to tag inbound untagged traffic.
VLANs
Enable/Disable 802.1q VLAN mode. Configure VLAN access/trunk interfaces with 802.1q or configure port groups
with Port VLAN Mode.
2.4. Configuring the Switch 9

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Netgate XG-7100 and is the answer not in the manual?

Netgate XG-7100 Specifications

General IconGeneral
RAM8 GB DDR4
USB Ports2 x USB 3.0
Operating SystempfSense Plus
Form Factor1U Rackmount
Console PortRJ-45 Serial Console
Power Supply100-240V AC, 50-60Hz, Internal
Network Ports2x 10 GbE SFP+ ports, 8x 1 GbE RJ45 ports
Dimensions1.7" (43 mm) H x 17.3" (439 mm) W x 10.1" (256 mm) D
