Product ManualXG-7100

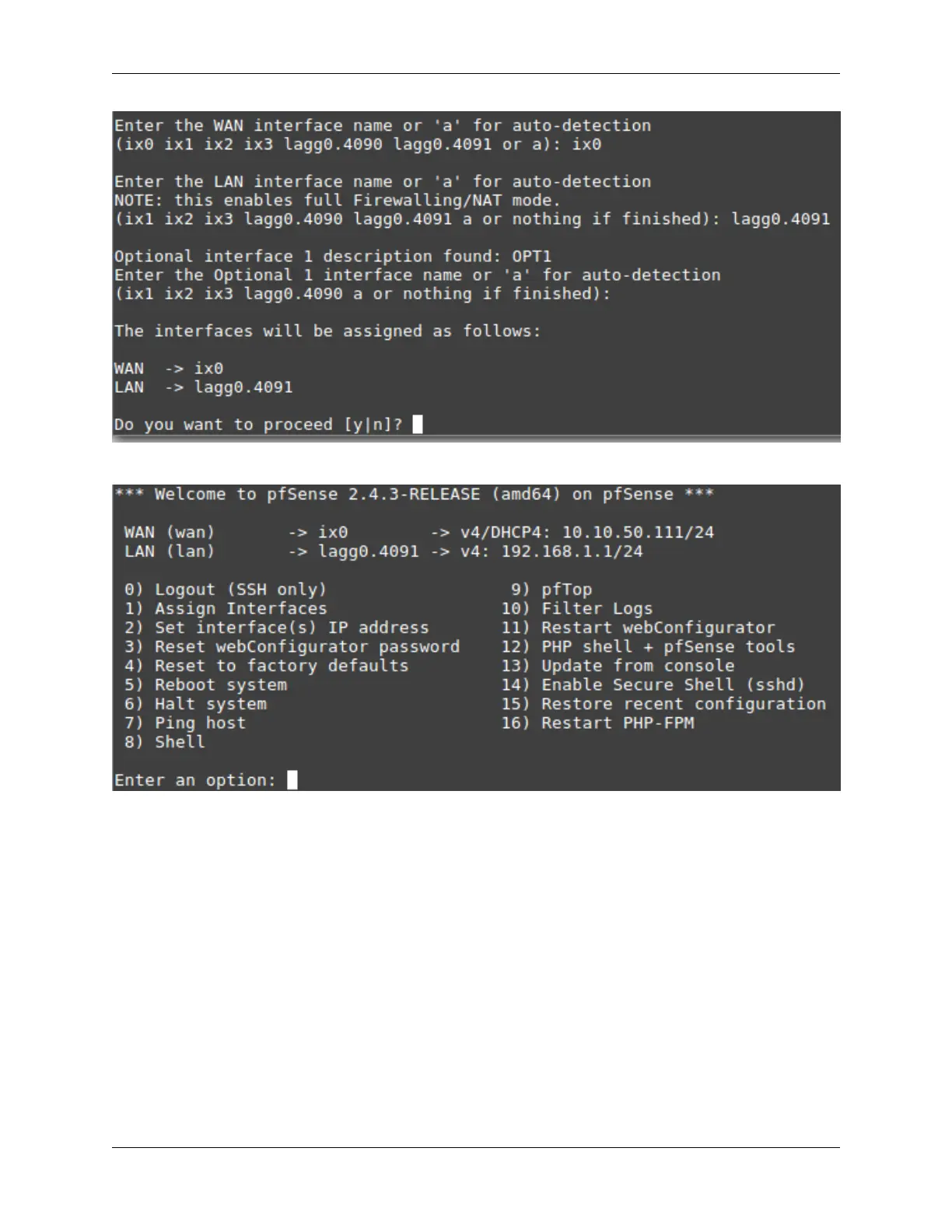

The interface assignments should show like this now:
At this point SFP+ port ix0 is now configured as the WAN interface. The LAN interface is still configured the same as
the default. Next, the switch will need to be updated so that ETH1 (previously WAN) acts the same as ETH2-8. This
will be done from the webGUI.
From the webGUI, pull up the Switch VLAN configuration under Interfaces -> Switches -> VLANs:
2.5. Switch Configuration Examples 15
