Product ManualXG-7100

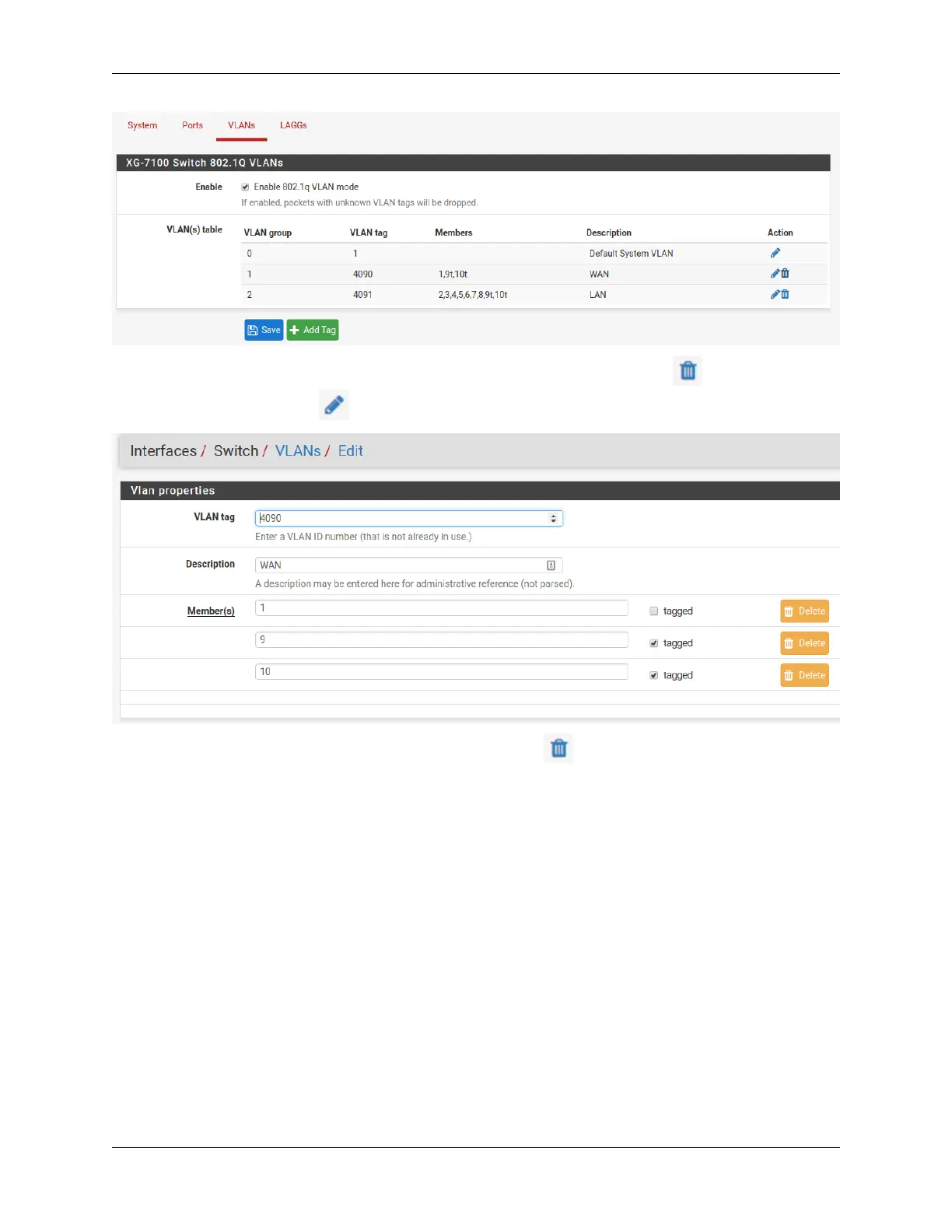

VLAN 4090 is no longer needed since WAN is dedicated to ix0 now. You can either select on the row containing
4090 to delete this entry, or click to remove port 1 as a member:
For this example, I simply removed VLAN 4090 from the switch with . Now edit the VLAN 4091 entry to include
Member 1 as shown below:
2.5. Switch Configuration Examples 16
