Product ManualXG-7100

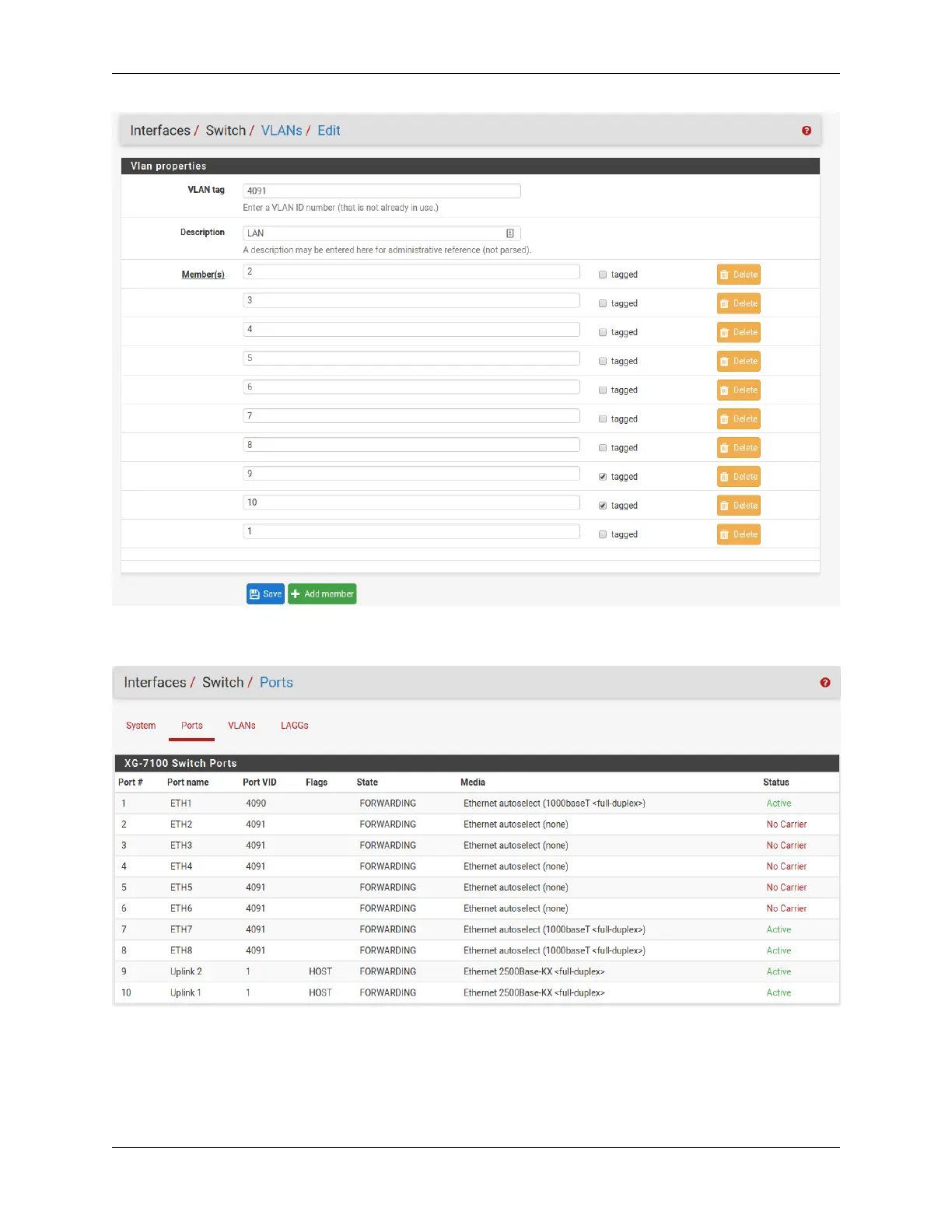

Next, update the PVID for ETH1 so that it uses VLAN 4091 rather than the old VLAN 4090. To do this, click on the
Ports tab and click on the 4090 Port VID to modify it:
Then click on Save:
2.5. Switch Configuration Examples 17

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Netgate XG-7100 and is the answer not in the manual?

Netgate XG-7100 Specifications

General IconGeneral
RAM8 GB DDR4
USB Ports2 x USB 3.0
Operating SystempfSense Plus
Form Factor1U Rackmount
Console PortRJ-45 Serial Console
Power Supply100-240V AC, 50-60Hz, Internal
Network Ports2x 10 GbE SFP+ ports, 8x 1 GbE RJ45 ports
Dimensions1.7" (43 mm) H x 17.3" (439 mm) W x 10.1" (256 mm) D
