I/O PORTS

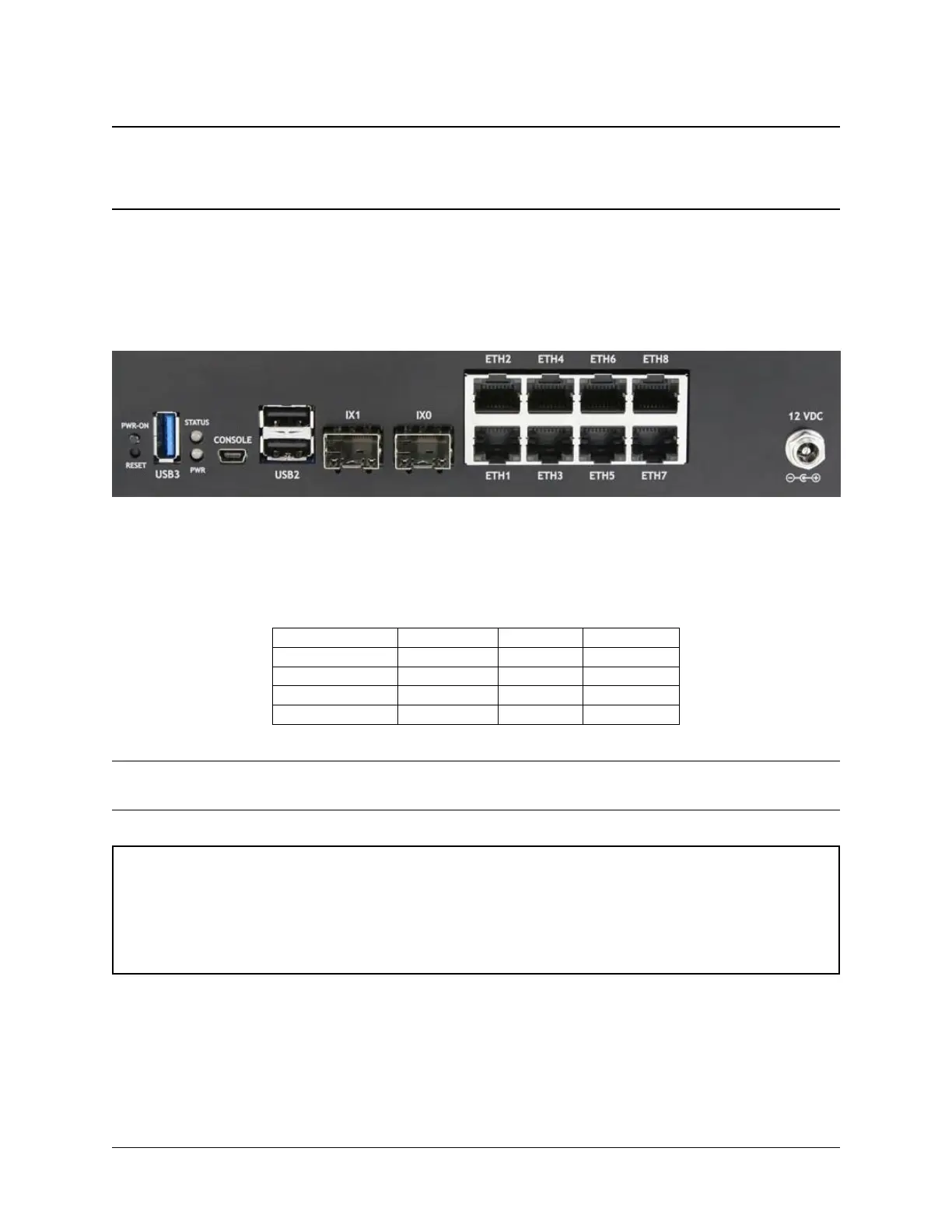

Ports are assigned as pictured.
1.1 Ethernet Ports
Interface Name Port Name Port Type Port Speed
WAN ETH1 RJ-45 1 Gbps
LAN ETH2-ETH8 RJ-45 1 Gbps
OPT1 IX0 SFP+ 10 Gbps
OPT2 IX1 SFP+ 10 Gbps
Note: ETH1-8 are switched ports sharing 5 Gbps (2x 2.5 Gbps) to the Intel SoC. These ports can be isolated as an
independent interface with the configuration of VLAN tagging as shown in XG-7100 Switch Overview.
Warning: There is an Intel-supplied driver issue, which is noted in the Intel Release Notes for the C3000,
preventing 1Gbps and 10Gbps copper modules from being recognized on the SFP+ ports. Copper modules are not
supported.
LAGG is not currently supported on the ethernet switchports.
This will be addressed in a future pfSense release.
1.2 Other Ports, Buttons, and Indicators
• Semi-recessed Power (PWR) (performs a graceful shutdown of pfSense software)
• Recessed Reset Button (performs a hard reset, immediately turning the system off)
