14 Installing Your Router Manually (Advanced, Mac, and Linux Users)
• Two-Line Filter Example. Insert the two-line filter into the phone outlet and connect the
phone to the phone line connector (A), as shown in Figure 8.
2. Connect the wireless-N modem router to the ADSL filter. Using the included phone cable with
RJ-11 jacks, connect the ADSL port (B) of the wireless-N modem router to the ADSL port (C)
of the two-line filter, as shown in Figure 9.

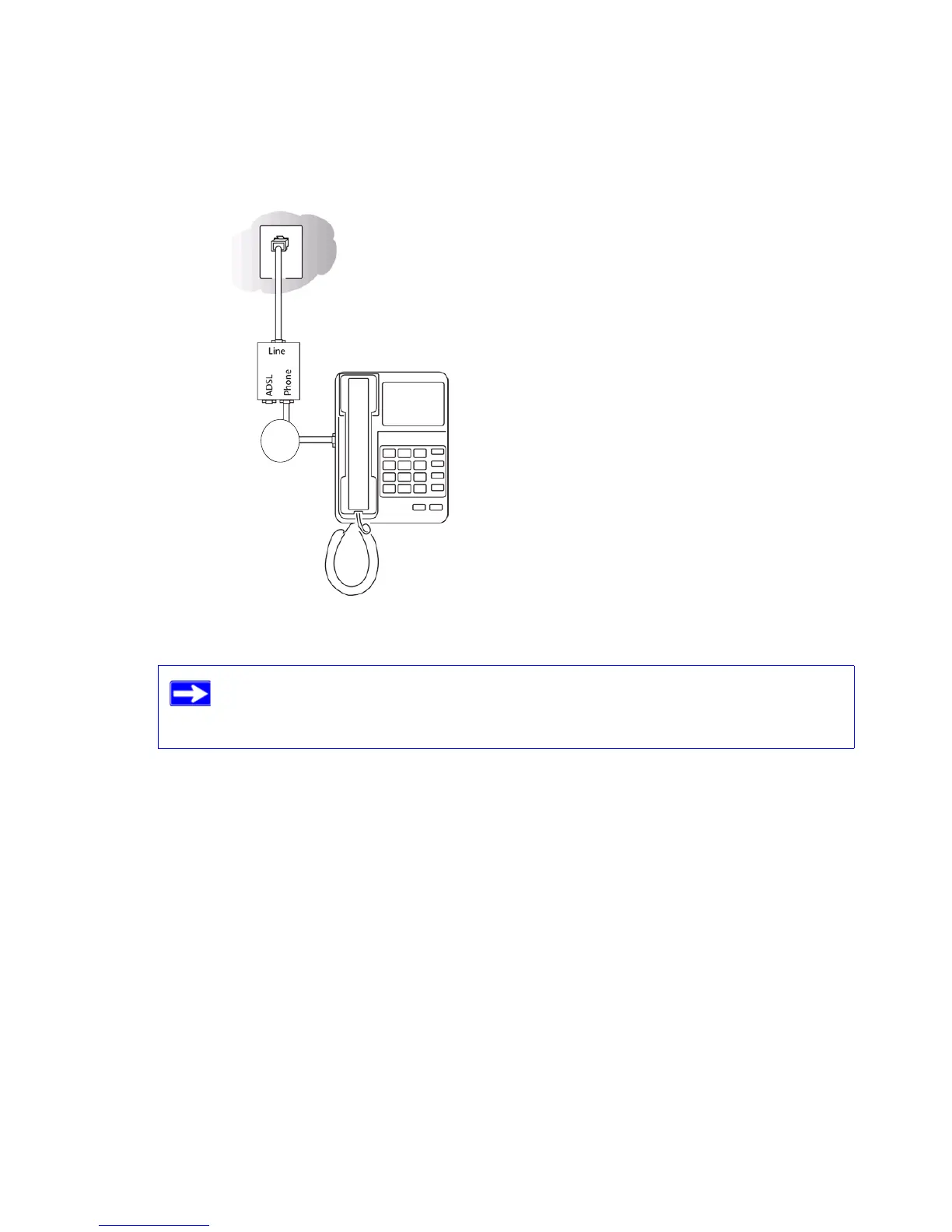

Figure 8
To use a one-line filter with a separate splitter, insert the splitter into the phone
outlet, connect the one-line filter to the splitter, and connect the phone to the
filter.
