Getting to Know Your Wireless Router 3
LAN Port 1 Solid Green
Blinking Green
Solid Amber
Blinking Amber
Off
The Local port has detected a link with a 100 Mbps device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected a link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.
LAN Port 2,
3, and 4
Identical to LAN Port 1 Identical to LAN Port 1
Wireless Solid Green
Blinking Green
Off
Indicates that the Wireless port is initialized.
Data is being transmitted or received over the wireless link.
The Wireless Access Point is turned off.
DSL Solid Green
Blinking Amber
Off
The ADSL port is synchronized with an ISP’s network-access device.
Indicates ADSL training—ADSL is synchronizing with the DSLAM.
The unit is off or there is no IP connection.
Internet Port Solid Green
Blinking Green
Off
There is an Internet session. If the session is dropped due to an idle
timeout, and an ADSL connection is still present, the light will remain
green. If the session is dropped for any other reason, the light will
turn off.
Data is being transmitted over the ADSL port.
No Internet connection detected.
WPS Solid Green
Blinking Green
Off
WPS wireless security is being enabled.
The device is in the 2-minute interval to synchronize security.
WPS is not being set or enabled.

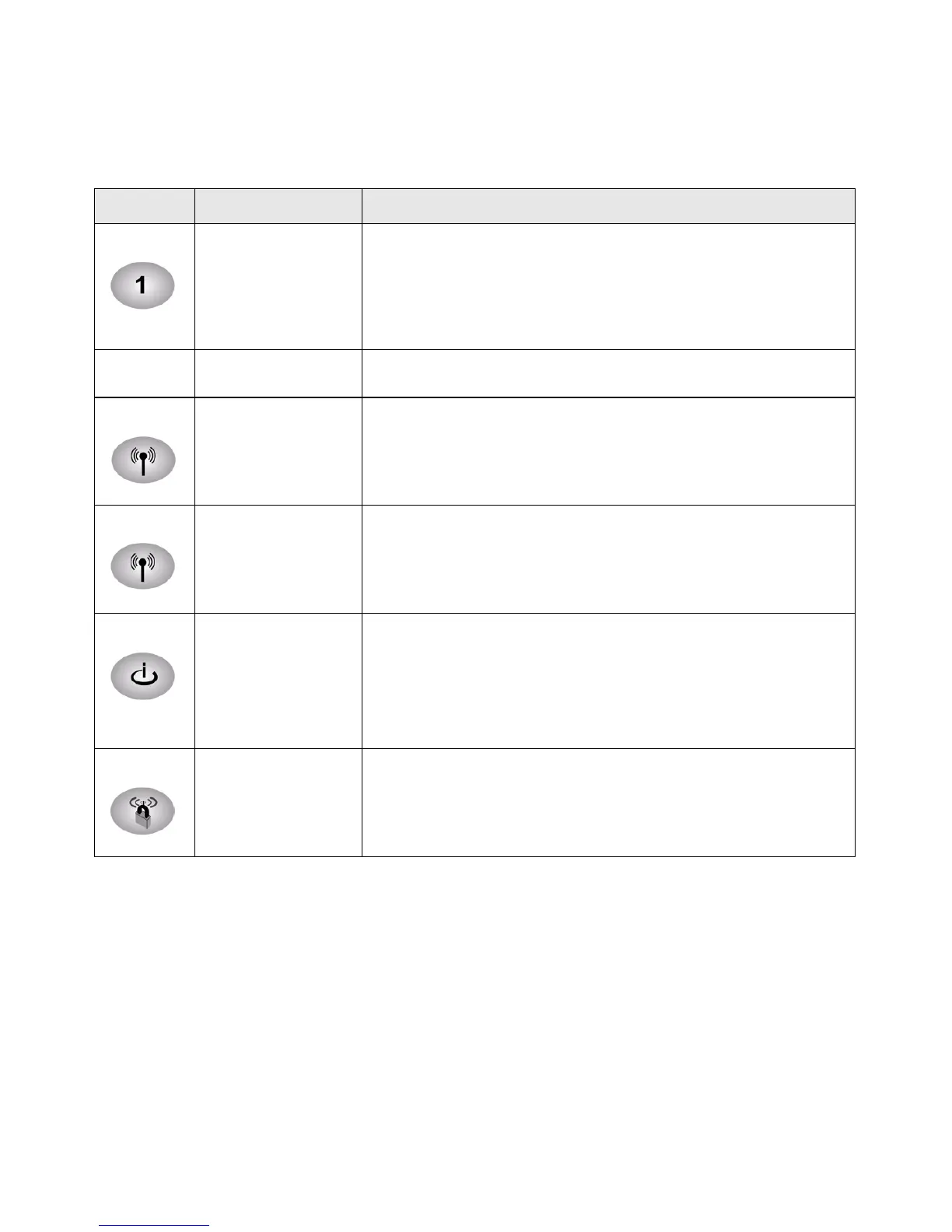

Table 1. LED Descriptions (continued)
Label LED Activity Description
