Model FS102, Model FS104, Model FS108 Fast Ethernt Switch Installation Guide

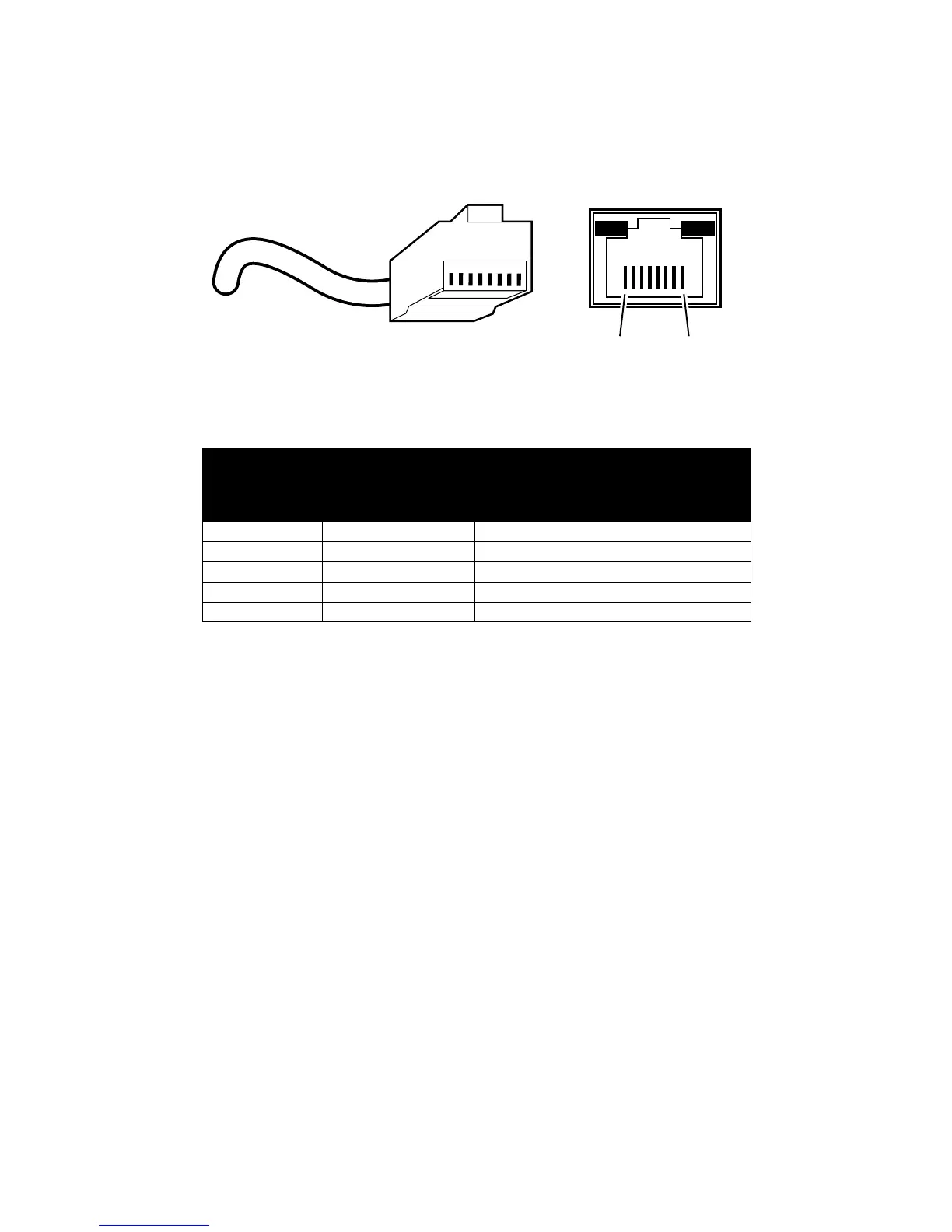

RJ-45 Connector
The RJ-45 connector (shown in the illustration with an RJ-45 plug) is used to connect
workstations and switches through unshielded twisted pair cable. The RJ-45 connector accepts
four-pair Category 3 or Category 5 UTP cable. Only two pairs are used for 10BASE-T wiring.
RJ-45 Connector
Pin Assignment
Normal Assignment:
Uplink Assignment:
Port 1 or 2 on the Model FS102 Switch
Port 4 on the Model FS104 Switch
Port 8 on the Model FS108 Switch
1 Input Receive Data + Output Transmit Data +
2 Input Receive Data - Output Transmit Data -
3 Output Transmit Data + Input Receive Data +
6 Output Transmit Data - Input Receive Data -
4, 5, 7, 8 Not used Not used
711EA
18
12345678
