Getting to Know Your Wireless Router 4
Back Panel

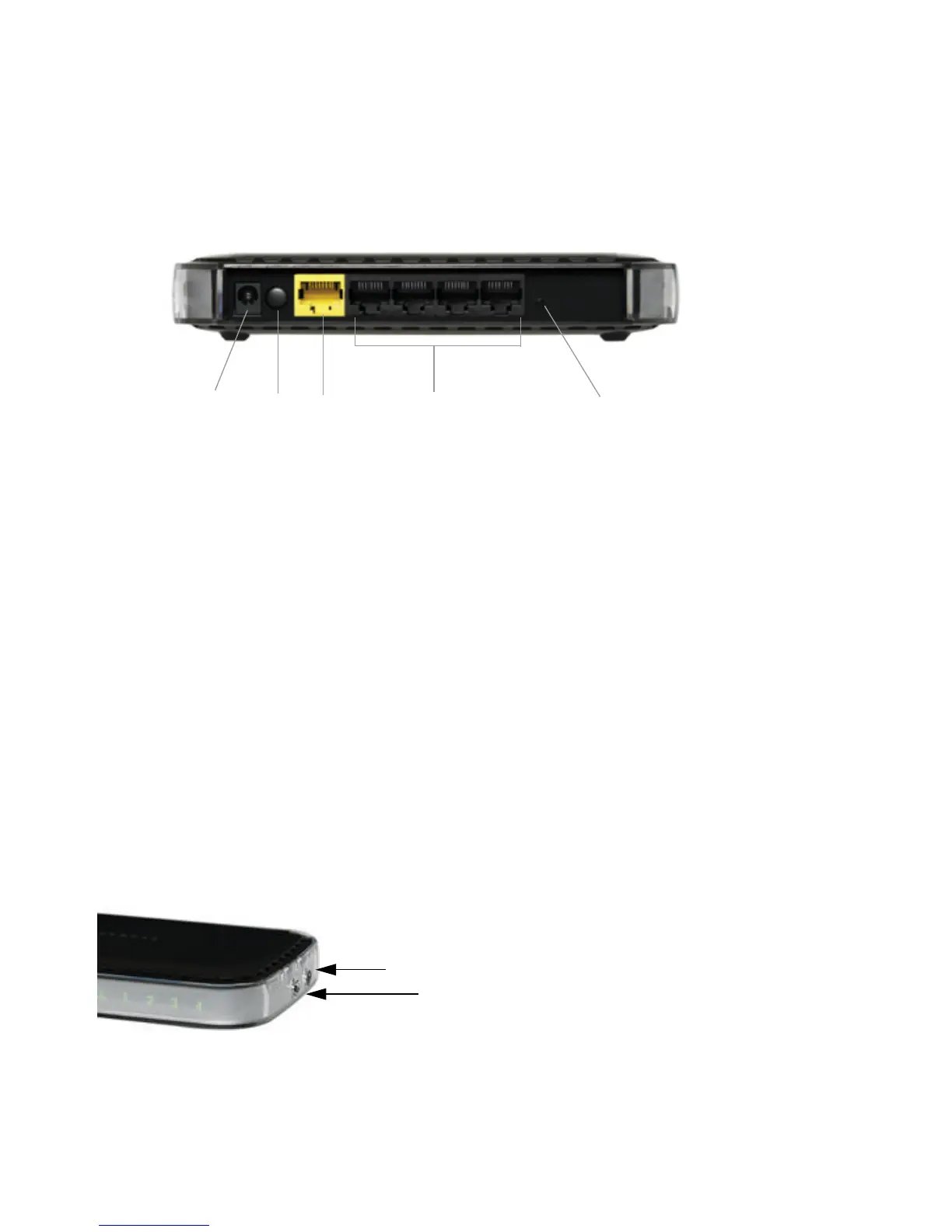

The router back panel, shown in Figure 2, contains port connections.
Viewed from left to right, the rear panel contains the following elements:
1. AC power adapter outlet for connecting the power adapter.
2. Power on/off push-button.
3. Internet/Wide Area Network (WAN) Ethernet port for connecting the router to a cable or DSL
modem.
4. Four Local Area Network (LAN) 10/100 Mbps Ethernet ports for connecting the router to
your local computers.
5. Restore factory settings button. Press for approximately 5 seconds to reset the router to the
factory default settings.
Side Panel
The router side panel is shown in Figure 3.
Figure 2
Figure 3
1
4
2
3
5
1
2
