Wireless N ADSL2+ Modem Router Quick Installation Guide
1
1. Hardware Installation

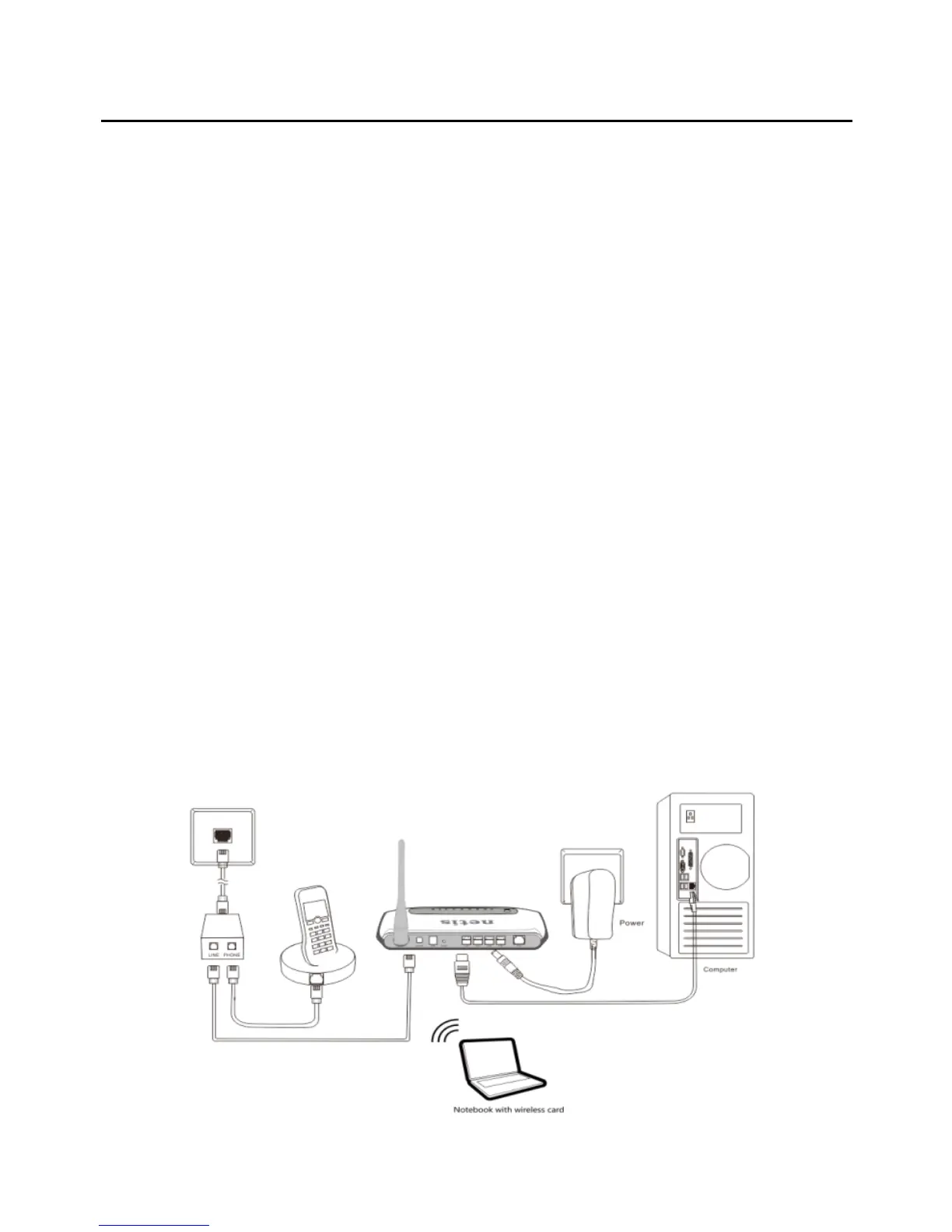

Step 1: Connect the ADSL Line.
Method one: Plug one end of the twisted-pair ADSL cable into the
ADSL LINE port on the rear panel of the modem router, and insert
the other end into the wall socket.
Method two: You can use a separate splitter. The external splitter
has three ports:
• Line: Connect to the wall jack
• Phone: Connect to the phone sets
• Modem: Connect to the ADSL LINE port of the modem router
Step 2: Connect the Ethernet cable. Attach one end of a network
cable to your computer's Ethernet port or a regular hub/switch port,
and the other end to the LAN port on the modem router.
Step 3: Power on the computers and modem router.
Step 4: Attach the power adapter. Connect the power adapter to the
power connector on the rear of the device and plug in the adapter to
a wall outlet or power extension.
To Next Page
