ADSL2+ Modem Router User Manual
28

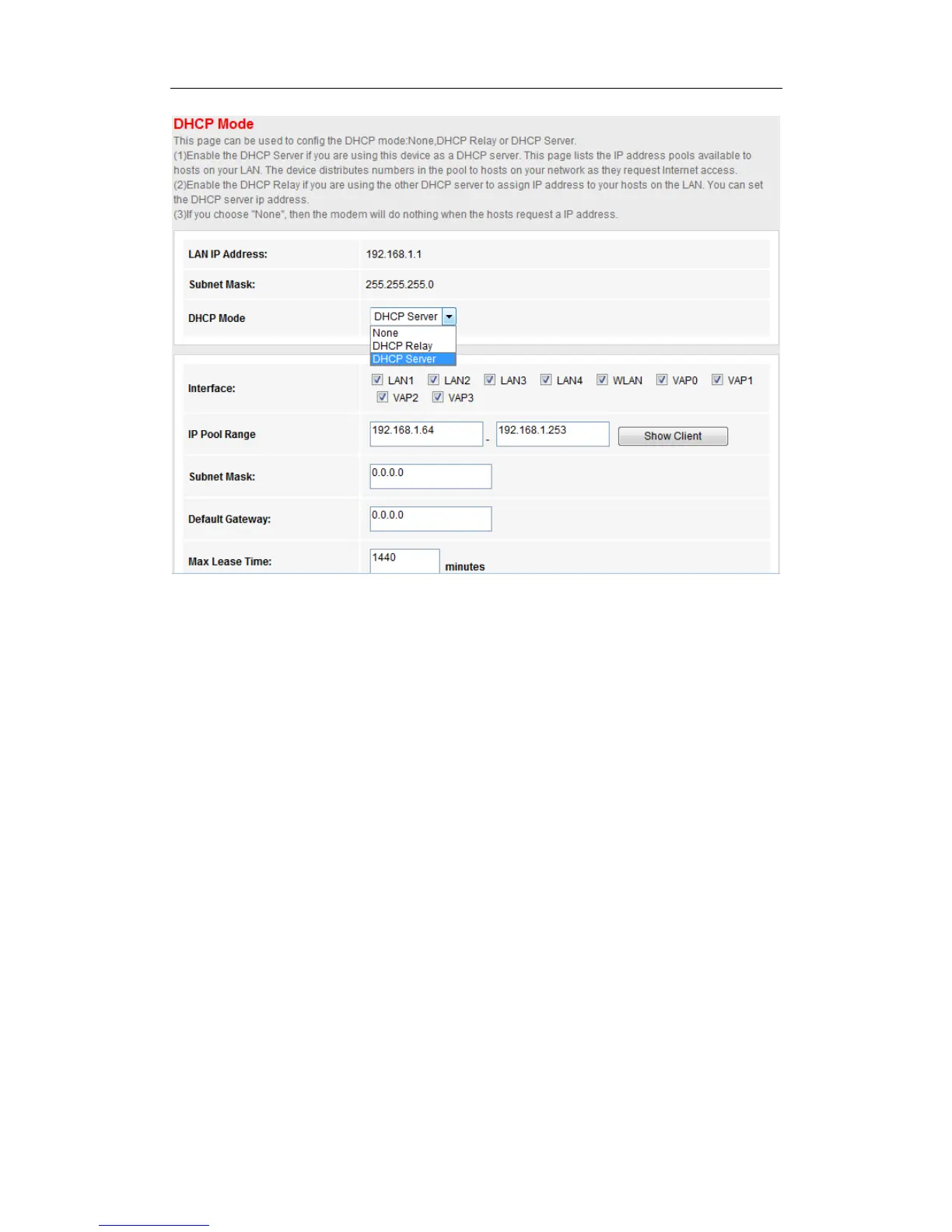

DHCP Mode: the DHCP mode can be DHCP Server, DHCP Relay and None.
Interface: you can specify which interface you want to enable DHCP Server.
IP Pool Range: the DHCP IP pool address. IP Address must be 192.168.1.2 or greater, but must
smaller than 192.168.1.254.
Default Gateway: the default gateway address
Max Lease Time: the time that the DHCP client is allowed to maintain a network connection.
Domain Name: a user-friendly name that refers to the group of hosts ( subnet ) that will be
assigned addresses from this pool
DNS Server: the IP address of DNS server used in option filed of DHCP message.
4.3.2.2.3 DHCP Relay
If you are using the other DHCP Server to assign IP address to your hosts on the LAN, you can set
the relay serverās IP address.
