ADSL2+ Modem Router User Manual
47

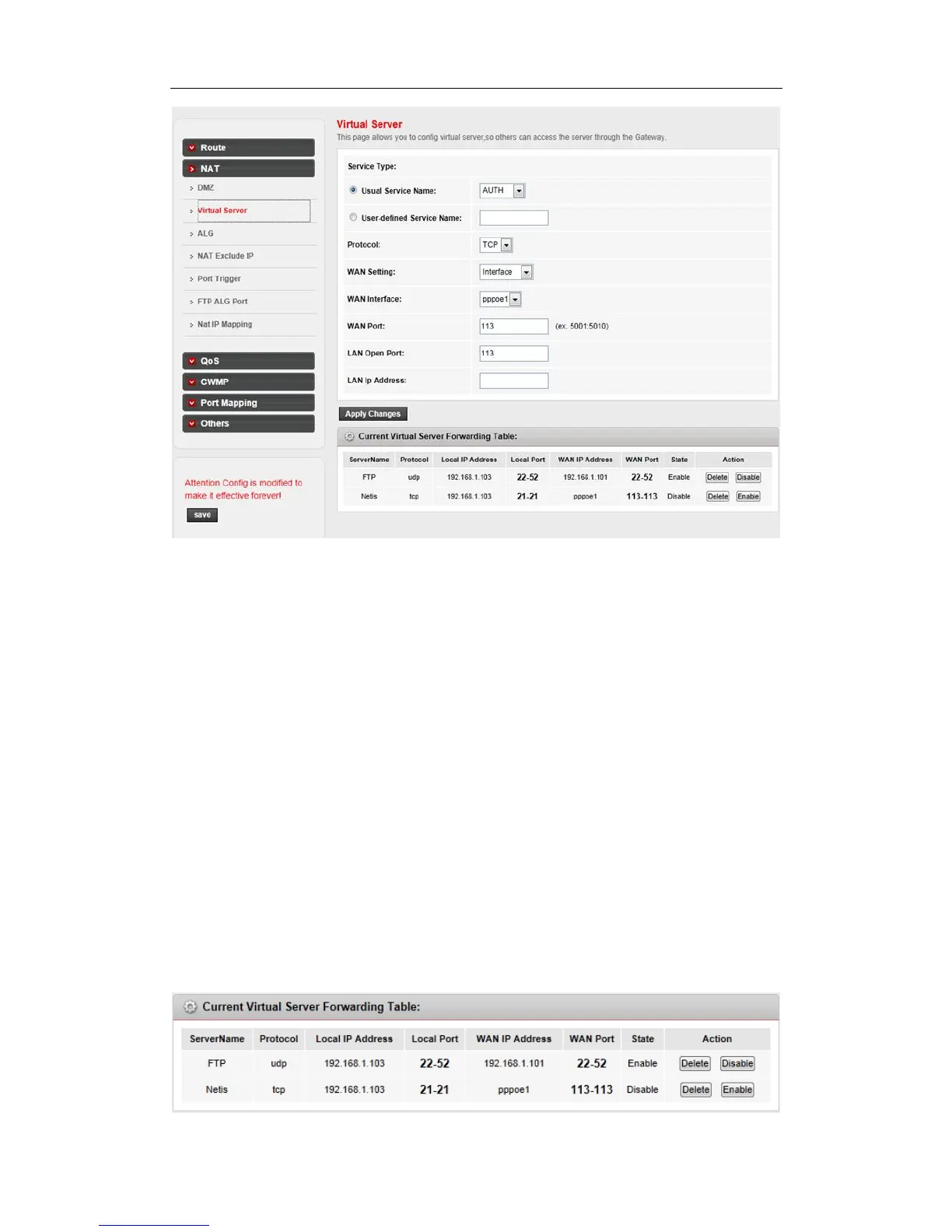

Usual Service Name & User-defined Service Name: the name of this virtual server
Protocol: the protocol of this virtual server used, it include TCP & UDP type.
WAN Setting: the WAN setting of this virtual server used; it can be interface and IP address.
WAN Interface: the interface on which the virtual server used on WAN side
WAN IP Address: the IP address which the virtual server used on WAN side. You can access
this IP and WAN port from WAN side to obtain the service.
WAN Port: the open port on WAN side. It can be either a single port or a port range.
LAN Open Port: Enter the specific start and end port number you want to forward. If it is one
port only, you can enter the end port number the same as start port number. For example, you
want to set the FTP virtual server, you can set the start and end port number to 21.
LAN IP Address: the IP address of the host which provides the service on LAN side.
Current Virtual Server Forwarding Table: This displays the information about the virtual
servers you establish.
