Netopia 3346-ENT ADSL Router Status Lights

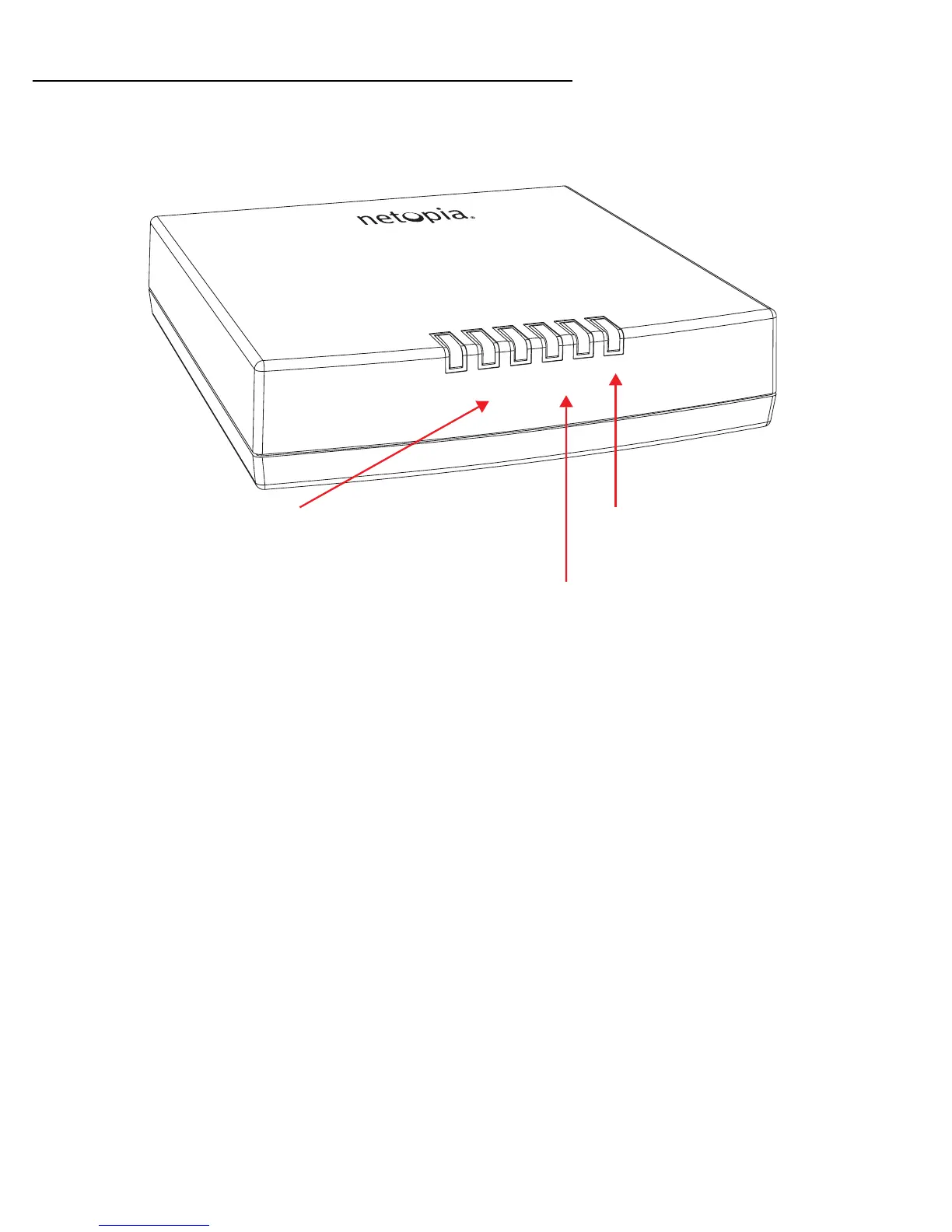

The figure below represents the Netopia 3346-ENT status light (LED) panel.
Netopia 3346-ENT status indicator lights
LAN 1
LAN 2
LAN 3
LAN 4
DSL SYNC
Power
Power:
DSL Sync:
Solid green when trained with the DSL line
Blinks green when traffic is sent or received
LAN 1, 2, 3, 4:
over the Ethernet
Solid green when the power is on
Blinks green with no line attached or training,
Solid green when Ethernet link is established
