2. Installation of Window Sealing Plate Components

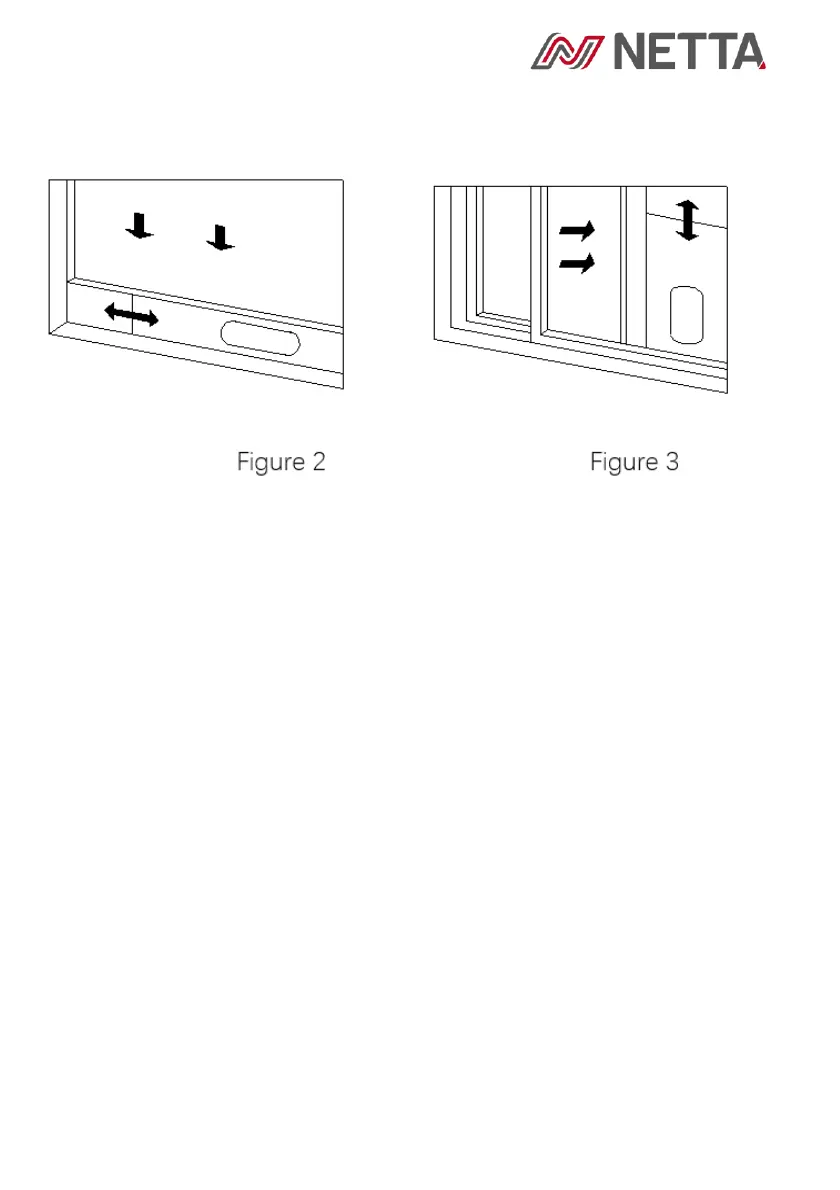

a) Half open the window and mount the window sealing plate assembly to
the window. It can be fitted horizontally or vertically (Fig. 2 and Fig. 3).]
b) Pull the various components of the window sealing plate assembly
open, adjust their opening distance to bring both ends of the assembly
into contact with the window frame and fix various components of the
assembly
c) When installing the window sealing plate assembly, the flat end of the
exhaust pipe joint must be snapped into place. The pipe cannot be
distorted or turned more than 45°. Keep the ventilation of the exhaust
pipe unblocked.
