Neumann.Berlin KH 810 - Appendix; System Block Diagram; Pin Assignment of the XLR Socket

KH 810/870 | I

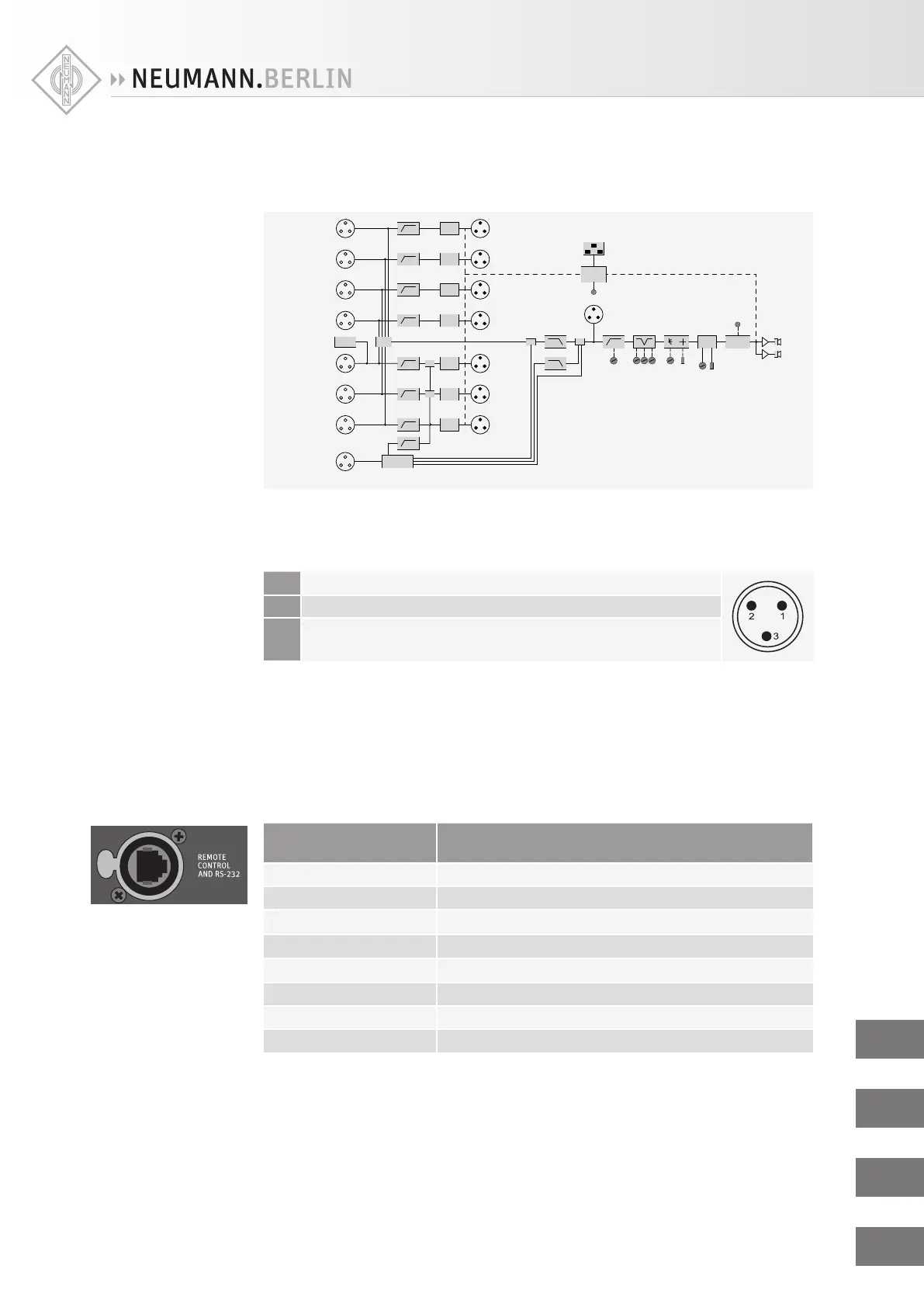

System block diagram/System-Blockdiagramm/
Synoptiquesystème/Diagrama de bloques del sistema
Note: +10 dB LFE Gain setting has no eect when LFE MODE switch is set to “DIRECT IN -> SUB ONLY“
LEFT BACK
RIGHT BACK
CENTER
LFE / SUM
DIRECT IN
LEFT
RIGHT
LEFT
SURROUND
RIGHT
SURROUND
80
80
80
80
80
80
80
Power
on Mute
Low Cut PhaseParametric
LEFT BACK
RIGHT BACK
CENTER
LEFT
RIGHT
LEFT
SURROUND
RIGHT
SURROUND
SUM
0 45
90 135
0 … -12 +4 20 1
-12 120 8
180
Output
Level
Protect
VOL
VOL
VOL
VOL
VOL
VOL
VOL
Σ
Coarse
Limiter /
So Clip
Power
120
80
Power
Amps
Σ
Fine
VOL
Signal
Generator
80
Σ
Σ
Σ
LFE Roung
and Gain
Pin assignment of the XLR socket/Buchsenbelegung XLR/
Brochage de la prise XLR/Asignación de la hembra XLR
1 Audio ground/Audio-Erdung/Masse audio/Toma de tierra de audio
2 Signal +/Signal +/Signal +/Señal +
3 Signal −/Signal −/Signal −/Señal −
Pin assignment of the REMOTE CONTROL AND RS-232
socket/Anschlussbelegung der Buchse REMOTE CONTROL
AND RS-232/Brochage de la prise REMOTE CONTROL AND
RS-232/Asignatión de conexiones de la hembra REMOTE
CONTROL AND RS-232
Function/Funktion/Fonc-
tion/Función
RJ-45 pins/Buchsenbelegung der RJ-45 Pole/Cablage des
broches RJ-45/Asignación de las hembras de los polos RJ-45
Volume control 1
LOGO voltage 2
GND
*
3
RS 232 TX
*
4
RS 232 RX
*
5
Supply voltage +3.3 V 6
Bypass bass management 7
+10 dB LFE gain 8
*
RS-232 data connection
EN
DE
FR
ES
