6 | KH 810/870
EQUALIZER
PARAMETRIC
SERIAL NUMBER
OUTPUT
INPUT
PIN 1 CONNECTED
INPUT
GROUND LIFT
DIRECT IN
SUM
LFE / SUM
RIGHT
BACK
LEFT
BACK
RIGHT
SURROUND
LEFT
SURROUND RIGHT CENTER LEFT
DESIGNED IN GERMANY -
MADE IN IRELAND
There are no user serviceable parts
inside this product. Repairs should only
be performed by authorized service
personnel. Options and accessories
are fitted at the user's own risk.
All safety and warning notices found in
the user manual should be observed.
Specifically, do not expose to moisture,
liquids, flames, heat, vibration, dust, or
direct sunlight. Do not block or cover
heatsinks or vents, and leave adequate
space for ventilation.
Check mains power voltage selection
before connecting to correctly earthed
mains power.
This loudspeaker is capable of
producing a sound pressure level in
excess of 85 dB. This may cause
permanent hearing damage so user
caution is recommended. Noise
exposure is a function of SPL and time,
so observe local regulations when
listening at high levels for a long time.
Hearing protection may be required.
CAUTIONS AND WARNINGS
ACTIVE STUDIO SUBWOOFER
7.1 CHANNEL HIGH DEFINITION BASS MANAGER
AC 100-120 V
AC 220-240 V
ON
OFF
Internal fuse type and rating:
5x20 mm SB 5.0 A
Max. power consumption:
290 W (KH 810) / 550 W (KH 870)
AC 100-120 V /
220-240 V
~ 50-60 Hz
OPTIONAL
POWER
ON / OFF
REMOTE
MAINS POWER
MAINS VOLTAGE
SELECTION
0
-12
40 Hz
B8 9 0 A
7
6
5
4

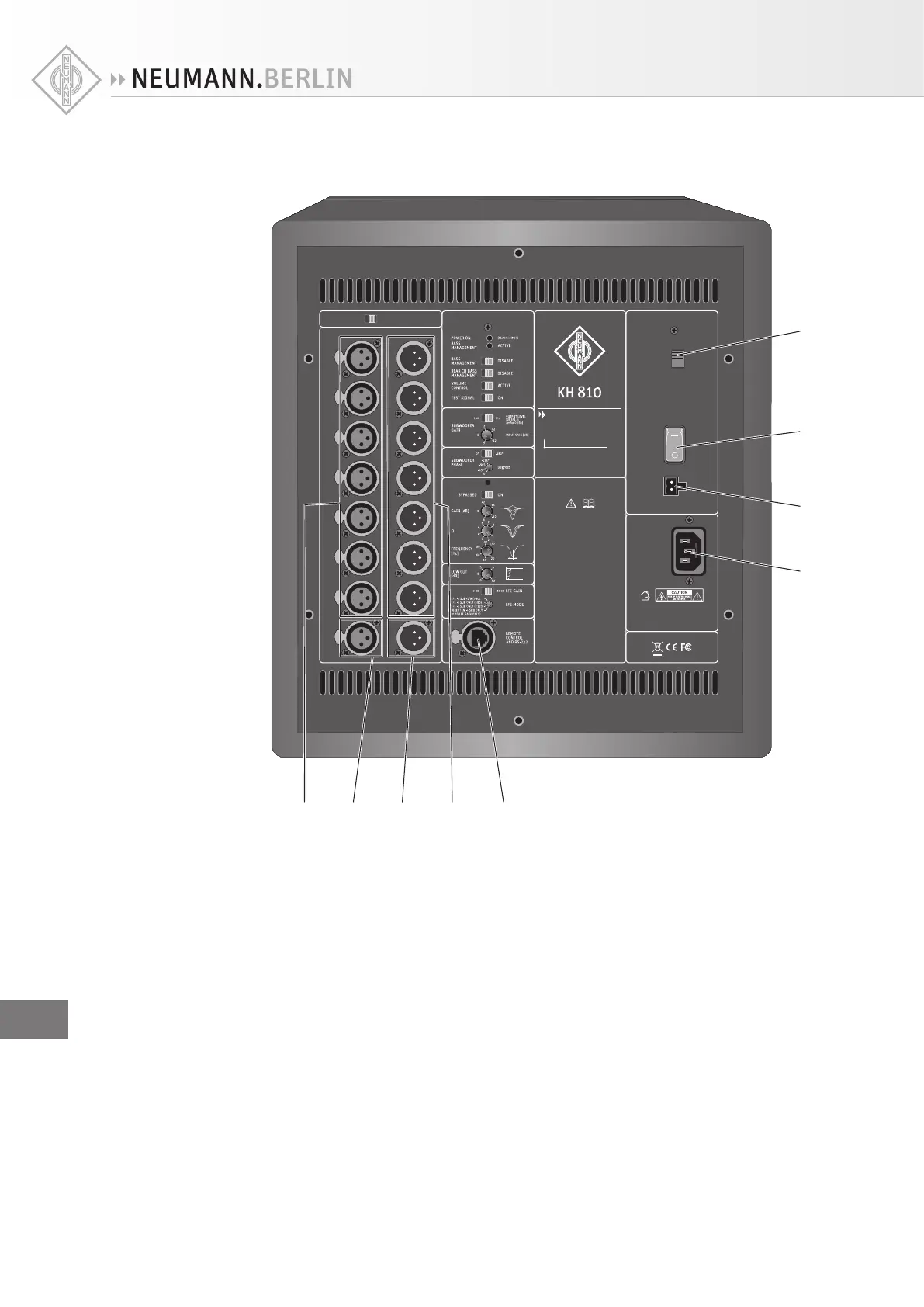

4 MAINS VOLTAGE SELECTION switch
5 MAINS POWER switch
6 OPTIONAL REMOTE POWER ON/OFF socket
7 IEC mains socket with protective ground contact
8 Sockets
INPUT | LEFT, CENTER, RIGHT
INPUT | LEFT SURROUND, RIGHT SURROUND
INPUT | LEFT BACK, RIGHT BACK
9 INPUT | DIRECT IN / LFE /SUM socket
0 OUTPUT | SUM socket
A Sockets
OUTPUT | LEFT, CENTER, RIGHT
OUTPUT | LEFT SURROUND, RIGHT SURROUND
OUTPUT | LEFT BACK, RIGHT BACK
B REMOTE CONTROL AND RS-232 socket
