User manual
14 Driving the crawler excavator
The front is the side with the dozer blade.
Raise the excavating bucket and the dozer
blade.
14.1 Driving
The excavator can be controlled using the drive levers or the foot
pedals.
Forward:
Reverse:
Push left and right drive levers forward
Pull left and right drive levers toward seat
If a 180° rotation has been carried out (dozer
blade
at rear), the drive levers have the opposite
effect.
ATTENTION:
Travel on dangerous ground and on slopes
CAUTION: Due to the narrow width of the excavator, extreme
caution is
required when traveling on dangerous ground or on slopes.
On a slope which is steeper than 15° the superstructure
must never be swivelled crosswise to the direction of travel.
When traveling, the working equipment (bucket, grab, etc.)
must always be kept 30 - 40 cm above the ground and the
dozer blade must be raised.

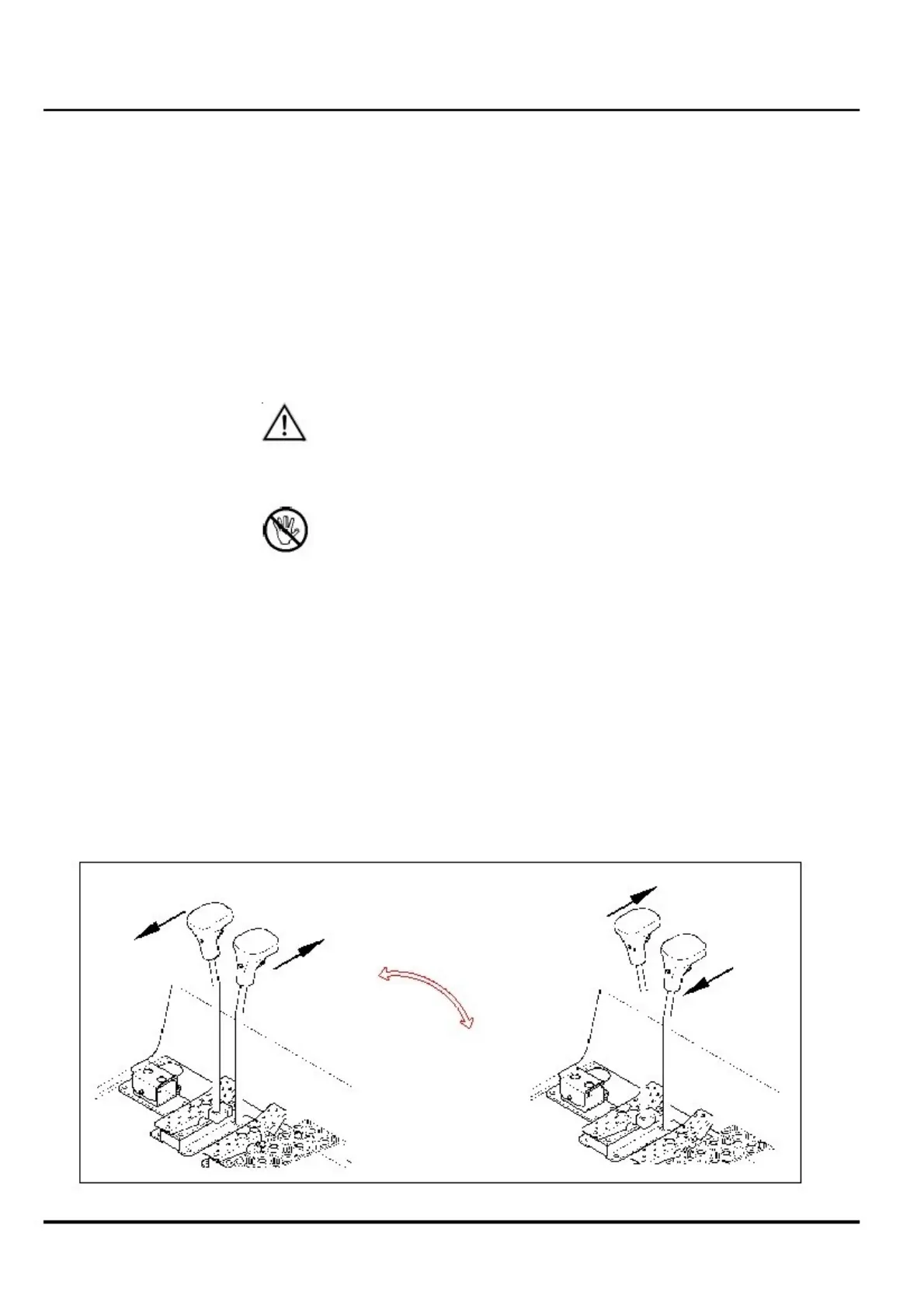

14.2 Turning
Turning left:
Turning right:
Pull left drive lever back and push right drive
lever
forward
Push left drive lever forward and pull right drive
lever
back
left
right
9707672_user manual_en
- 50 -
