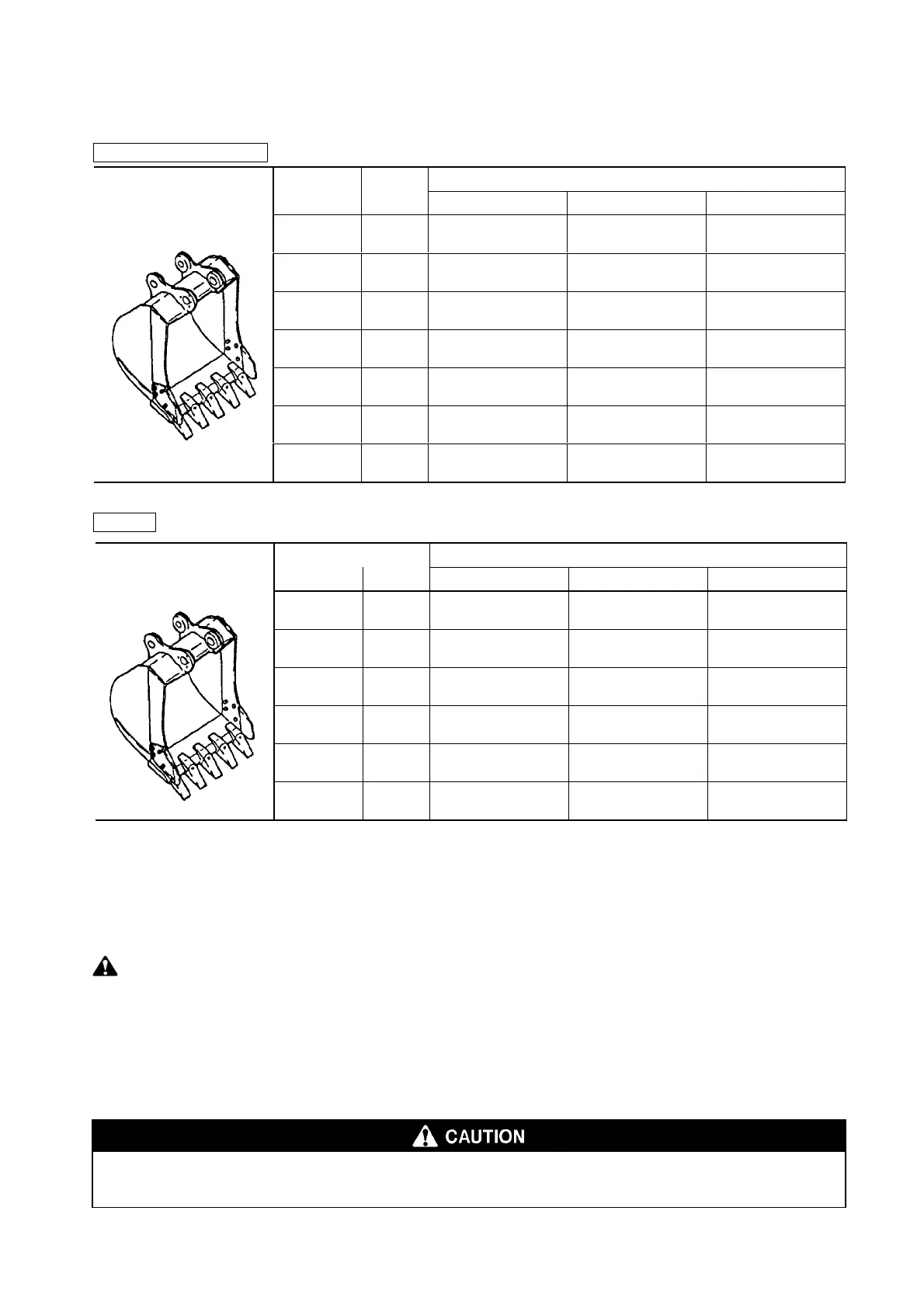

E135SR L – E135SR LC
E115SR
Applicable Arm
Hoe bucket
Heaped
capacity
m
3
(cu･yd)
Struck
m
3
(cu･yd) 2.1m (6′11″) Arm 2.45m (8′) Arm 2.95m (9′8″) Arm
0.24(0.31)
0.20
(0.26)
○ ○ ○
0.31(0.41)
0.23
(0.3)
○ ○ ○
0.38(0.50)
0.28
(0.37)
○ ○ ◎
0.45(0.59)
0.35
(0.46)
○ ○ △
STD
0.50(0.65)
0.38
(0.50)
○ ◎ ×
0.57(0.75)
0.43
(0.56)
◎ △ ×
0.70(0.929
0.50
(0.65)
△ × ×
Applicable Arm
Hoe bucket
Heaped
capacity
m
3
(cu･yd)
Struck
m
3
(cu･yd) 1.9m (6′3″) Arm 2.2m (7′3″) Arm 2.7m (8′10″) Arm
0.17(0.22)
0.13
(0.17)
○ ○ ○
0.23(0.30)
0.19
(0.25)
○ ○ ○
0.30(0.39)
0.22
(0.29)
○ ○ ○
0.37(0.48)
0.27
(0.35)
○ ○ ◎
STD
0.45(0.59)
0.39
(0.51)
○ ◎ △
0.51(0.67)
0.35
(0.46)
◎ △ ×
2-17
8. COMBINATIONS OF ATTACHMENT
NOTE :
◎ Standard combination
○ General operation : Excavation or loading of sand, gravel, and clay
△ Light operation : Mainly loading or loose gravel (e.g., cultivation or loading of sand or gravel)
× Prohibited combination : There are problems from the view points of strength and stability.
z Use the attachments recommended by the Dealer. Reinforcement of arm allows to use it as
nibbler and breaker.
The trouble due to the use in the condition "Use not allowed" described in the above table is not
included in our responsibility
z When bucket marked by △ has been attached or nibbler has been attached on long arm, the
specified stability may not be obtained. So add weight 600kg (1,320 lbs) in add-on type as
required.
If any other bucket, except for the backhoe bucket, is turned over and used for excavation, damage
to the arm and bucket ma
occur.
