SECTION 88 - ACCESSORIES
88-34
Warning Light Bulb Replacement
Amber lens with bulb #9841566
Bulb only #529068
Op. 55 404 10

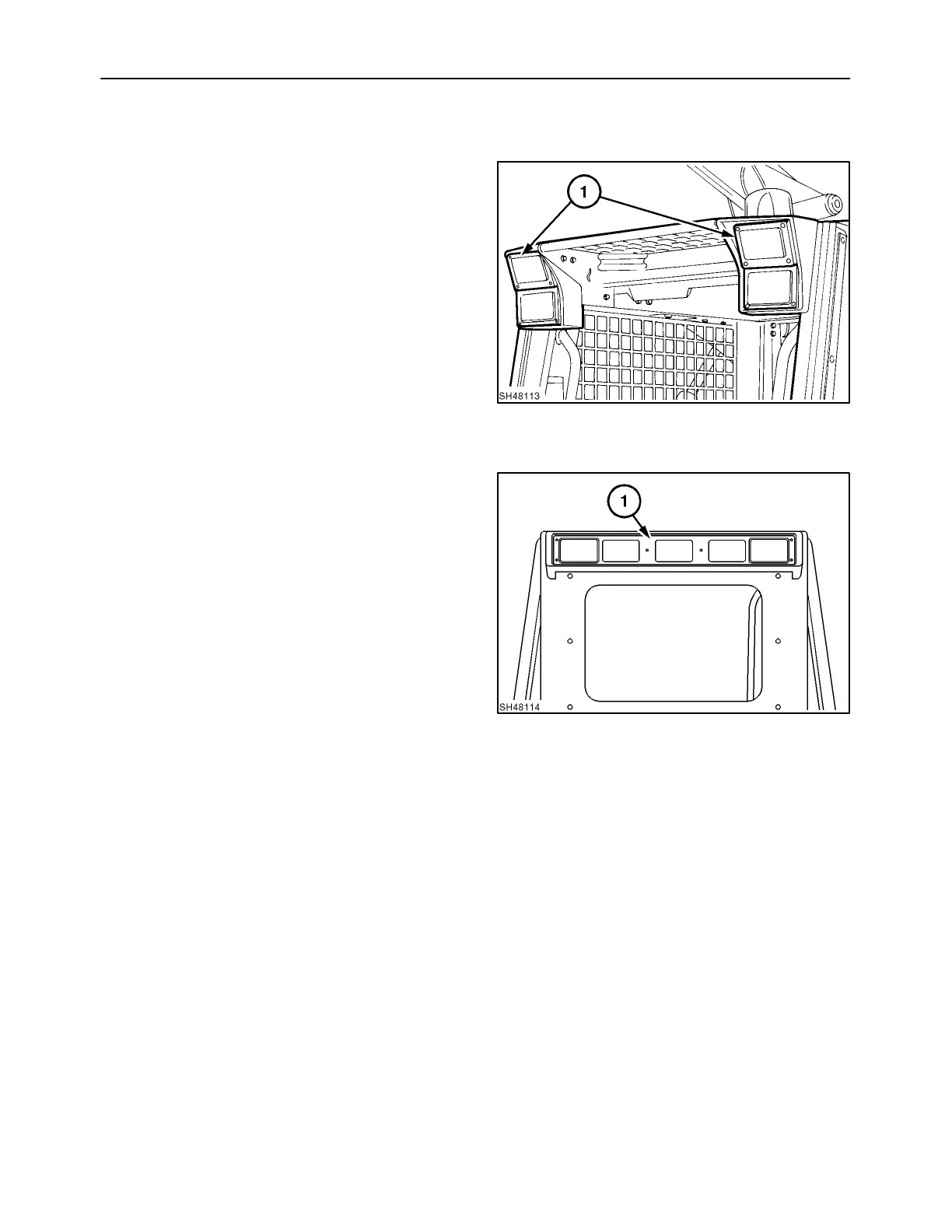

Front Light
1. Remove the bezel, 1, retaining screws and re-
move lens from support.
2. Disconnect the wire harness from the bulb hold-
er.
3. Rotate the light bulb holder and element assem-
bly from the lens and remove from the lens.
4. Insert the new bulb into the lens and rotate to lock
into position, using caution not to touch the bulb
element.
IMPORTANT: Touching the light bulb element may
damage the element and cause a premature failure.
64
Op. 55 404 10
Rear Light
1. Remove the bezel, 1, retaining hardware and re-
move the lens from the light bar.
NOTE: The remaining light lens will be loose in the
light bar.
2. Disconnect the wire harness from the bulb hold-
er.
3. Rotate the light bulb holder and element assem-
bly from the lens and remove from the lens.
4. Insert the new bulb into the lens and rotate it to
lock into position, using caution not to touch the
bulb element.
IMPORTANT: Touching the light bulb element may
damage the element and cause a premature failure.
65
