7-MAINTENANCE

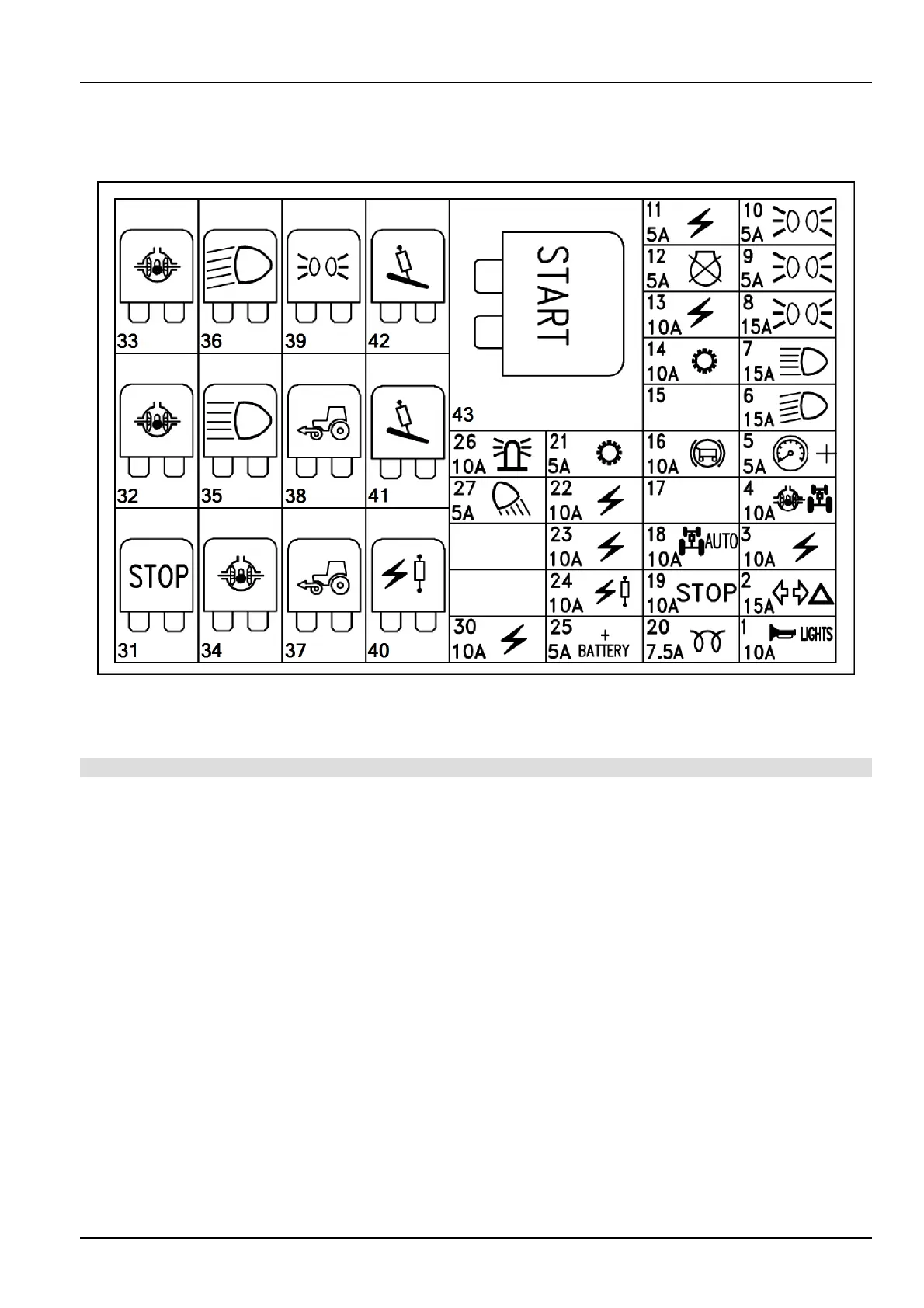

Fusesandrelayslocation
Modelwithoutcab
MOIL13TR00724FA1
NOTICE:Dependingonyourversionsomecomponentsdescribedbelowmightnotbepresent.
Fuses
Ref.
FuseProtectedcircuits
110 A
Horn,drivingbeamashing
215 A
Turnandhazardlights.
310 A8 Asocket8 A
410 A
Differentiallockcircuit,four-wheeldrivecircuit.
5
5 A
+instrumentcluster,electronichydraulicliftswitchesandlamps
615 A
Dippedbeamheadlightcircuit.
7
15 A
Fullbeamheadlightcircuit.
815 A
Circuitofpositionlightsorworklightsfor7-polesocket.
95 A
Frontleft-handandrearright-handpositionlights,instrumentclusterlight.
105 A
Frontright-handandrearleft-handpositionlights,positionlightsindicatorcircuit.
115 A
Enginestartingsafetiescircuit.
125 A
Engineshutdownelectromagnet.
1310 A
Stabilizerlockcircuit.
1410 A
PowerShuttlecircuit
15
-
Notused
1610 A
Trailerbrakeandhydraulicadjustmentcircuit.
17
-
Positionnotused.
1810 APermanent4WDcircuit
1910 A
Brakelightscircuit.
207.5 A
Gridheaterunitcircuit.
215 A
PowerShuttlelever
2210 A
Circuitforsecondandthirddistributor.
7-49
