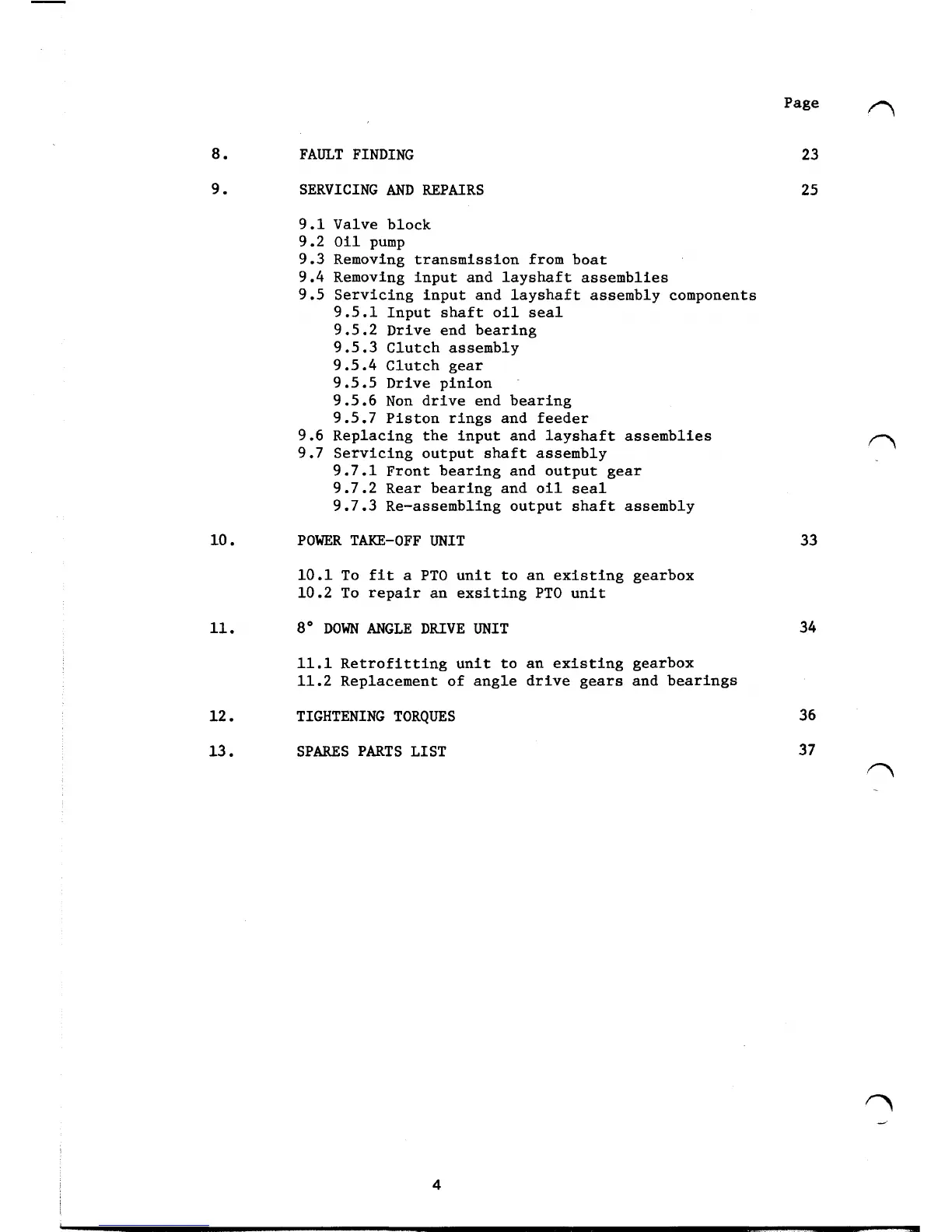

Page
8. FAULT FINDING
23
9.
SERVICING AND REPAIRS
25
9.1 Valve block
9.2 Oil pump
9.3 Removing transmission from boat
9.4 Removing input and layshaft assemblies
9.5 Servicing input and layshaft assembly components
9.5.1 Input shaft oil seal
9.5.2 Drive end bearing
9.5.3 Clutch assembly
9.5.4 Clutch gear
9.5.5 Drive pinion
9.5.6 Non drive end bearing
9.5.7 Piston rings and feeder
9.6
Replacing the input and layshaft
assemblies
r"'\
9.7 Servicing output shaft assembly
9.7.1 Front bearing and output gear
9.7.2 Rear bearing and oil seal
9.7.3 Re-assembling output shaft assembly
10. POWER TAKE-OFF UNIT
33
10.1 To
fit a PTO
unit to an existing gearbox
10.2 To repair an exsiting PTO unit
11. 8° DOWN ANGLE DRIVE UNIT
34
11.1 Retrofitting unit to an existing
gearbox
11.2 Replacement of angle
drive gears
and bearings
12. TIGHTENING TORQUES
36
13. SPARES PARTS LIST
37
r""'\
4
