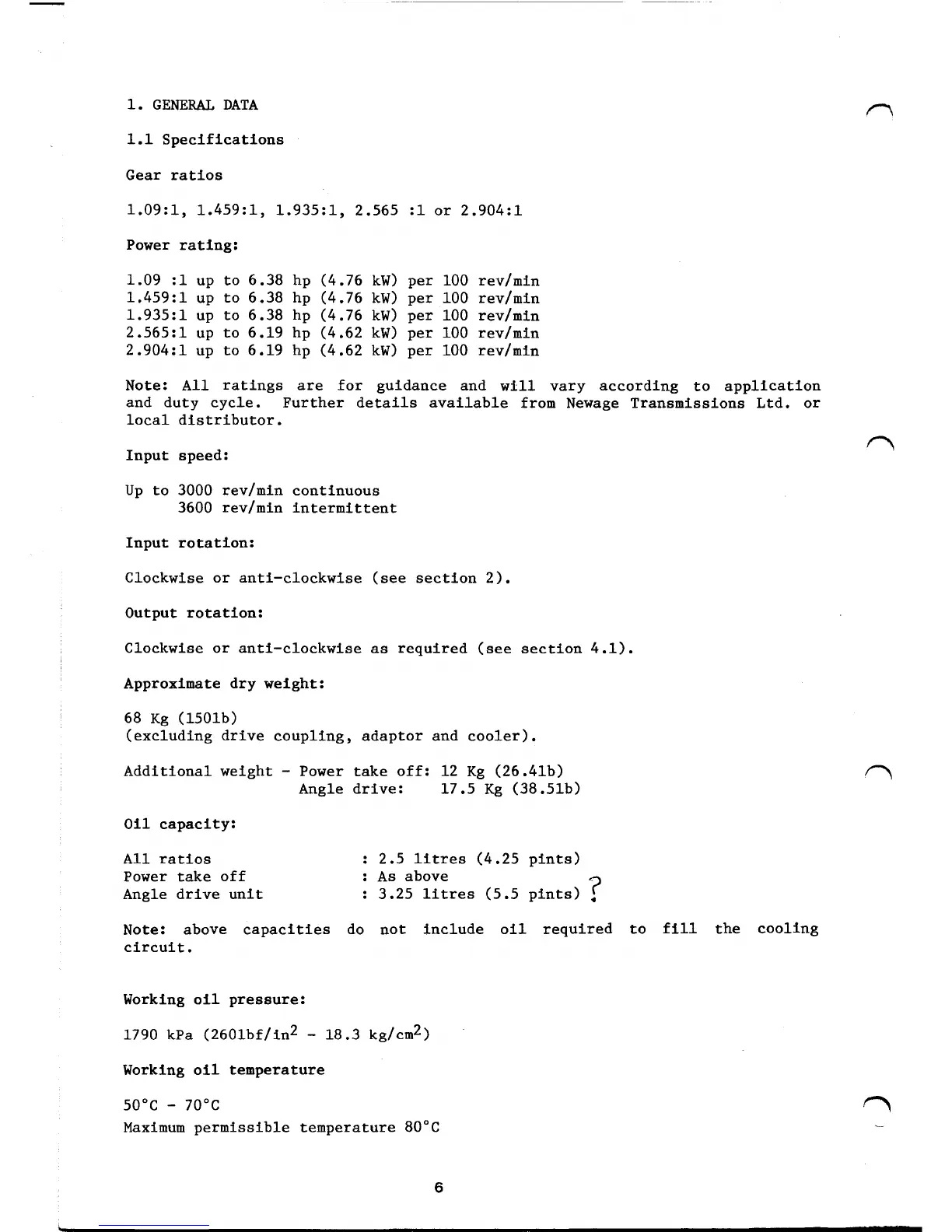

1. GENERAL DATA
1.1 Specifications
Gear ratios
1.09:1, 1.459:1,
1.935:1, 2.565 :1 or 2.904:1
Power rating:
1.09 :1 up to 6.38 hp (4.76 kW) per
100 rev/min
1.459:1 up to 6.38 hp (4.76 kW) per
100
rev/min
1.935: 1 up to 6.38 hp (4.76 kW) per
100 rev/min
2.565:1
up to 6.19 hp (4.62 kW) per 100 rev/min
2.904:1
up to 6.19 hp (4.62 kW) per
100
rev/min
Note: All ratings are for guidance and will vary according to application
and duty cycle. Further details available from Newage Transmissions Ltd. or
local distributor.
Input speed:
Up to 3000 rev/min continuous
3600 rev/min intermittent
Input rotation:
Clockwise or anti-clockwise (see section 2).
Output rotation:
Clockwise or anti-clockwise as required (see section 4.1).
Approximate dry weight:
68 Kg (1501b)
(excluding drive coupling, adaptor and cooler).
Additional weight - Power take off: 12 Kg (26.41b)
Angle drive: 17.5 Kg (38.51b)
Oil capacity:
All ratios
Power take off
Angle drive unit
2.5 litres (4.25 pints)
As above ?
3.25 litres (5.5 pints)
4
Note: above capacities do not include oil required to fill the cooling
circuit.
Working oil pressure:
1790 kPa (260lbf/in2 - 18.3 kg/cm2)
Working oil temperature
50°c - 10°c
Maximum permissible temperature 80°C
