NewMar SPM-200 - 1 Quick Reference Guide

To Next Page

To Previous Page

P.O. Box 1306

Newport Beach

California 92663

Phone: 714-751-0488

Fax: 714-957-1621

E-Mail: techservice@newmarpower.com

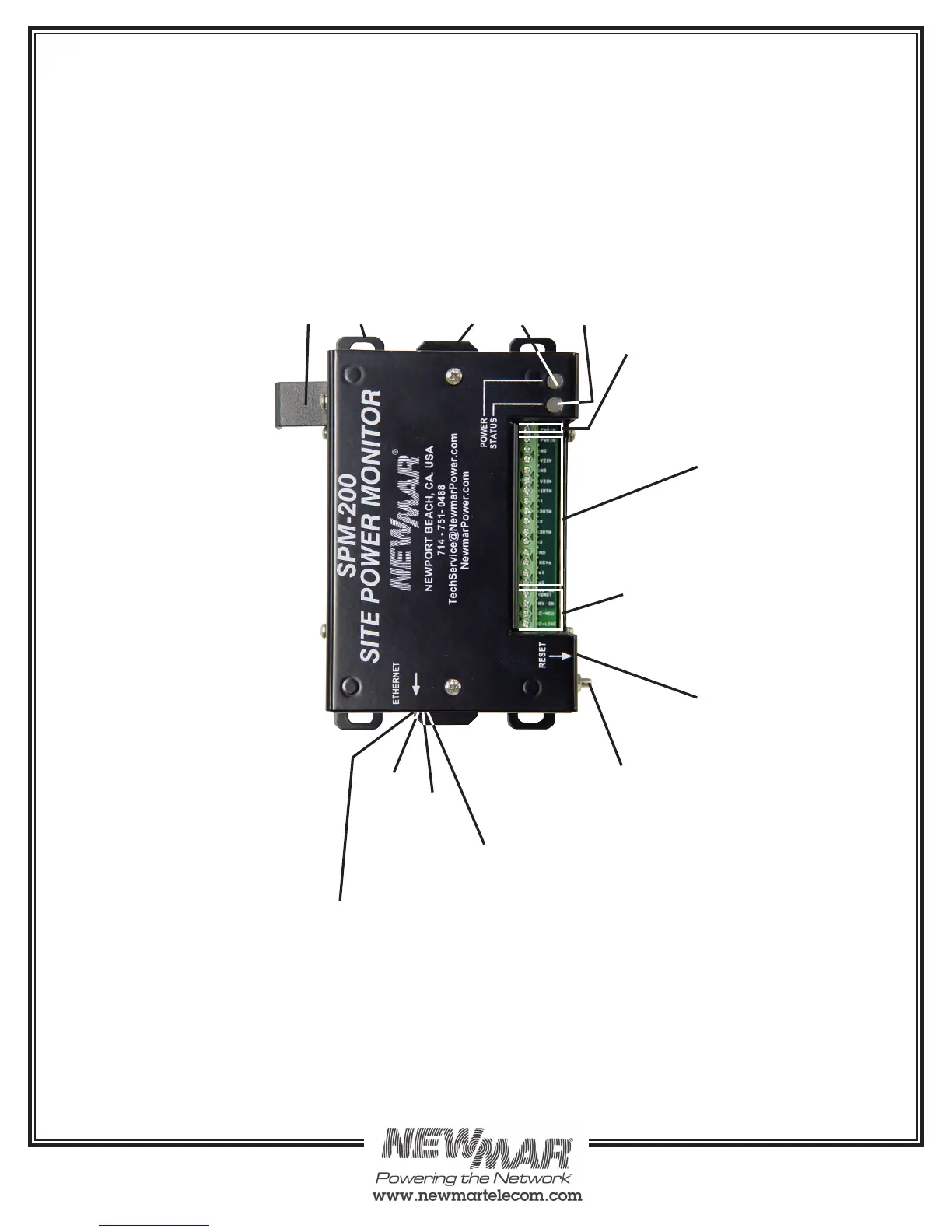

1.0 Quick Reference Guide

Link LED, Pg. 8

Ethernet / Cross-Over Cable / Data

Logging Connection, Pg. 5

Static IP Address Reset Button,

Pg. 30 & 32

Link Activity LED, Pg. 5

Earth Ground Stud,

Pg. 4

System Reset

Button (factory only)

0 - 264 VAC Sense,

Pg. 6

Firmware Update Access: Check www.newmartelecom.com/Site_Power_Monitor/Firmware_Update/Firm-

ware.html for ﬁrmware updates. See page 23 for details.

DC Voltage, Current,

and Sensor / Detector

Ports, Pg. 6

DC Power Input, 11 - 60 VDC,

Pg. 6

Activity Status LED,

Pg. 2

DC Input Power OK

LED, Pg. 8

Ambient Temperature

Sensor, Pg. 3

Panel / Wall Mounting

Flanges, Pg. 3

Rack Mounting Options,

Pg. 4

DIN-Rail Mounting Flanges,

Pg. 3
