NewTeam 1500-XT - Spare Parts Listing

Spare Parts Listing
10
NEWTEAM 1500-XT
NewTeam 1500-XT
Item No. Part No. Description
1. SP-087-0105 * Base Assembly
2. SP-087-0507 * Front Cover
3. SP-087-0110 Pump Unit
4. SP-087-0097 Motor Cover
5. SP-087-0127 Pipe Connection
6. SP-490-0014 Front Cover Screws (not shown)
7. SP-087-0129 Latching Switch (not shown)
8. SP-086-0060 Long Inlet Elbow (x2) (not shown)
9. SP-087-0091 TPE Cover
10. SP-087-0154 Mixer Valve Complete
11. SP-087-0505 * Temperature Control Knob
12. SP-087-0503 * Start/Stop Button
13. SP-087-0504 * Shower Boost Button
14. SP-280-0100 * Spirit Rail & Slider Assembly (not Shown)
15. SP-280-0033 Soap dish/Rail End Shelf (not shown)
16. SP-280-0024 * Rail End Cap (not Shown)
17. SP-285-0820 * Hose (not Shown)
18. SP-168-0204 * Handset (not Shown)
19. SP-087-0230 Solenoid (not Shown)
* please state colour
5
10
1
9
4
3

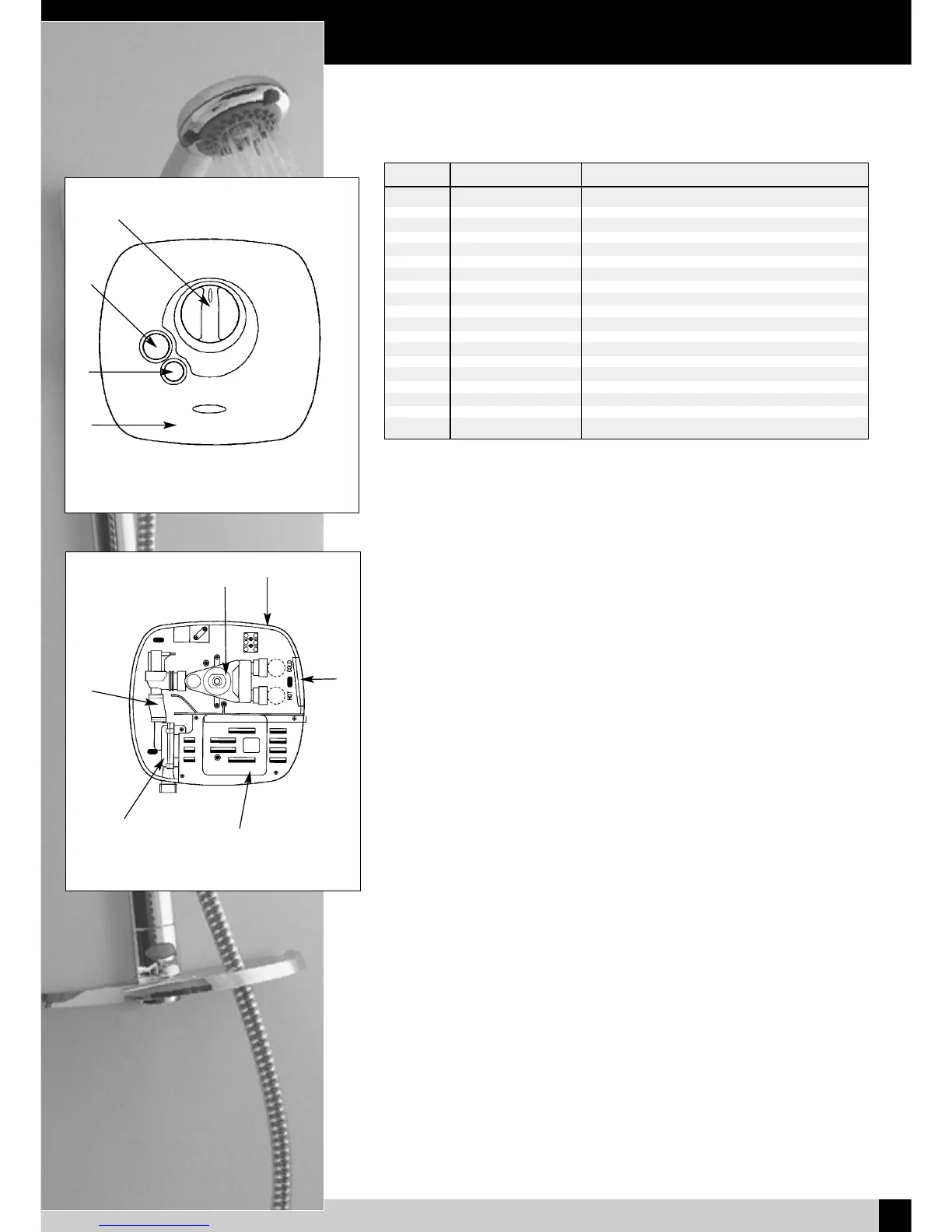

Fig 10 - Front View
Fig 11 - Inside View
11
12
13
2
