Assembly Instruction

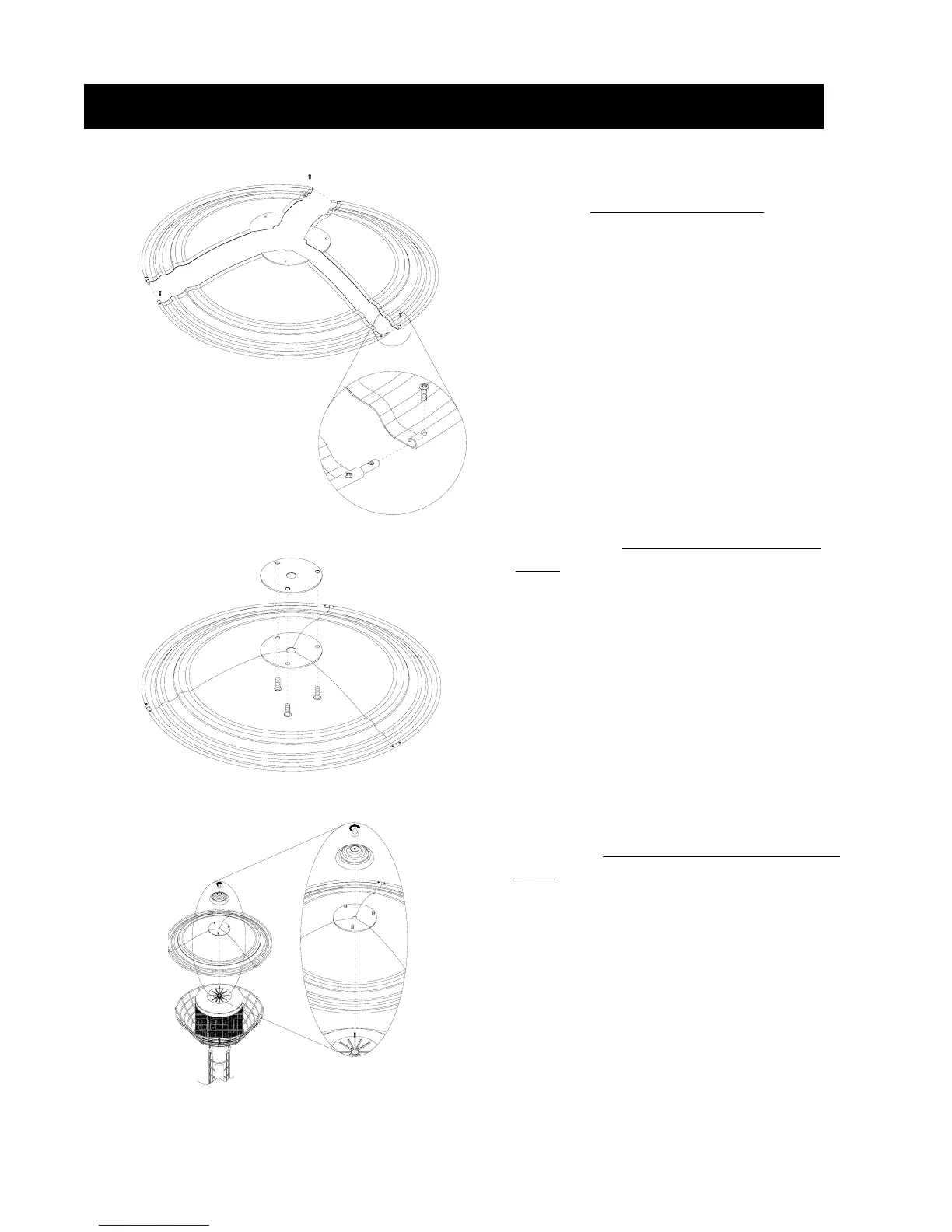

STEP 9. Reflector Assembly
● Align the three pieces of the
Reflector as shown.
● Assemble using the three
Reflector Connecting Poles and 6
pcs 5/32” x 8mm screws. Insert the
Reflector Connecting Poles into the
curled edge of the reflector and align
the screw holes with the holes in the
Reflector. Insert and tighten the
screws.
STEP 10. Attach the Reflector
Plate
● 3pcs 1/4” x 10mm screws, 3pcs
1/4” spring washer and 3pcs 1/4” flat
washer are needed for this assembly.
● Align the holes in the Reflector
Plate with those in the Reflector and
insert the screws from the underside
of the Reflector into the holes in the
Reflector Plate and tighten.
9
STEP 11. Attach the Reflector Nut &
Post
● Screw Threaded Ends Stud into the
Emitter top. Turn the Reflector Nut
onto the Stud and tighten.
● Place the Reflector Assembly and
Reflector Dome Cap through Threaded
Ends Stud onto the Emitter top.
Screws the Reflector Nut onto the
Reflector Dome Cap.
To Next Page
