4. Connect the red trigger wire to the positive wire of the
reverse light by wrapping the two wires firmly together. Use
electrical tape or wire caps (Not provided) to wrap the
connection and prevent any exposed wires.
Step 5: Connect the red trigger wire to one of the reverse
lights:
1. Locate your reverse lights. The location will be different
from vehicle to vehicle. If you cannot locate them: consult
your vehicle owner's manual for model-specific information,
contact your local dealership, or ask a professional for
assistance.
2. Once you have located the lights, identify the positive wire
leading to the reverse lights and the red trigger wire on the
rear camera extension cable.
3. To connect the red trigger wire to the positive wire from
the reverse light you will need to strip a small section of the
insulation from the reverse light wire (Note: You do not need
to disconnect the wire to do so). Strip a small section of

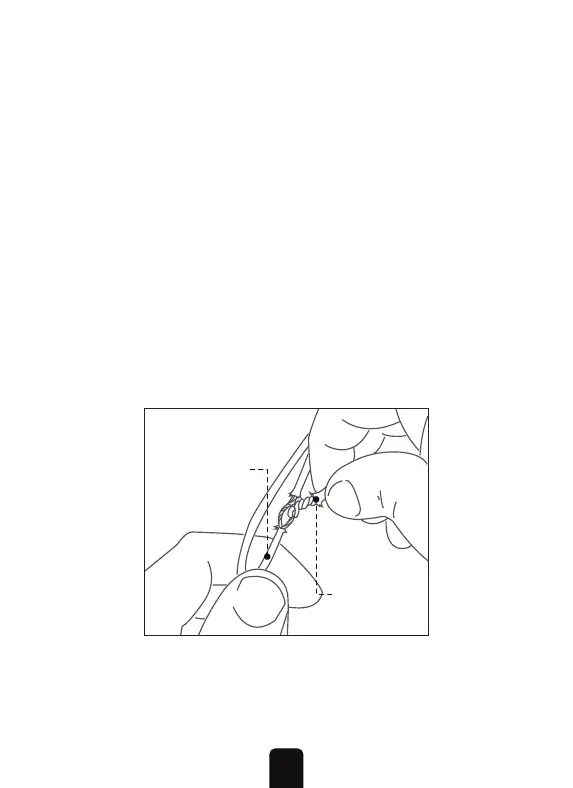

insulation from the middle of the wire as shown below in a
convenient location.
Red
trigger wire
Positive wire of
reserve light
