Page 10/90 GEO M12 GENERAL SET-UP INSTRUCTIONS
2.2.2 MSUB18-I connectors

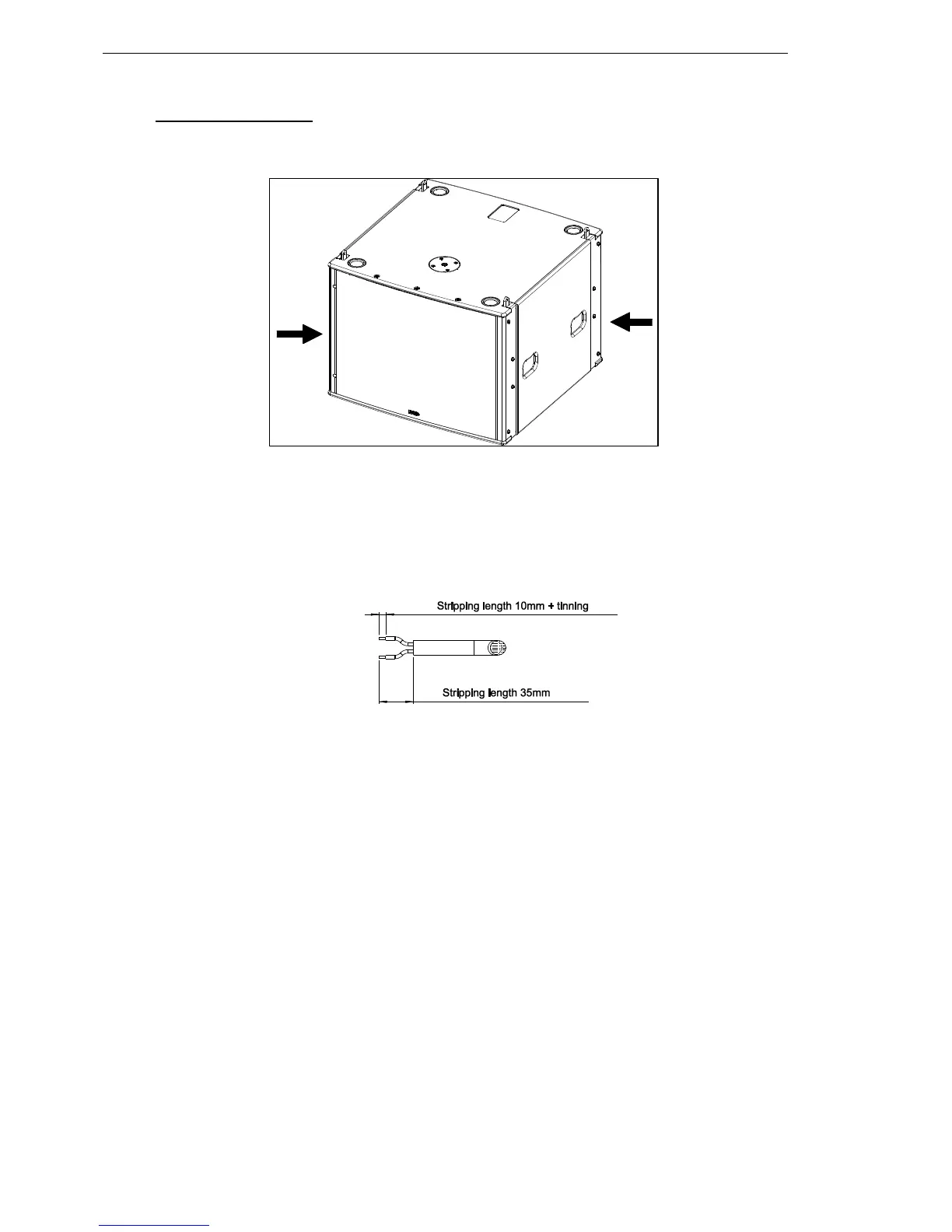

MSUB18-I are connected through 2 fast connectors located behind the corner plates as in drawing below.
In order to connect for installation:
- Remove the corner plates.
- Pass the cables through corner plate openings (maximum cable outside diameter is 11mm / 0.4”,
maximum gauge wire is 2.5 mm
2
/ AWG13 for solid cable and 4 mm
2
/ AWG11 for multi-stranded
cable)
- Prepare cable as below
- Connect to the fast connectors (+): Brown (or Red) / (-): Blue (or Black).
- Remount the corner plate.
