GEO M12 HARDWARE SETUP PROCEDURE Page 35/90

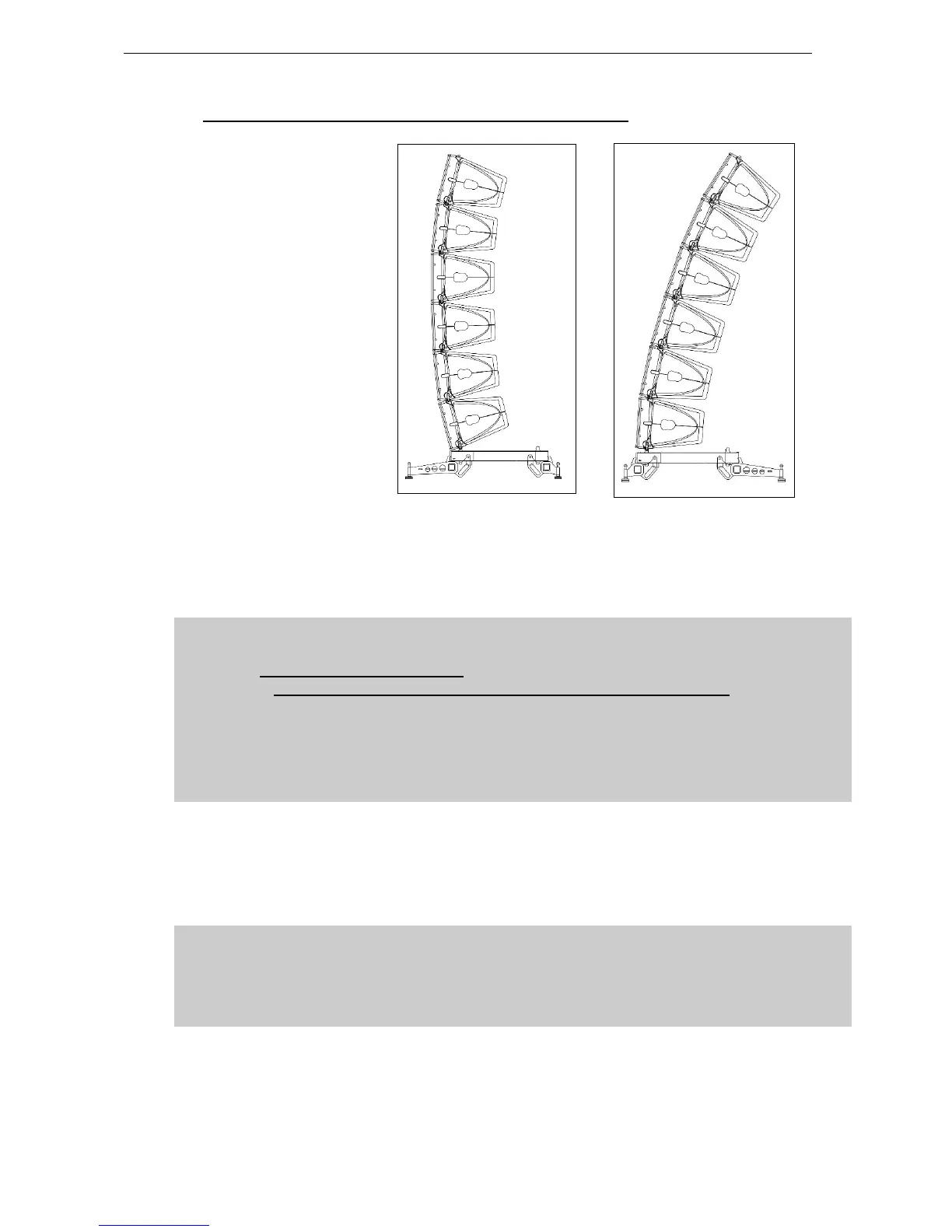

6.3.3 GEO M12 only on Touring Bumper with stacking extensions
Required item
- 1 x VNT-BUMPM12
- 1 x VNT-GSTKM10M12S
- 1 x VNT-GSTKM10M12L
IMPORTANT
Ground stack assembly VNT-BUMPM12 + VNT-GSTKM10M12S + VNT-GSTKM10M12L is
rated for a maximum of 6 x GEO M12 in any inter cabinet angle configuration with +/-12°
initial angle, provided this device is assembled according to below rules:
- VNT-BUMPM12 must be adjusted to be horizontal
- Public is not allowed within a safety area which radius is equal or higher than
assembly height.
- It is highly recommended to secure the system to a fix point located at the back of the
stack.
Procedure
- Set the bumper on the ground so that front with front direction indicated by side arrows
- Insert VNT-GSTKM10M12L and/or VNT-GSTKM10M12S guides into bumper front and rear center
slots
IMPORTANT
If bottom GEO M102 angle is negative, VNT-GSTKM10M12L must be connected at the
front and VNT-GSTKM10M12S at the back
If bottom GEO M12 angle is positive, VNT-GSTKM10M12S must be connected at the
front and VNT-GSTKM10M12L at the back
- Lock VNT-GSTKM10M12L and/or VNT-GSTKM10M12S into bumper with VNT-BUMPM12 quick
release pin 1240.
