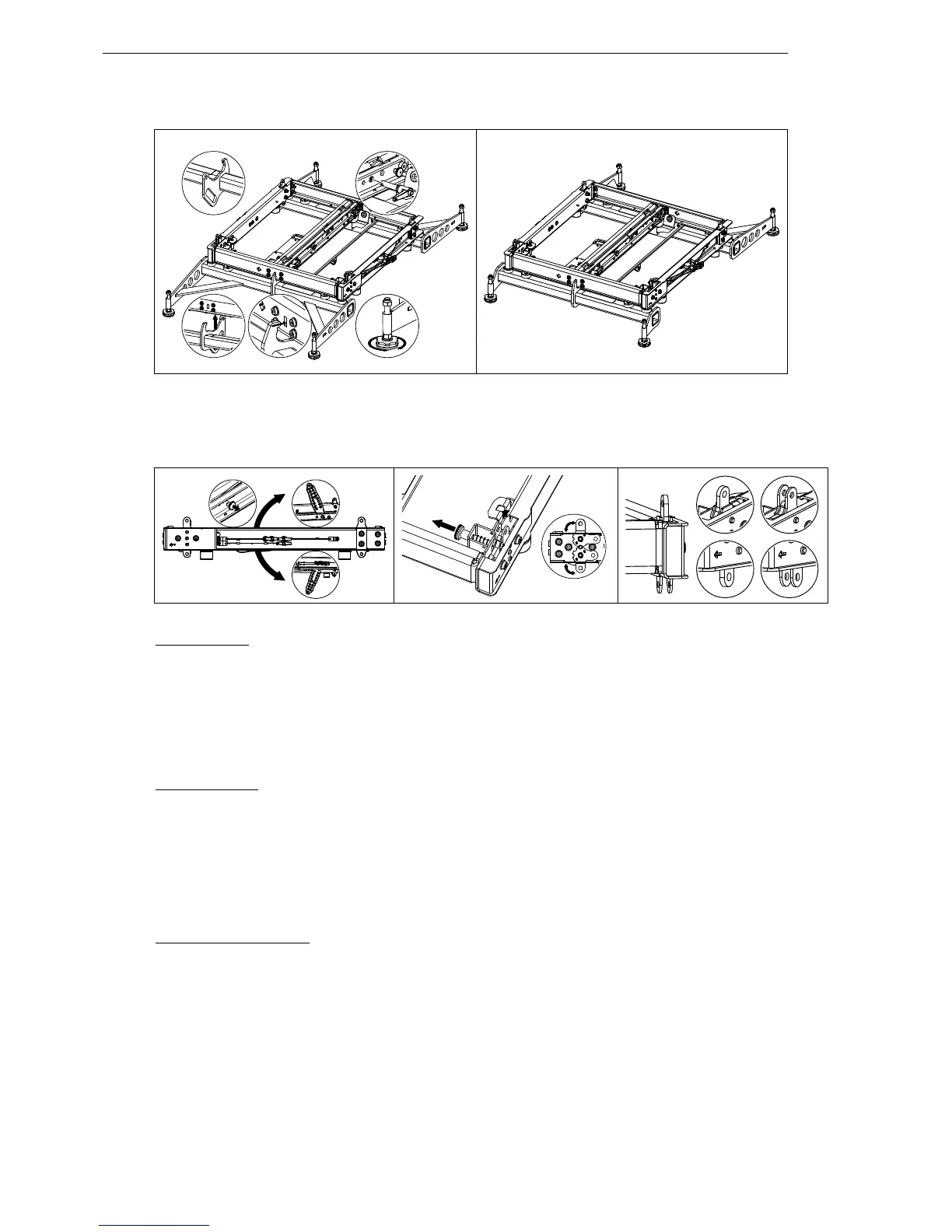

Page 36/90 GEO M12 HARDWARE SETUP PROCEDURE
- Adjust feet height so that bumper is horizontal
- Pull latch to release the VNT-BUMPM12 center link bar, and rotate it upwards
- Pull the bumper front latches, rotate the upper link so that connection points are single leg (GEO M12
Left) or double leg (GEO M12 Right) and release the latches to lock in required position
GEO M12 Left
- Release first GEO M12 link bar, and set AutoRig in automatic lock position
- Position first GEO M12 on top of the bumper, front points will lock automatically
- Connect the bumper link bar (selection from -12° to +12° in 3° steps) to GEO M12 rear rigging plate
(hole marked “bumper”) Lock with the quick release pin BL0820.
GEO M12 Right
- Release first GEO M12 link bar.
- Position first GEO M12 on top of the bumper and lock it to the bumper with the 2 BL820 quick release
pins.
- Connect the bumper link bar (selection from -12° to +12° in 3° steps) to GEO M12 rear rigging plate
(hole marked “bumper”) Lock with the quick release pin BL0825.
Subsequent GEO M12s
- Position second GEO M12 cabinet with AutoRig
TM
in automatic lock position, and lock front points to
first GEO M12
- Unlock GEO M12 link bar
- Pull the latch to engage the guide in GEO M12 rear slot.
- Adjust the angle by inserting quick release pin BL820 in proper hole.
