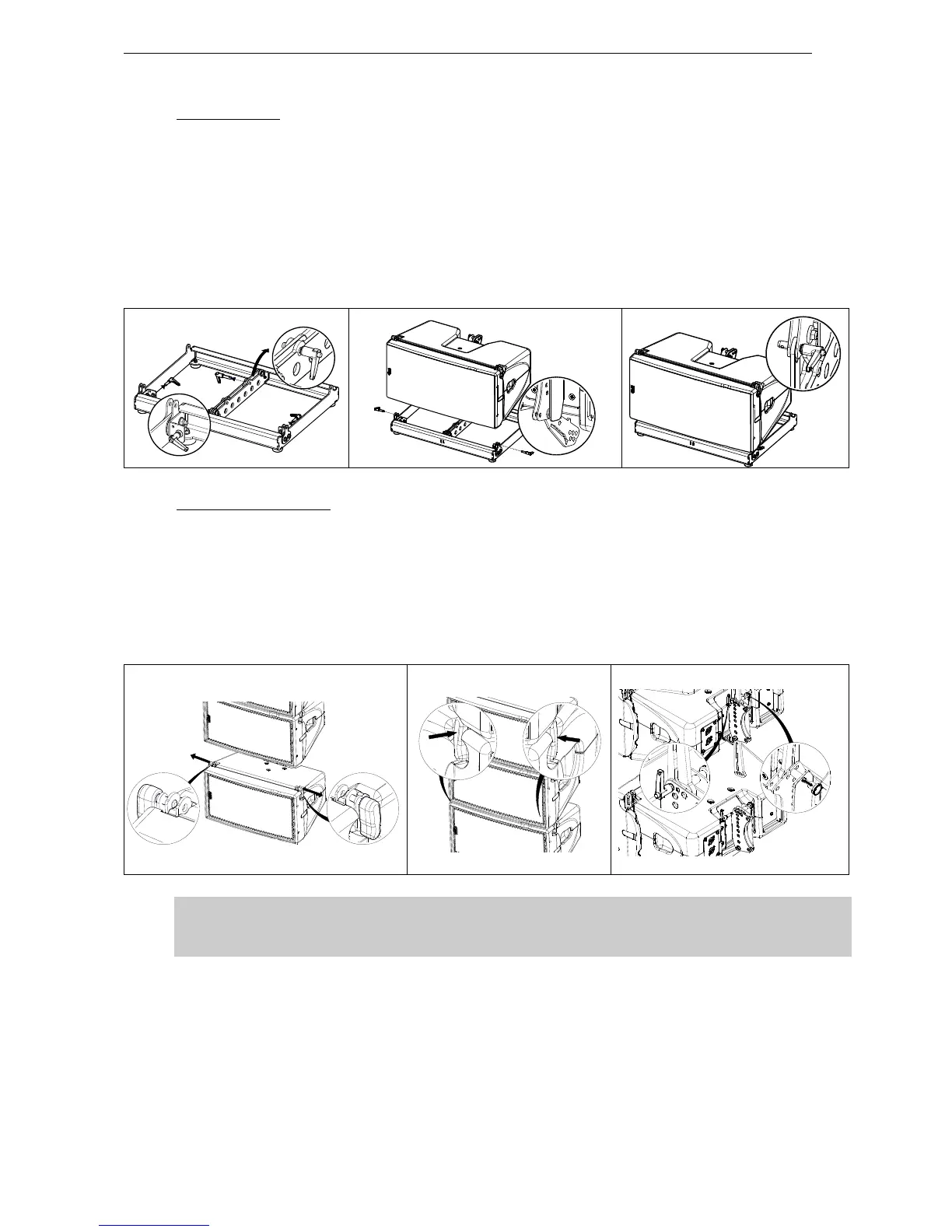

GEO M12 HARDWARE SETUP PROCEDURE Page 33/90
GEO M12 Right
- Set the bumper on the ground so that front is on the “A” hole side
- Remove the two BL820 quick release pins from their side storage position, and the BL825 quick
release pin of rear GMT-LBUMPM12 link bar.
- Release GEO M12 link bar.
- Position first GEO M12 on top of the bumper and lock it to the bumper with the 2 BL820 quick release
pins.
- Connect the bumper link bar (selection of 0° / +3°) to GEO M12 rear rigging plate (hole marked
“bumper”) Lock with the quick release pin BL0825.
Subsequent GEO M12s
- Position second GEO M12 cabinet with AutoRig
TM
in automatic lock position, and lock front points to
first GEO M12
- Unlock GEO M12 link bar
- Pull the latch to engage the guide in GEO M12 rear slot.
- Adjust the angle by inserting quick release pin BL820 in proper hole.
- Connect subsequent GEO M12 cabinets as with second.
IMPORTANT
Ensure that bumper quick release pins are properly locked into GEO M12, and that all
AutoRig
TM
and rear pins are locked
