Next Wave CNC SHARK - Wiring Connections to Terminals

DRAFT 3 06 09 2021
8

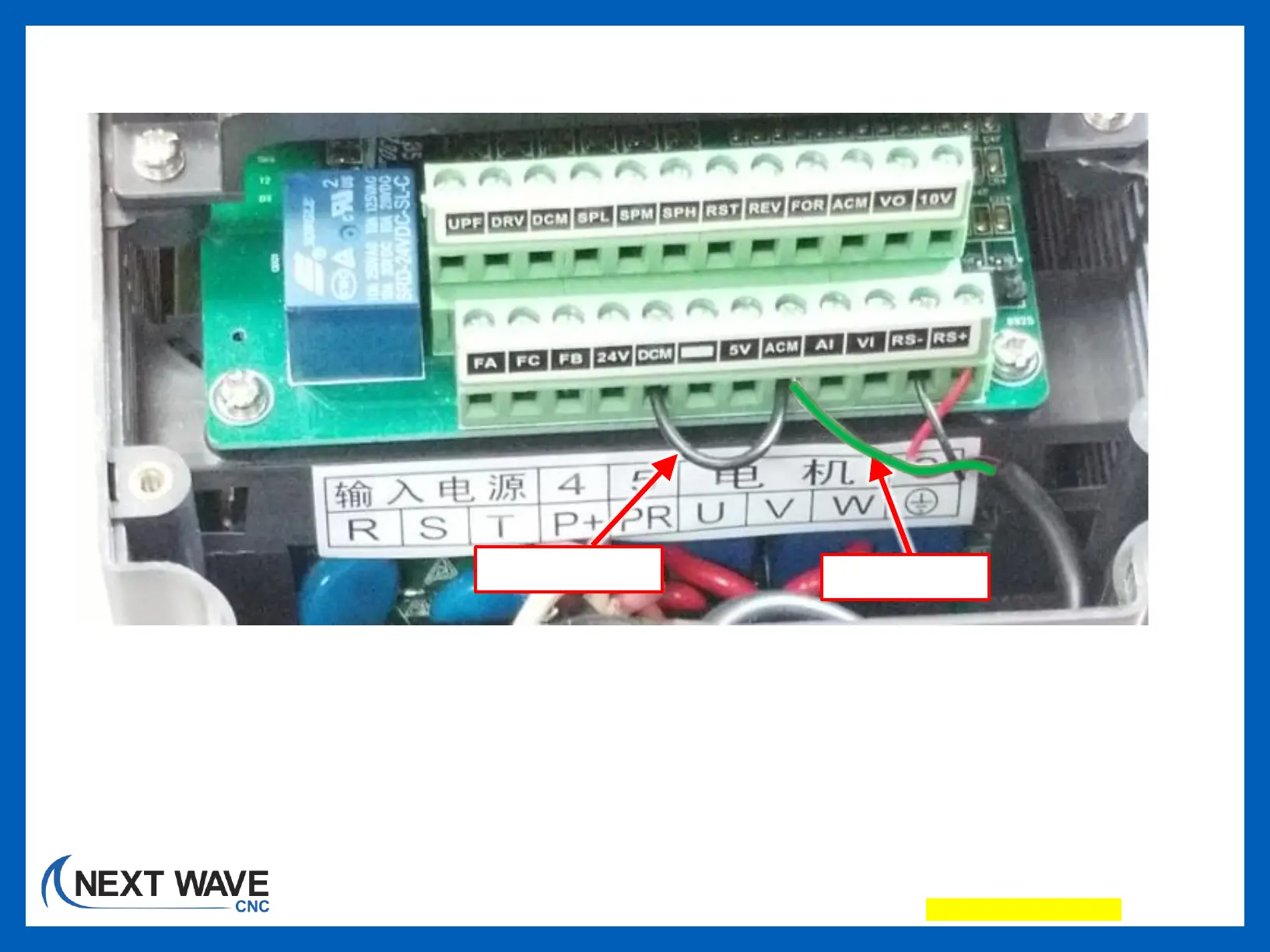

6. Connect the jumper wire between terminals DCM and ACM
7. Connect green wire to terminal ACM
8. Connect black wire to RS-
9. Connect red wire to RS+
10. Tighten terminal connections and check that the new wires can’t be pulled out.
Jumper wire
Green wire
